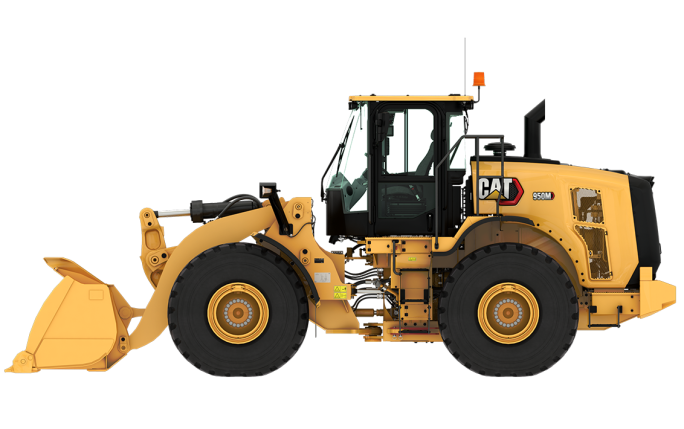

The 950M Wheel Loader is equipped with built-in proven technologies to help meet your expectations for productivity and fuel efficiency. This wheel loader offers a standard lock up clutch torque converter, standard manual front locking differential axles, and improved standard ride control to significantly improve your fuel economy, performance and ergonomics. This machine deliversthe reliability, durability, and versatility you’ve come to expect from a Cat machine.
Net Power - ISO 9249 250 HP
Operating Weight 42357 lb
Bucket Capacities 2.5-9.2 m³ (3.3-12.0 yd³)
Emissions Tier 4/Stage V
Displacement 428in³
Emissions Tier 4/Stage V
Engine Model Cat C7.1
Maximum Net Power - 2,100 rpm - ISO 9249 230HP
Maximum Net Power - 2,100 rpm - ISO 9249 - Metric 232HP
Maximum Net Power - 2,100 rpm - SAE J1349 230HP
Maximum Net Torque - 1,300 rpm 858ft·lbf
Maximum Power - 2,100 rpm - ISO 14396 249HP
Maximum Power - 2,100 rpm - ISO 14396 - Metric 253HP
Maximum Power - 2,100 rpm - SAE J1995 250HP
Net Power - ISO 9249 250HP
Note The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
Peak Gross Torque - 1,300 rpm - ISO 14396 908ft·lbf
Peak Gross Torque - 1,300 rpm - SAE J1995 911ft·lbf
Note Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link, manual diff lock/open axles (front/rear), power train guard, secondary steering,
Operating Weight 42357lb
Bucket Capacities 2.5-9.2 m³ (3.3-12.0 yd³)
Centerline of Rear Axle to Edge of Counterweight 6.33ft
Centerline of Rear Axle to Hitch 5.5ft
Ground Clearance 1.17ft
Height - Top of Exhaust Pipe 11.17ft
Height - Top of Hood 8.83ft
Height - Top of ROPS 11.33ft
Hinge Pin Height at Carry Height 2.08ft
Hinge Pin Height at Maximum Lift 13.25ft
Lift Arm Clearance at Maximum Lift 10.75ft
Maximum Width - Over Tires - Loaded 9.25ft
Note All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Overall Length - Without Bucket 22.67ft
Rack Back - Carry Height 49 degrees
Rack Back - Maximum Lift 59 degrees
Rack Back at Ground 36 degrees
Tread Width 7ft
Wheel Base 11ft
Breakout Force 40690lbf
Note (1) For a machine configuration as defined under "Weight."
Note (2) Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Static Tipping Load - Full 40° Turn - No Tire Deflection 25926lb
Static Tipping Load - Full 40° Turn - With Tire Deflection 24262lb
Hydraulic Cycle Time - Total 8.9s
Implement Pump Type Variable Axial Piston
Implement System - Maximum Operating Pressure 4250psi
Implement System - Maximum Pump Output at 2,150 rpm 76gal/min
Centerline of Rear Axle to Edge of Counterweight 6.4ft
Centerline of Rear Axle to Hitch 5.6ft
Ground Clearance 1.2ft
Height - Top of Exhaust Pipe 11.2ft
Height - Top of Hood 8.1ft
Height - Top of ROPS 11.4ft
Hinge Pin Height at Carry Height 2.1ft
Hinge Pin Height at Maximum Lift 13.3ft
Maximum Width over Tires (loaded) 9.3ft
Note All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Overall Length (without bucket) 22.8ft
Tread Width 7ft
Wheel Base 11ft
Forward - 1 4.3mile/h
Forward - 2 7.5mile/h
Forward - 3 12mile/h
Forward - 4 16mile/h
Forward - 5 24.5mile/h
Note Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.
Reverse - 1 4.3mile/h
Reverse - 2 7.5mile/h
Reverse - 3 16mile/h
Cooling System 15.6gal (US)
Crankcase 5.8gal (US)
DEF Tank 4.2gal (US)
Differential - Final Drives - Front 11.4gal (US)
Differential - Final Drives - Rear 11.4gal (US)
Fuel Tank 72.6gal (US)
Hydraulic Tank 33gal (US)
Transmission 11.4gal (US)
Centerline of Rear Axle to Edge of Counterweight 6.33ft
Centerline of Rear Axle to Hitch 5.5ft
Ground Clearance 1.17ft
Height - Top of Exhaust Pipe 11.17ft
Height - Top of Hood 8.83ft
Height - Top of ROPS 11.33ft
Hinge Pin Height at Carry Height 2.58ft
Hinge Pin Height at Maximum Lift 14.83ft
Lift Arm Clearance at Maximum Lift 11.92ft
Maximum Width - Over Tires - Loaded 9.25ft
Note All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Overall Length - Without Bucket 24.58ft
Rack Back - Carry Height 49 degrees
Rack Back - Maximum Lift 59 degrees
Rack Back at Ground 40 degrees
Tread Width 7ft
Wheel Base 11ft
Note (1) *Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note (2) **For machines in European Union countries and in countries that adopt the EU Directives.
Note (3) ***European Union Directive 2000/14/EC as amended by 2005/88/EC.
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)** 104 LWA***
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)** 69dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008) 107dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013) 75 dB(A)*
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) 70dB(A)
Emissions Tier 4/Stage IV
Bucket Range 2.5-9.2 m³ (3.3-12.0 yd³)
Standard and optional equipment may vary. Consult your Cat dealer for details.
Engine, Cat C7.1 meets Stage IV emission standards
Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF) and Diesel Exhaust Fluid (DEF) tank and pump
Fuel priming pump (electric)
Fuel/water separator
Precleaner, engine air intake
Economy Mode (selectable)
Transmission, automatic countershaft power shift (5F/3R)
Torque converter, locking clutch with free wheel stator
Switch, transmission neutralizer lockout
Axles, manually actuated differential lock fron taxle, open differential rear axle
Axles, ecology drains
Brakes, full hydraulic enclosed wet-disc with Integrated Braking Systen (IBS)
Brake wear indicators
Parking brake, disc and caliper
Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
Radiator, high debris with wide fin spacing
Cab, pressureized and sound suppressed (ROPS/FOPS)
Viscous mounts
Multi-funtion 18 cm color LCD touch-screen display for rear vision camera image display (reverse travel activated) and machine status, setting and health parameters
EH controls, SAL (single axis lever) lift and tilt function
Steering, steering wheel
Radio ready (entertainment) includes antenna, speakers and converter (12V, 10-amp)
Air conditioner, heater, and defroster (auto temp and fan)
EH parking brake
Beverage holders (2) with storage compartment for cell phone/MP3 player
Bucket/work tool function lockout
Coat hook (2)
Cab air filter
Ergonomic cab access ladders and handrails
Horn, electric
Light, two dome (cab)
Mirrors, rearview external with integrated spot mirrors
Post mounted membrane 16 switch keypad
2 receptables, 12V
Seat, Cat Comfort (cloth) air suspension
Seat belt, 51 mm retractable, with indicator
Sun visor, front
Wet-arm wipers/washers front and rear, intermittent front wiper
Window, sliding (left and right sides)
Cab tie-off
With following gauges: Speedometer/tachometer; Digital gear range indicator; Diesel Exhaust Fluid (DEF) level; Temperature: engine coolant, hydraulic oil, transmission oil; Fuel level
With following warning indicators: Temperature: axle oil, engine intake manifold; Pressure: engine oil, fuel pressure hi/low, primary steering oil, service brake oil; Battery voltage hi/low; Engine air filter restriction; Hydraulic oil filter restriction; Hydraulic oil low; Parking brake; DEF low level; Transmission filter bypass
Batteries (2), maintenance free 1,400 CCA
Ignition key; start/stop switch
Starter, electric, heavy duty
Starting and charging system (24V)
Lighting system: Four halogen work lights (cab mounted); Two LED stop, turn, tail lights; Two halogen roading lights (with signals); Two halogen rear vision lights (hood mounted)
Alarm, back-up
Alternator, 145-amp brushed
Main disconnect switch
Receptacle start (cables not included)
Secondary steering
Link technologies: Product Link
Detect technologies: rear vision camera
Linkage, optimized Z-bar, cast crosstube/tilt lever
Kickout, lift and tilt, automatic (adjustable in cab)
Hydraulic system, load sensing
Steering, load sensing
Ride control, 2V
Remote diagnostic pressure taps
Hoses, Cat XT™
Couplings, Cat O-ring face seal
Hydraulic oil cooler (swing out)
Oil sampling valves
Premixed extended life coolant with freeze protection to -34° C
Hood, non-metallic power tilting
Service centers (electrical and hydraulic)
Auto idle shutdown
Fenders with mud-flap/rear with extension
Ecology drains for engine, transmission, and hydraulics
Grill, airborne debris
Filters: fuel, engine air, engine oil, hydraulic oil, transmission
Fuel cooler
Grease zerks
Hitch, drawbar with pin
Precleaner rain cap
Sight gauges: engine coolant, hydraulic oil, and transmission oil level
Toolbox
Vandalism protection caplocks
Standard and optional equipment may vary. Consult your Cat dealer for details.
Axles: Automatic front/rear differential locks; Axle oil cooler; Seal guards
Fan, VPF (variable pitch fan), automatic and manual control
Radiator, high debris with wider fin spacing
Door, remote opening system
Cover, HVAC metallic
EH controls, joystick lift and tilt - Additional roller switch for 4th function
EH controls, joystick lift and tilt - Additional integrated roller switched for 3rd and 4th functions
Filter, carbon fresh air
Mirrors, heated rearview external with integrated spot mirrors
Precleaner, HVAC
Precleaner, HVAC (RESPA)
Radio, AM/FM/CD/USB/MP3 Bluetooth with Satellite Sirius and XM
Radio, CB ready
Seat, heated air suspension
Seat belt, 76 mm (3 in) retractable, with indicator
Steering, EH wheel with directional FNR shifter and gear selector - Additional FNR with implement controls
Roof, metallic
Steering, secondary
Sun visor, rear
Windows, rubber mounted
Windows, with front guard
Windows, with heavy duty front guard
Windows, with full guards front, rear and sides
Four additional auxiliary halogen cab mounted work lights or
Two additional auxiliary front HI LED and two additional auxiliary rear LED cab mounted work lights with 2 LED work lights in the radiator grill and LED front turn signals also includes replacement of the standard four halogen cab mounted work lights with four LED work lights (standard offering and only roading light available is the halogen roading light)
Warning amber strobe beacon
Reversing strobes
External seat belt indicator light
Speed limiter - 20 km/h (Europe only)
Cold start - 120V
Cold start - 240V
Link technologies: VIMS™
Payload technologies: Advanced Productivity subscription; Cat Production Measurement 2.0; Printer; Aggregate Autodig
Detect technologies: Cat Rear Object Detection
Machine Security System
Fusion quick coupler
Performance Series buckets
Millyard forks
Grapple forks
Logging forks
Log and lumber forks
Pallet forks
Millyard pole forks
Woodchip buckets
High dump buckets
3rd function with Ride Control
4th function with Ride Control
Premixed extended life coolant with freeze protection to -50° C (-58° F)
Cat Autolube System
Fenders, roading
Guard, power train
Oil change, high speed engine
Precleaner, turbine
Precleaner, trash
Wheel chocks
Low profile tires
Auto idle shutdown
Industrial & Waste
Forestry
Corrosion Resistance
