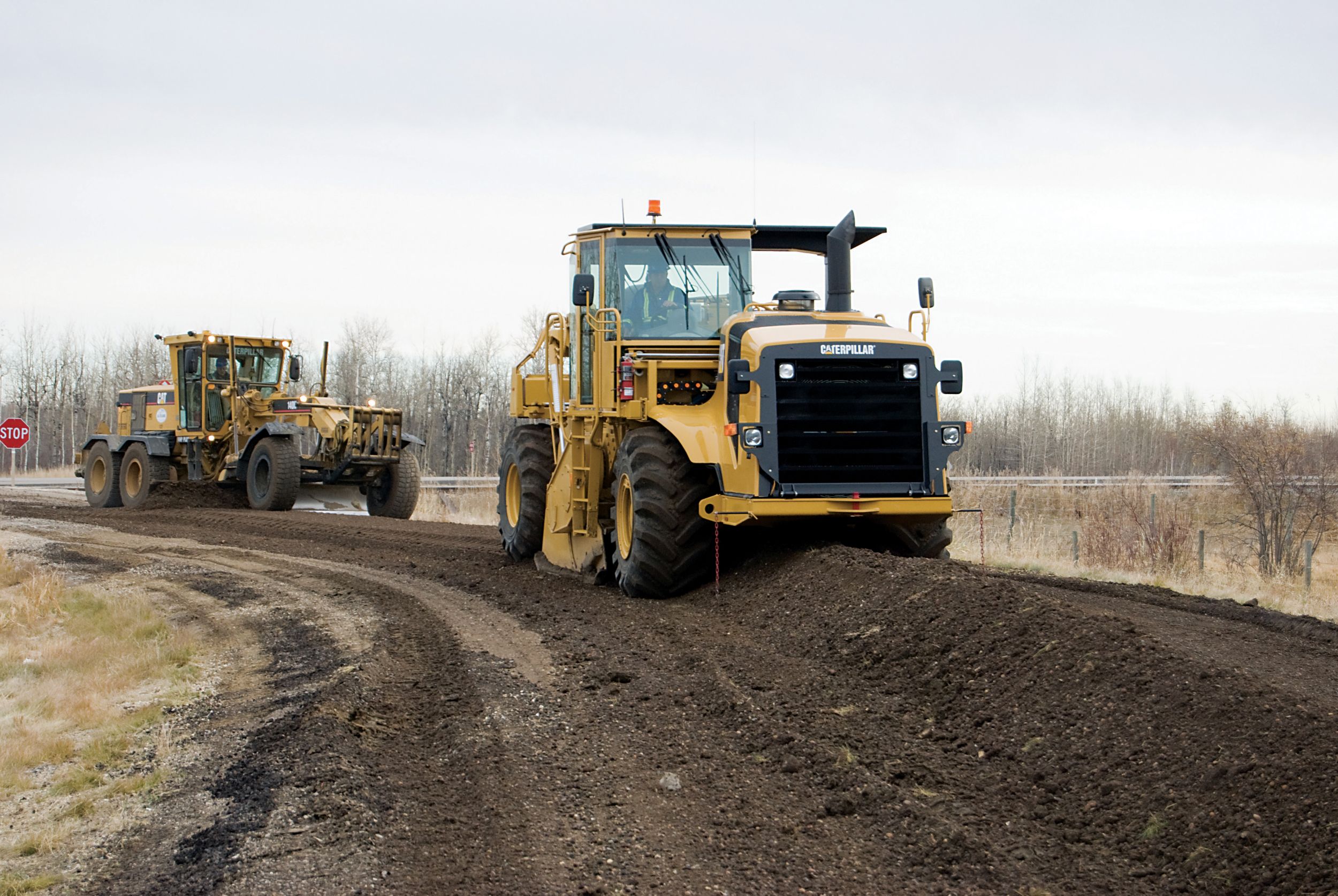

RM500 Road Reclaimer

The Cat RM500 features simple operation, a robust rotor drive system and a versatile design that make this durable industry workhorse an exceptional value. High production and excellent material quality go hand-in-hand with low operating and maintenance costs. Rotor and spray system options provide the ability to adapt to a wide range of full-depth reclamation and soil stabilization applications.

Download Product Brochure
Email/Share
Maximum Operating Weight
69518 lb
Cutting/Mixing Width
96 in
Gross Power
546 hp
Fuel Tank Capacity
279 gal (US)

Weights

  • Maximum Operating Weight 69518lb

  • Note (1) Maximum weight includes base machine, all options, ROPS, cab, coolant, lubricants, Universal 16 rotor, full fuel tank,full water tank and 75 kg (165 lb) operator.

  • Note (2) Operating weight includes base machine, no options, ROPS, cab, coolant, lubricants, Universal 16 rotor, 50% full fuel tank,50% full water tank and 75 kg (165 lb) operator

  • Operating Weight 62920lb

Operating Specifications

  • Cutting/Mixing Width 96in

  • Inside Turn Radius 14.2ft

  • Maximum Cutting/Mixing Depth 20in

  • Maximum Travel Speed 6.5mile/h

  • Note (1) Maximum cutting/mixing depth varies by rotor.

  • Rotor Drive 3-Speed Chain

  • Rotor Options Universal 16, Universal 18, Combination, Soil (Stabilization)

  • Rotor Speeds 110 / 152 / 205 rpm

Engine

  • Build Number 02A

  • Emissions U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V

  • Engine Model Cat® C15

  • Engine Power 539hp

  • Gross Power 546hp

Service Refill Capacities

  • Cooling Systems 18.5gal (US)

  • DEF Tank 12.2gal (US)

  • Engine Oil 13.7gal (US)

  • Fuel Tank Capacity 279gal (US)

  • Hydraulic Tank 59.2gal (US)

Sustainability

  • Recyclability 97%

Dimensions

  • Ground Clearance 19.9in

  • Length 33.83ft

  • Maximum Height 11.78ft

  • Wheel Base 21.33ft

  • Width 9.58ft

Standard Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • Adjustable armrests

  • Heated suspension seat

  • 180° rotating operating station

  • Audio-ready with speakers

  • Full width sliding cab with heat and air conditioning

  • Access ladder, right and left side

  • High visibility retractable seat belt

  • Mini-wheel steering control

  • Multifunction propel lever

  • Steering guides

  • LCD touch screen operator interface

  • Air to Air Aftercooler (ATAAC)

  • Dual element air cleaner with pre-cleaner

  • Extended life coolant with protection to -37 degrees C (-35 degrees F)

  • On-demand fan with auto-reversing function

  • Four steering modes

  • All-Wheel Drive

  • Electronic differential

  • Oil-bath brake system

  • Powertrain guard

  • 150 amp alternator

  • 24-volt charging system

  • Automotive-type fuse system

  • Remote start/charge receptacle

  • Two 1365 CCA maintenance-free batteries

  • Maintenance-free drive shafts

  • Self-lubricating roller chain and bearings

  • Shear disk driveline protection

  • Automatic Return-to-cut

  • Powershift 3-speed transmission

  • Three rotor speeds

  • Variable volume mixing chamber

  • Grouped filters with ground level access

  • Cat Product Link™ - Cellular

  • Remote access drains

  • Ports for Scheduled Oil Sampling (S·O·S℠)

  • Fluid level sight gauges

  • Toolbox

  • Back-up alarm

  • Remote cameras (front, rear and rear rotor chamber door)

  • Ground level emergency shutdown switch

  • Horn (front and rear)

  • ROPS

  • Platform handrails and guardrails

  • Mirrors

  • Halogen working lights

Optional Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • Cat Bio HYDO™ biodegradable hydraulic oil

  • CE certificate

  • Water spray system

  • Ultra Low-flow water spray system

  • Emulsion spray system

  • Folding telescoping push bar

  • Torque limiter driveline protection

  • Rotor - Universal 16

  • Rotor - Universal 18

  • Rotor - Combination

  • Rotor - Soil (Stabilization)

  • Material sizing breaker bar

  • Bolt-on counterweight - 1600 kg (3500 lb)

  • Additional toolbox

  • Roading lights

  • Folding LED safety beacon
