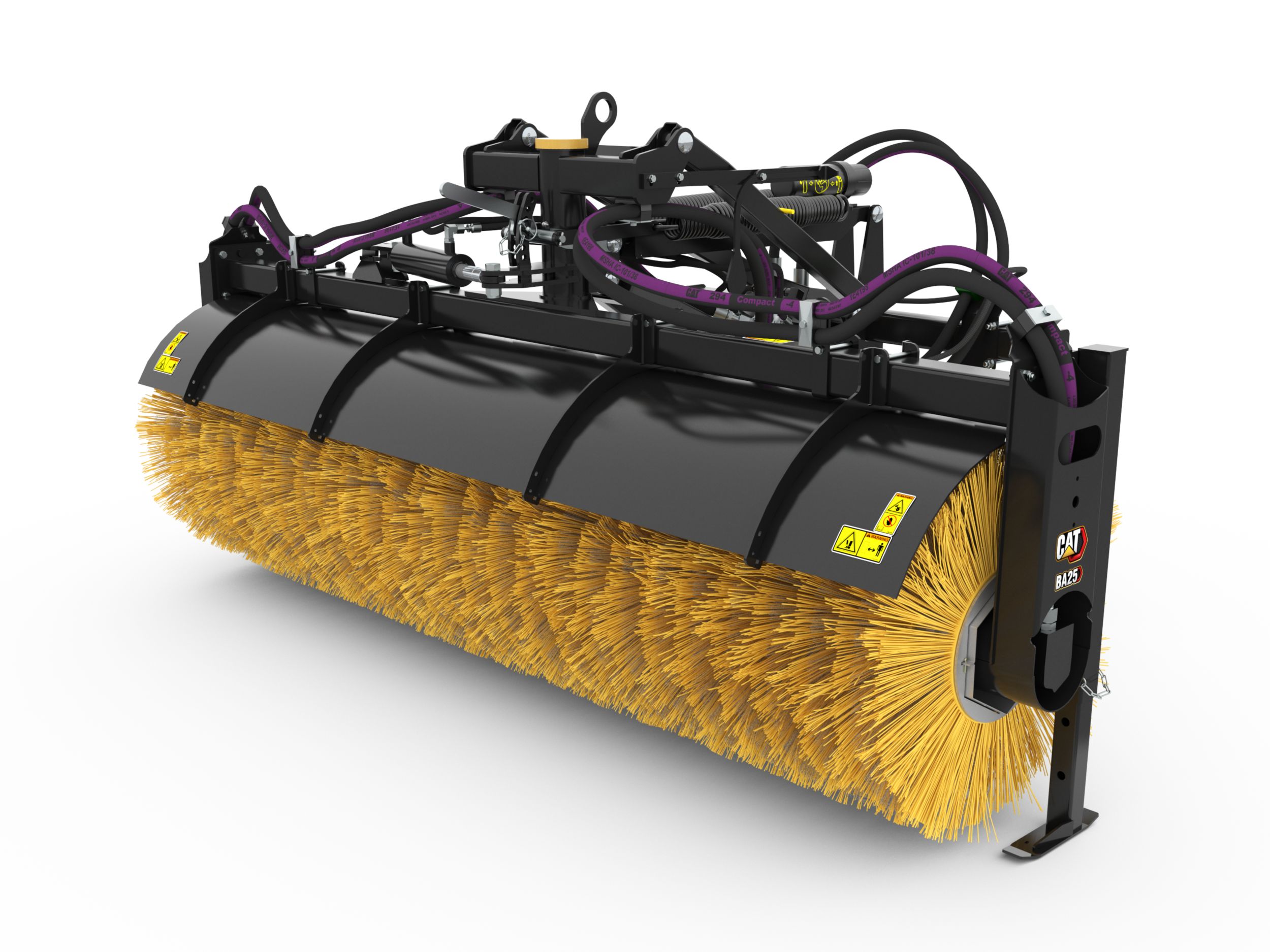

Hydraulic and Manual Cat® Angle Brooms for Skid Steer Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Overall Width 106 in
Sweeping Width 98.4 in
Brush Diameter 27.6 in
Required Hydraulics Standard Flow
Brush Diameter 27.6in
Brush Speed at Maximum Flow 385 RPM
Drive Method Direct Drive
Height 51.2in
Interface Type Requires Hook Group
Length 60.4in
Motor Displacement 11.9in³/rev
Optimal Hydraulic Flow 40-150 L/min (11-40 gpm)
Optimal Hydraulic Pressure 150-260 bar (2176-3771 psi)
Overall Width 106in
Overall Width - Angled (± 30 Degrees) 94.5in
Required Hydraulics Standard Flow
Sweeping Width 98.4in
Sweeping Width - Angled (± 30 Degrees) 86.6in
Voltage Type 24V
Weight 970lb
