PC306 XD High Flow XPS Cold Planer

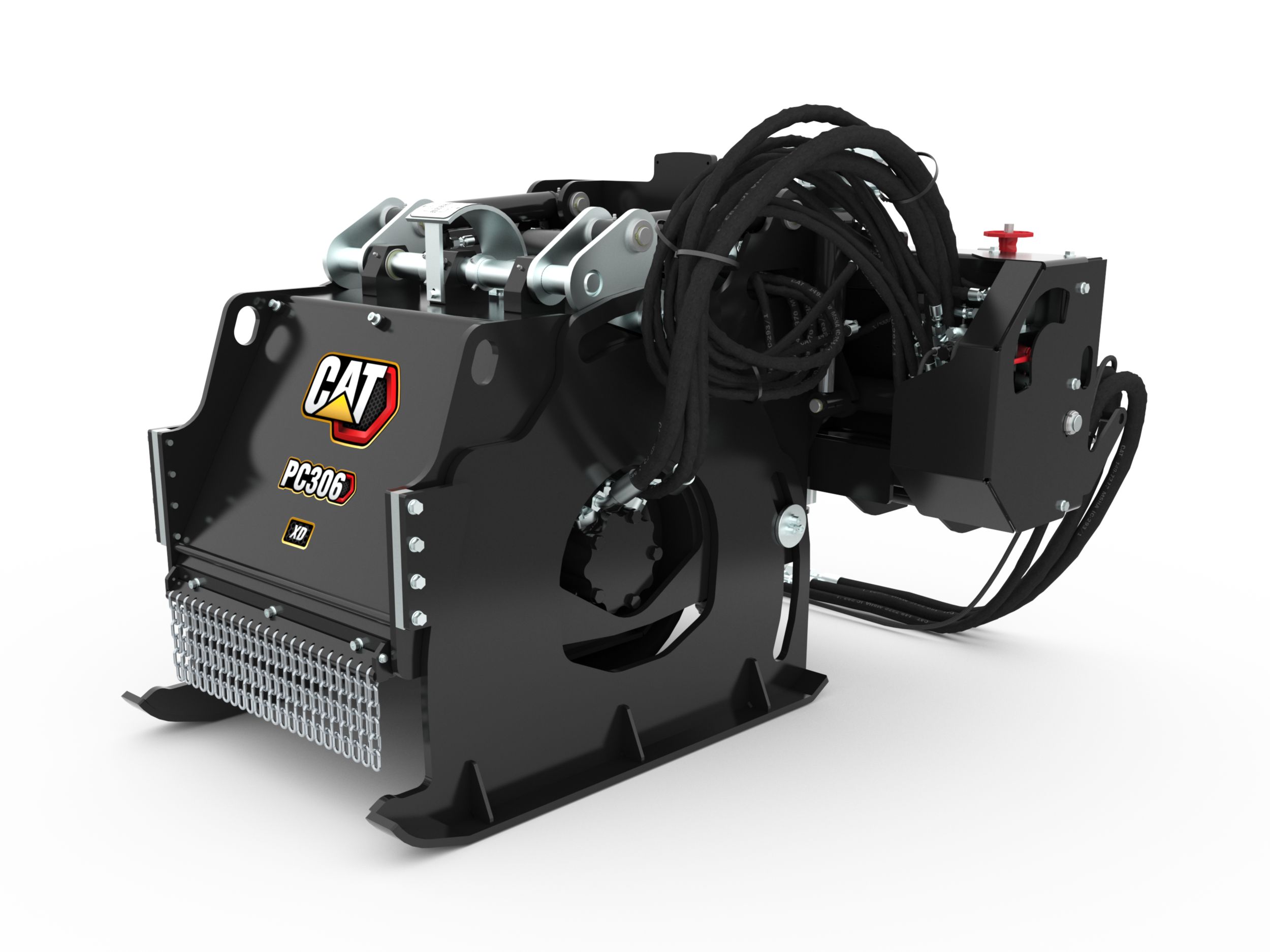

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.

  • Working Width 23.6 in

  • Maximum Cutting Depth 9.8 in

  • Required Hydraulics High Flow XPS

  • Overall Width 73.1 in

Request a quote

Product Specifications

Specifications

Dimensions

  • Conical Bits 48

  • Drum Speed 119 rpm

  • Maximum Cutting Depth 9.8in

  • Optimal Hydraulic Flow 98-125 L/min (26-33 gpm)

  • Optimal Hydraulic Pressure 230-280 bar (3300-4000 psi)

  • Overall Height 43.8in

  • Overall Length 62in

  • Overall Width 73.1in

  • Required Hydraulics High Flow XPS

  • Side Shift Travel 25.6in

  • Standard Bit Type All Purpose

  • Tilt Angle Range +/- 5.5 degrees

  • Weight 3108.5lb

  • Working Width 23.6in
