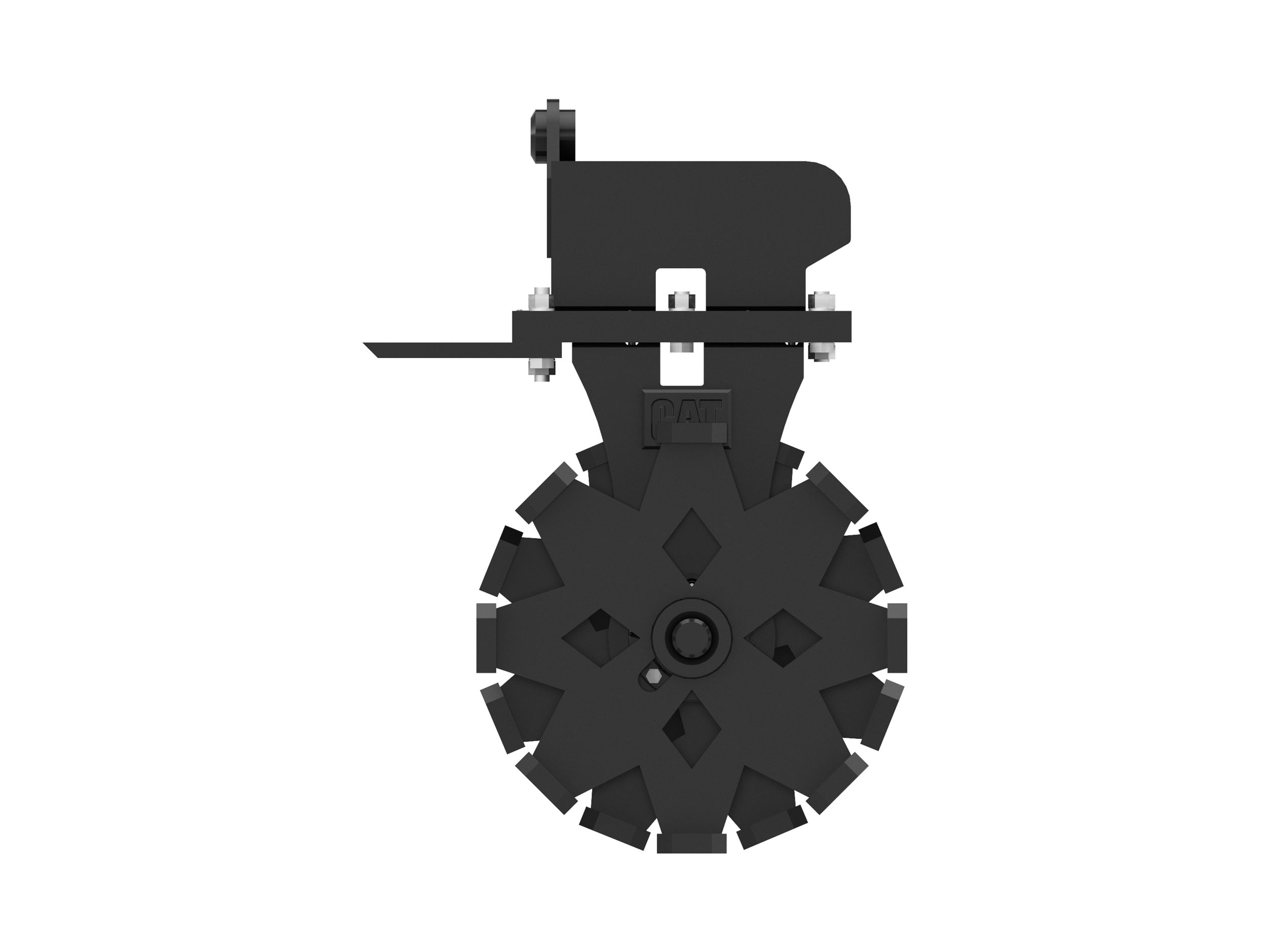

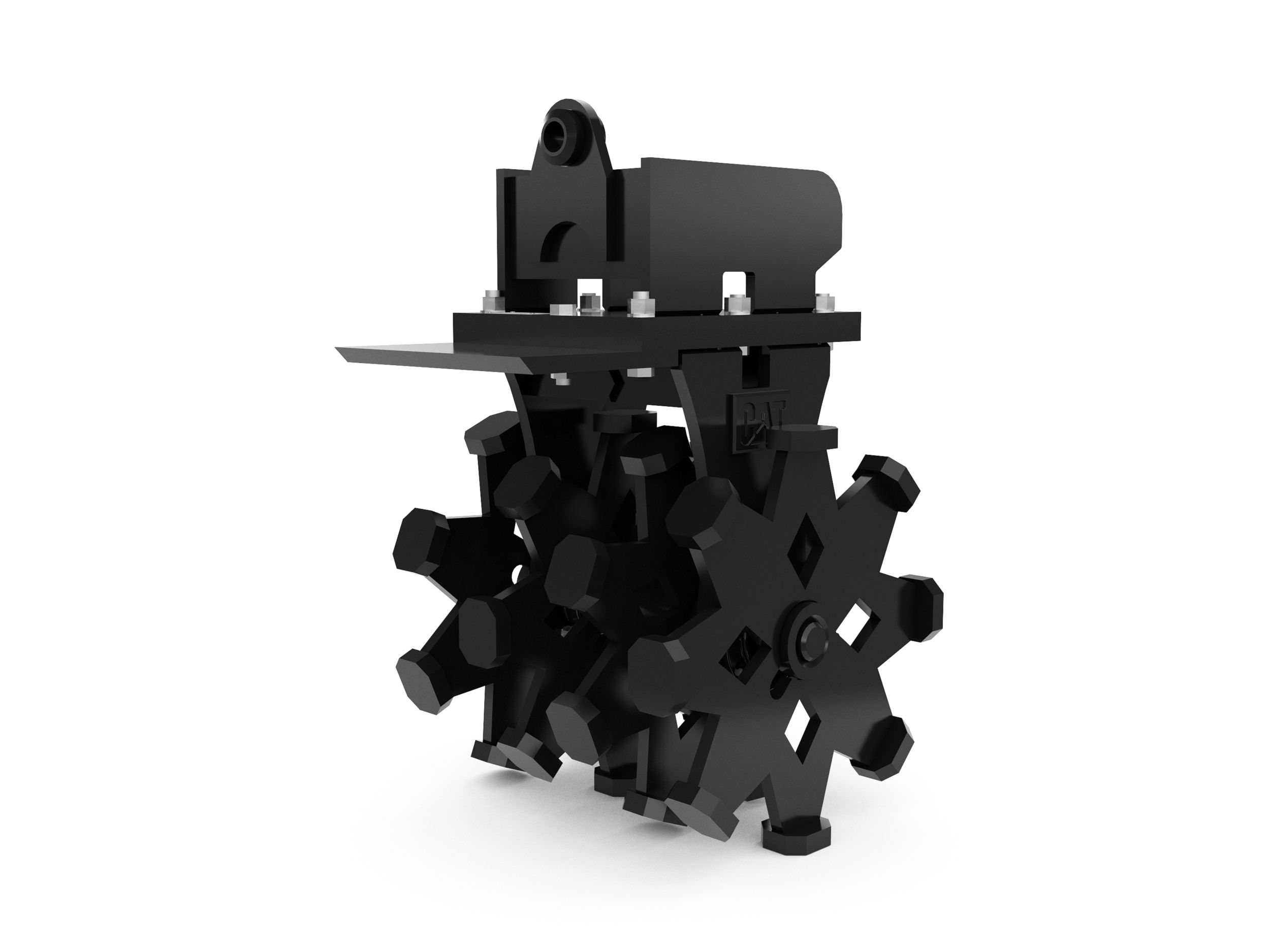

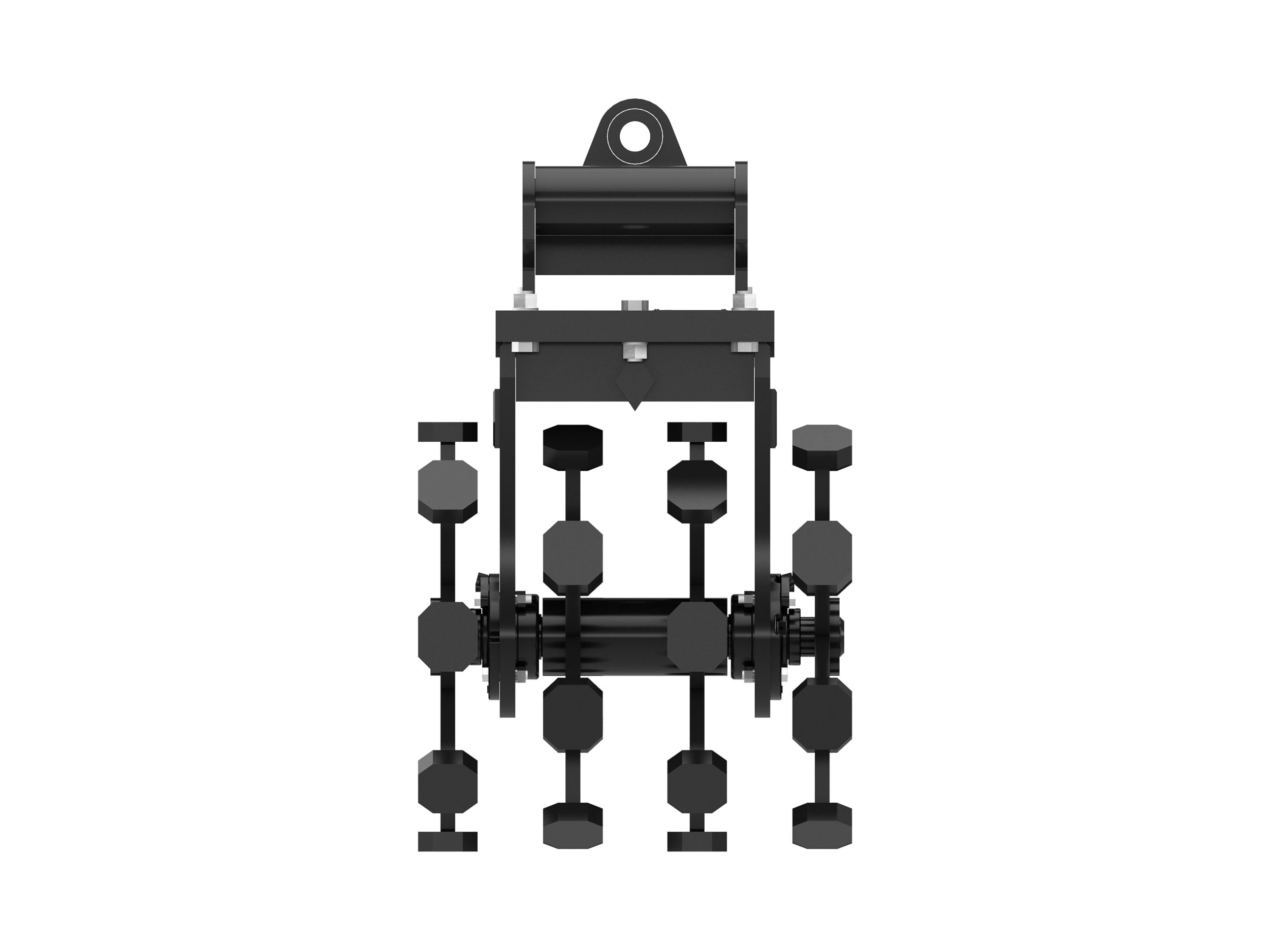

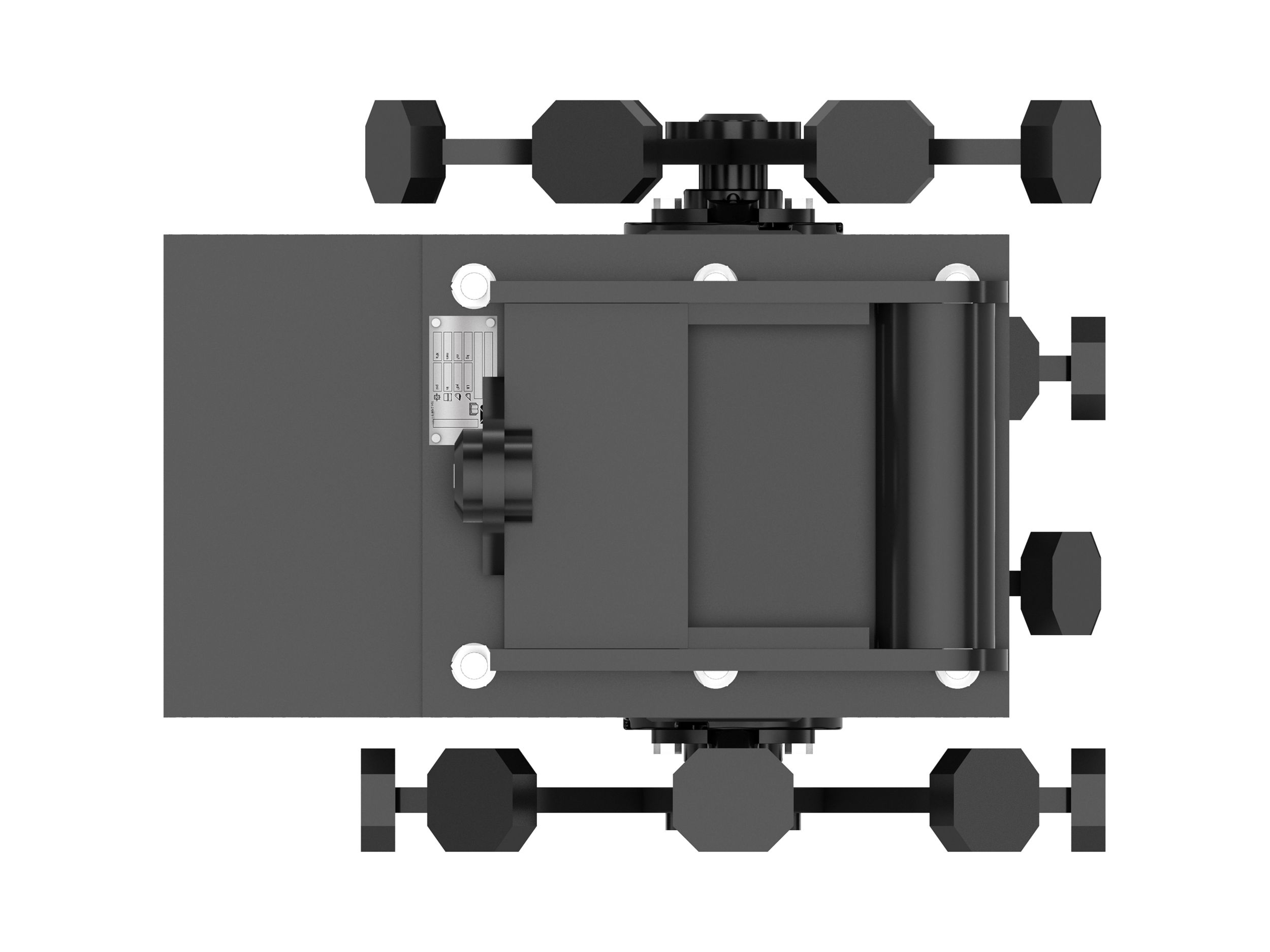

Cat® Compaction Wheels for Backhoe Loaders and Mini Excavators provide a low cost option for trench compaction. The wheels feature tapered roller bearings and tampered foot design with static pad rollers, to allow for smooth operation and achieving a high level of compaction. Six to ten passes are usually adequate to achieve compaction in normal soil conditions, dependent on the required compaction levels.
Compaction Width 21.8 in
Number of Wheels 4
Machine Class 1-8 Ton Mini Excavators
Number of Pads 32
Compaction Width 21.8in
Interface Type Pin Lock
Machine Class 1-8 Ton Mini Excavators
Number of Pads 32
Number of Wheels 4
Overall Height 37.8in
Overall Length 27.3in
Overall Width 21.8in
Weight 621.7lb
