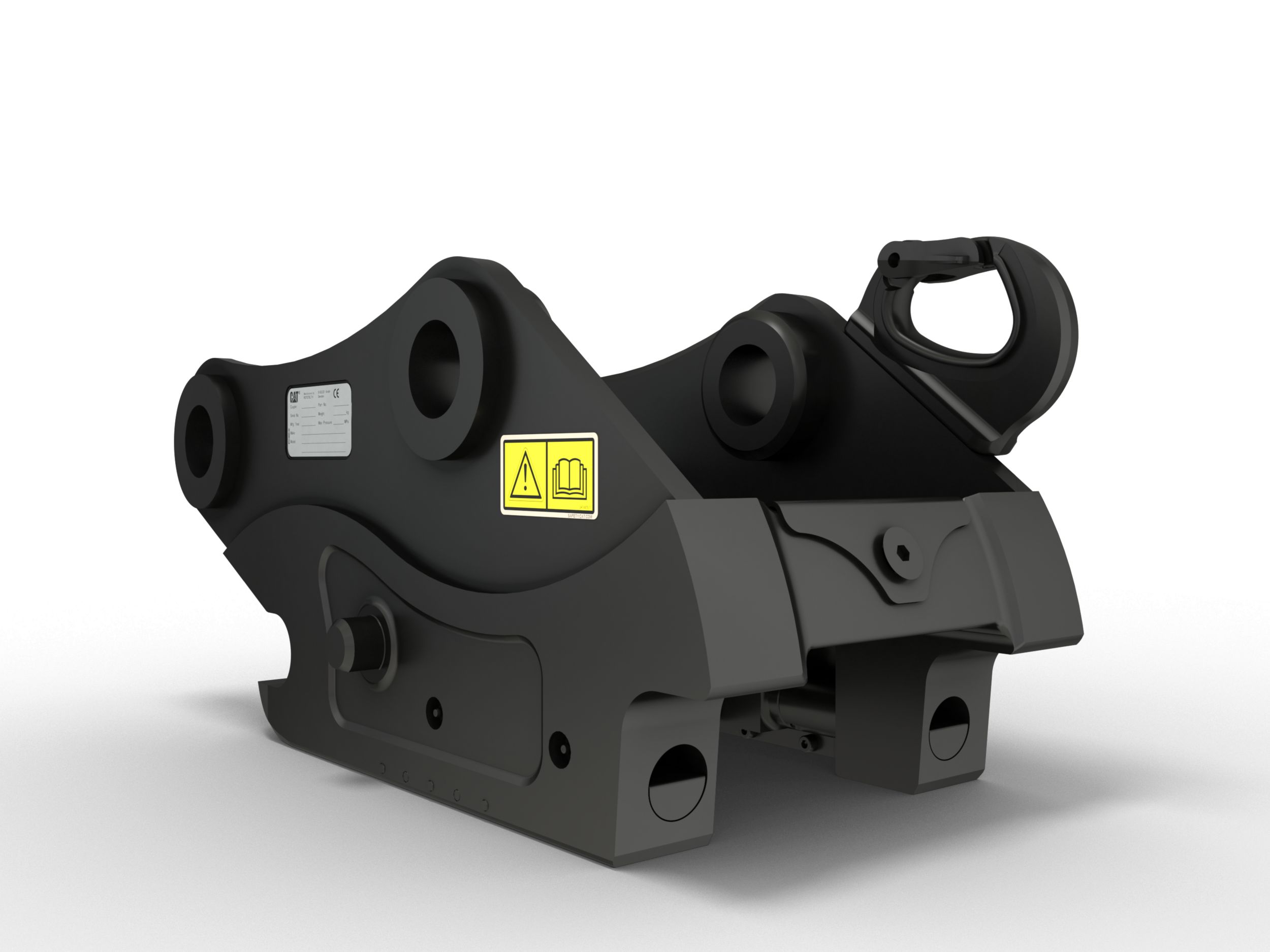

Cat® Hydraulic Connecting S Type Couplers connect to your machine's hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.
Machine Class 12-19
Height 15.4 in
Weight 331 lb
Maximum Operating Pressure 5076 psi
Machine Class 12-19
Height 15.4in
Length 29.3in
Width 16.3in
Lift Hook Capacity 5ton (US)
Weight 331lb
1/2" Hydraulic Connector Flow 21gal/min
1/2" Hydraulic Connectors (Optional) 1
3/4" Hydraulic Connector Flow 59gal/min
3/4" Hydraulic Connectors (Mounted) 2
3/8" Hydraulic Connector Flow 13gal/min
3/8" Hydraulic Connectors (Mounted) 2
Maximum Operating Pressure 5076psi
