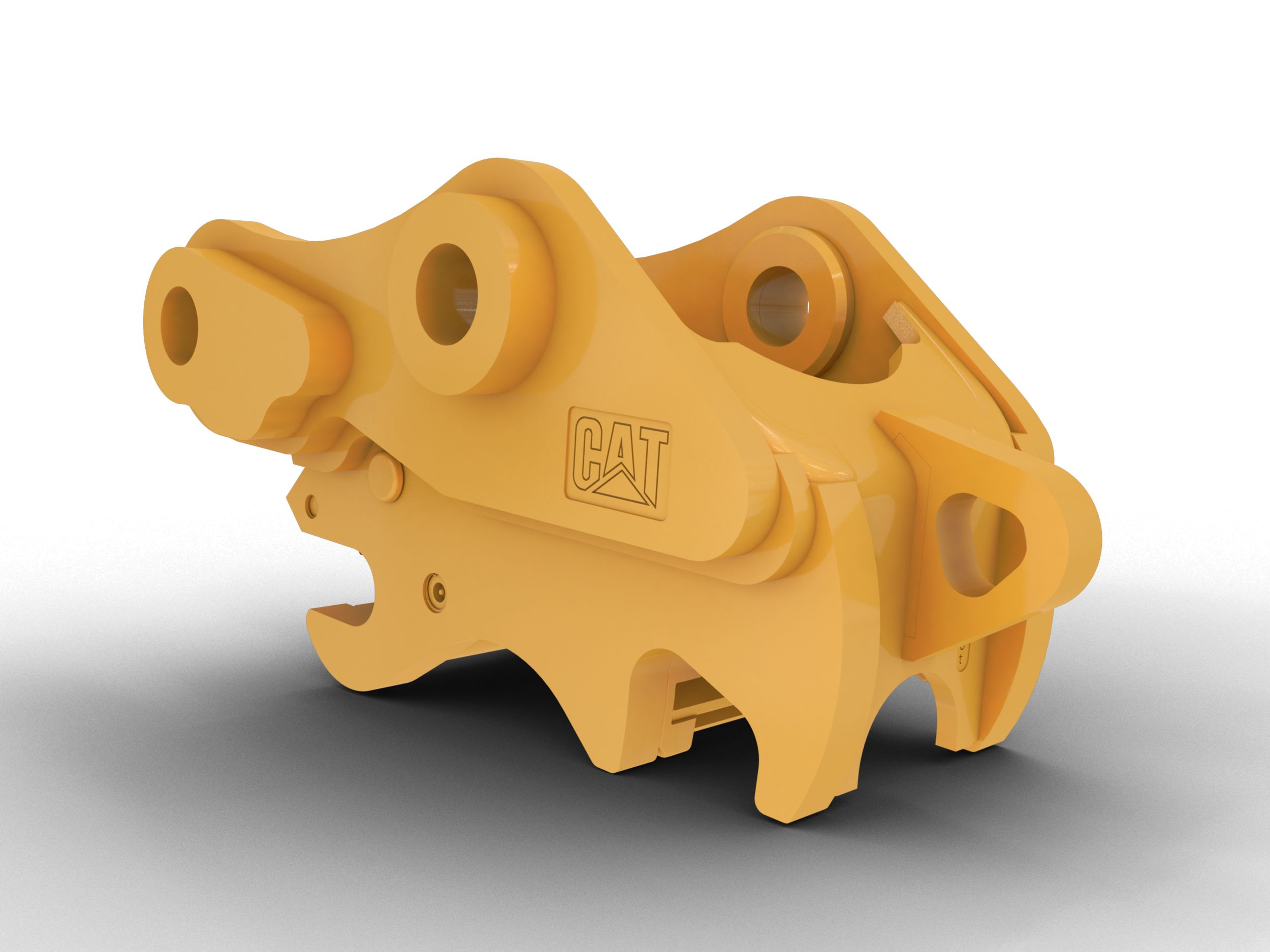

Cat® Pin Grabber Couplers bring another level of productivity and versatility to your operation. Add the ability to change attachments quickly and conveniently to your operation, while staying aligned to worldwide safety standards.
Minimum Carrier Weight 19 ton (US)
Maximum Carrier Weight 23 ton (US)
Weight 838 lb
Attachment Pin Diameter - Stick (Front) 3.15 in
Attachment Pin Diameter - Link (Rear) 3.15in
Attachment Pin Diameter - Stick (Front) 3.15in
Lifting Eye Working Load Limit 22046lb
Maximum Carrier Weight 23ton (US)
Minimum Carrier Weight 19ton (US)
Pin Spread - Maximum 19.29in
Pin Spread - Minimum 17.44in
Weight 838lb
Width - Attachment Interface 11.89in
Width - Machine Interface 20.16in
