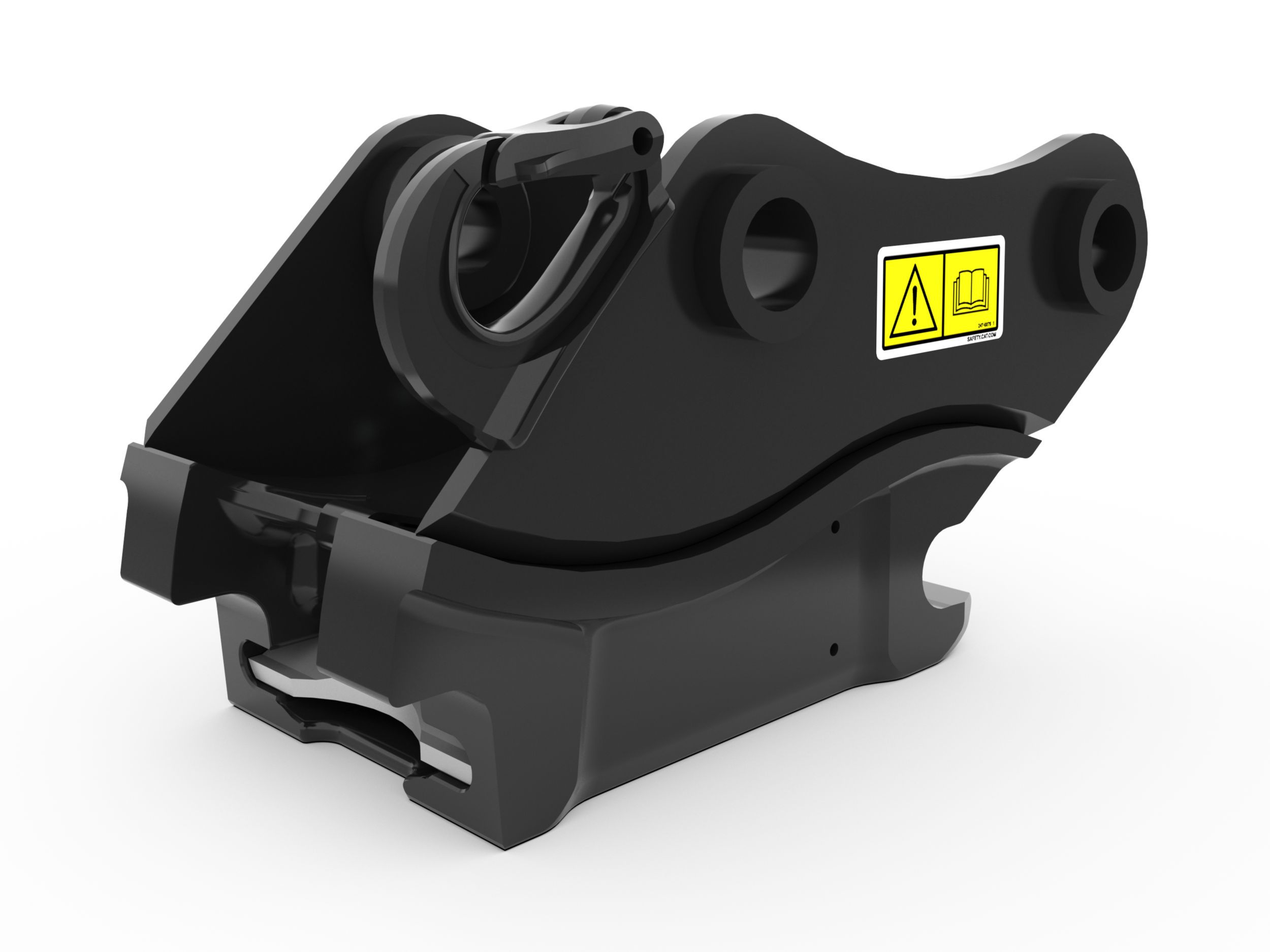

Cat® S Type Couplers for Mini Excavators are an optimal design for a dedicated quick coupler solution. Low offset, pin grabber ability, and a wedge type locking system ensures a tight fit, no attachment play during use. It also creates the solution to exchange work tools among different platforms and brands. In combination with the Tilt Rotate System that can be equipped with an S Type Coupler and the variety of different buckets offered, it provides a complete attachment solution for Mini Excavators. The coupler is designed with the highest safety standards and comes with a visible locking mechanism.
Weight 105.8 lb
Lifting Hook Capacity 4409.2 lb
Width 11.1 in
Overall Length 19.5 in
Coupler Type S-40 Pin Grabber
Interface Type Pin On
Lifting Hook Capacity 4409.2lb
Machine Class 5-6 Ton Mini Excavators
Maximum Operating Pressure 4351.1psi
Overall Height 10.7in
Overall Length 19.5in
Pin Diameter 1.8in
Required Hydraulics Dedicated Factory Installed
Weight 105.8lb
Width 11.1in
