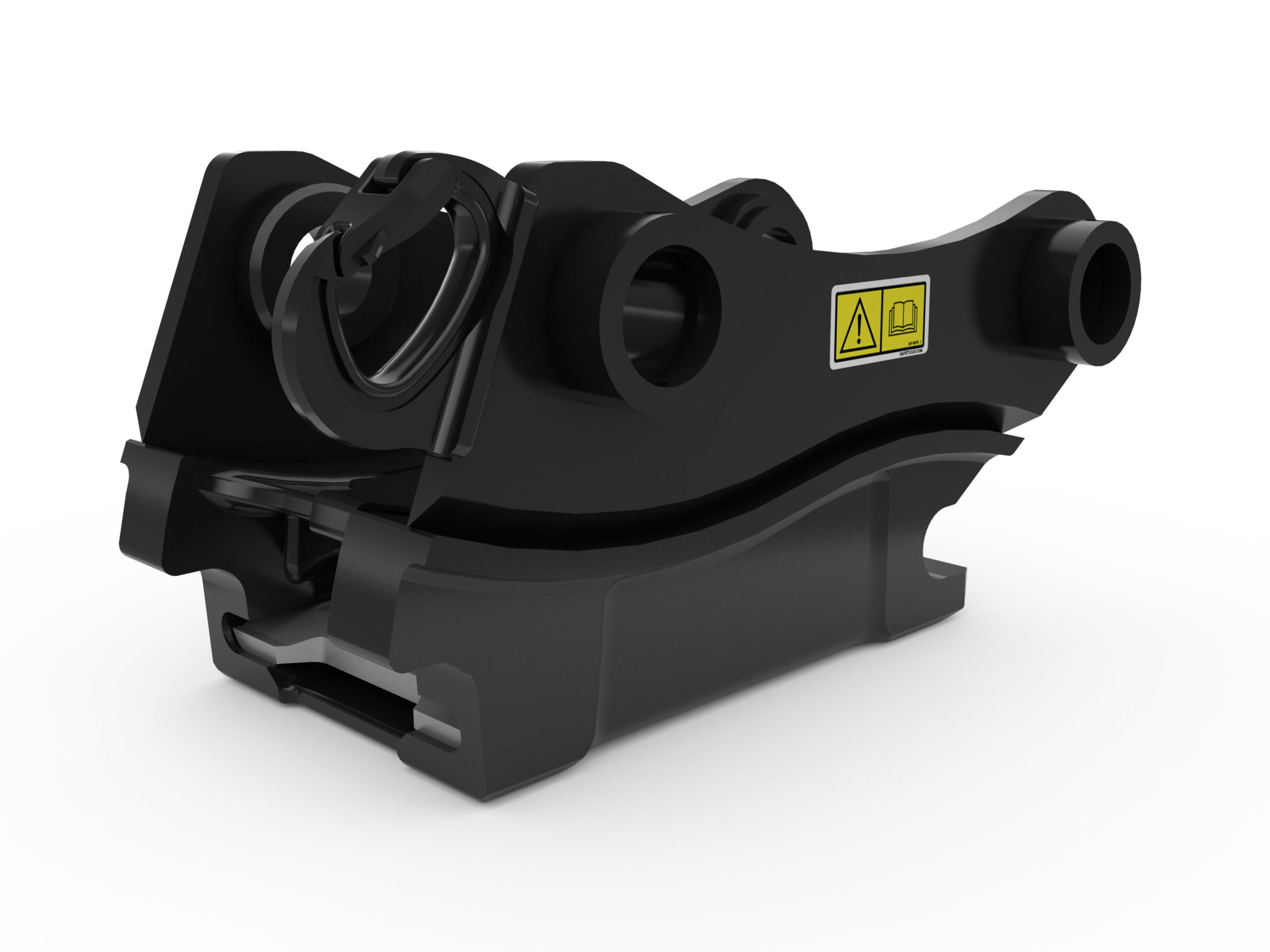

S-50 Pin Grabber S Type Coupler For 10 Ton Mini Excavators

S-50 Pin Grabber S Type Coupler For 10 Ton Mini Excavators

Cat® S Type Couplers for Mini Excavators are an optimal design for a dedicated quick coupler solution. Low offset, pin grabber ability, and a wedge type locking system ensures a tight fit, no attachment play during use. It also creates the solution to exchange work tools among different platforms and brands. In combination with the Tilt Rotate System that can be equipped with an S Type Coupler and the variety of different buckets offered, it provides a complete attachment solution for Mini Excavators. The coupler is designed with the highest safety standards and comes with a visible locking mechanism.

  • Weight 215 lb

  • Lifting Hook Capacity 6613.9 lb

  • Width 13.9 in

  • Overall Length 27.1 in

Request a quote

Product Specifications



  • Coupler Type S-50 Pin Grabber

  • Interface Type Pin On

  • Lifting Hook Capacity 6613.9lb

  • Machine Class 10 Ton Mini Excavators

  • Maximum Operating Pressure 5076.3psi

  • Overall Height 13in

  • Overall Length 27.1in

  • Pin Diameter 2.4in

  • Required Hydraulics Dedicated Factory Installed

  • Weight 215lb

  • Width 13.9in
