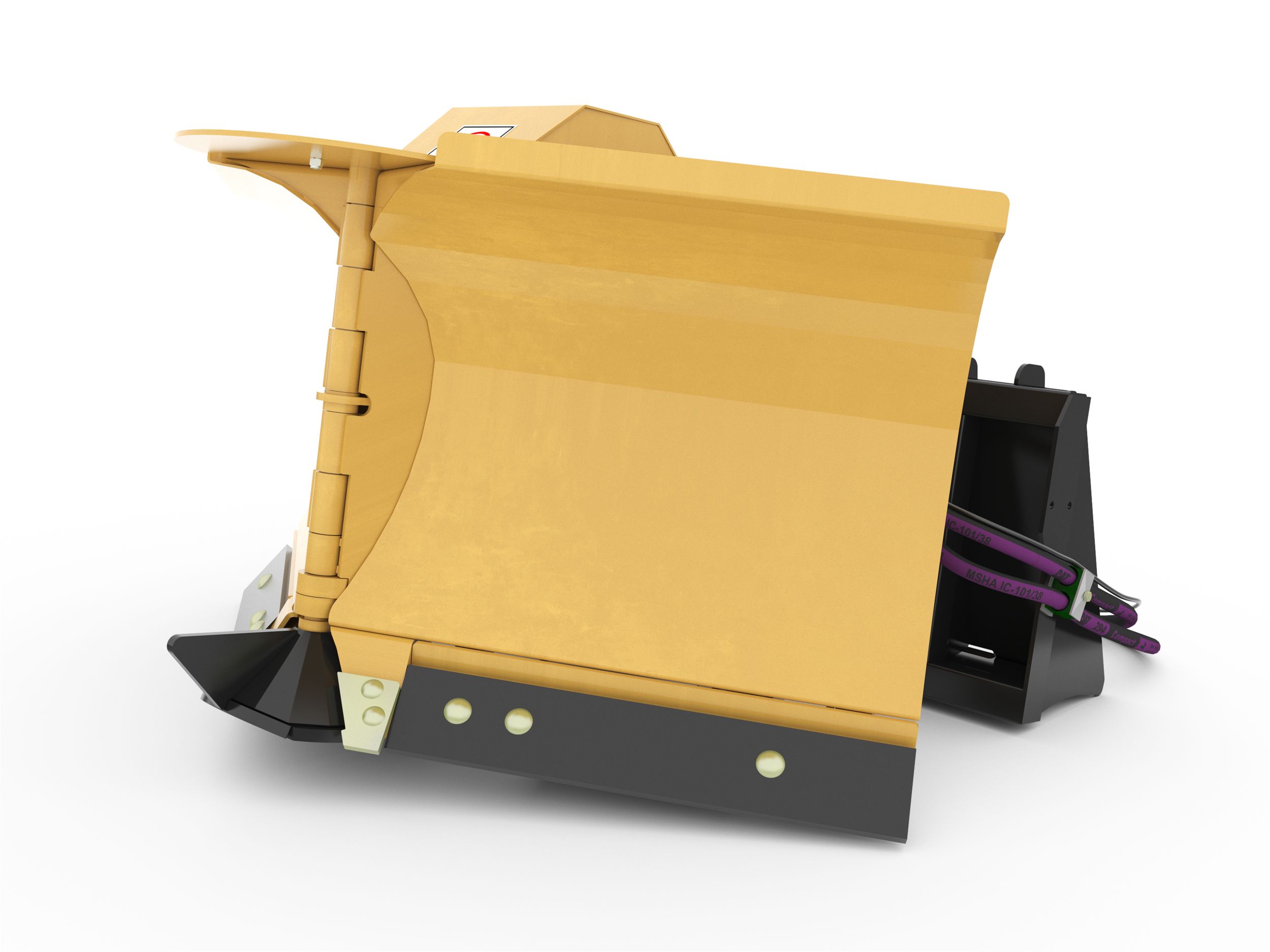

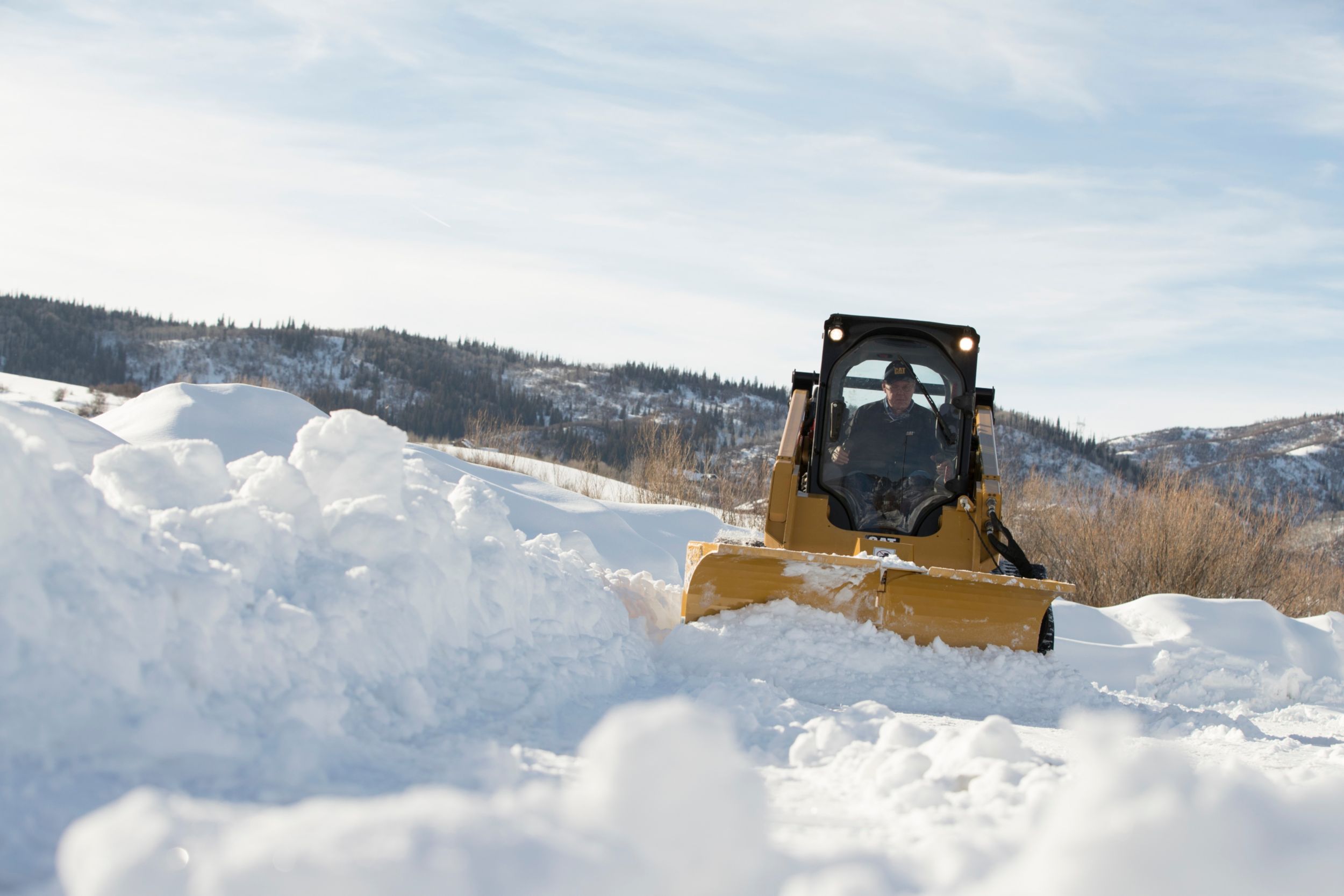

Cat® Multi V-Plows Buckets for Cat Skid Steer Loaders, Compact Track Loaders and Compact Wheel Loaders are a versatile attachment for snow removal applications with the capability to hydraulically angle 5 different blade configurations. Push, plow, sweep, or scoop snow and ice to clear surfaces and restore safe passage to driveways, sidewalks, parking lots, and roadways.
Straight Width 60 in
Angled Width 53 in
Interface Type Skid Steer Coupler
V-Width - Scoop Mode 54 in
Angled Width 53in
Blade Height 29in
Float ±5 Degrees
Hydraulic Angling - Left/Right of Center ±35 Degrees
Interface Type Skid Steer Coupler
Length 52in
Optimal Hydraulic Flow 57-76 lpm (15-20 gpm)
Optimal Hydraulic Pressure 150-230 bar (2176-3340 psi)
Overall Height 32.5in
Required Hydraulics Standard Flow
Straight Width 60in
Trip Edge Height 4in
Trip Edge Pivot Height 3.3in
Trip Edge Quantity 2
Trip Edge Type Steel
V-Width - Plow Mode 58.4in
V-Width - Scoop Mode 54in
Weight 639.3lb
