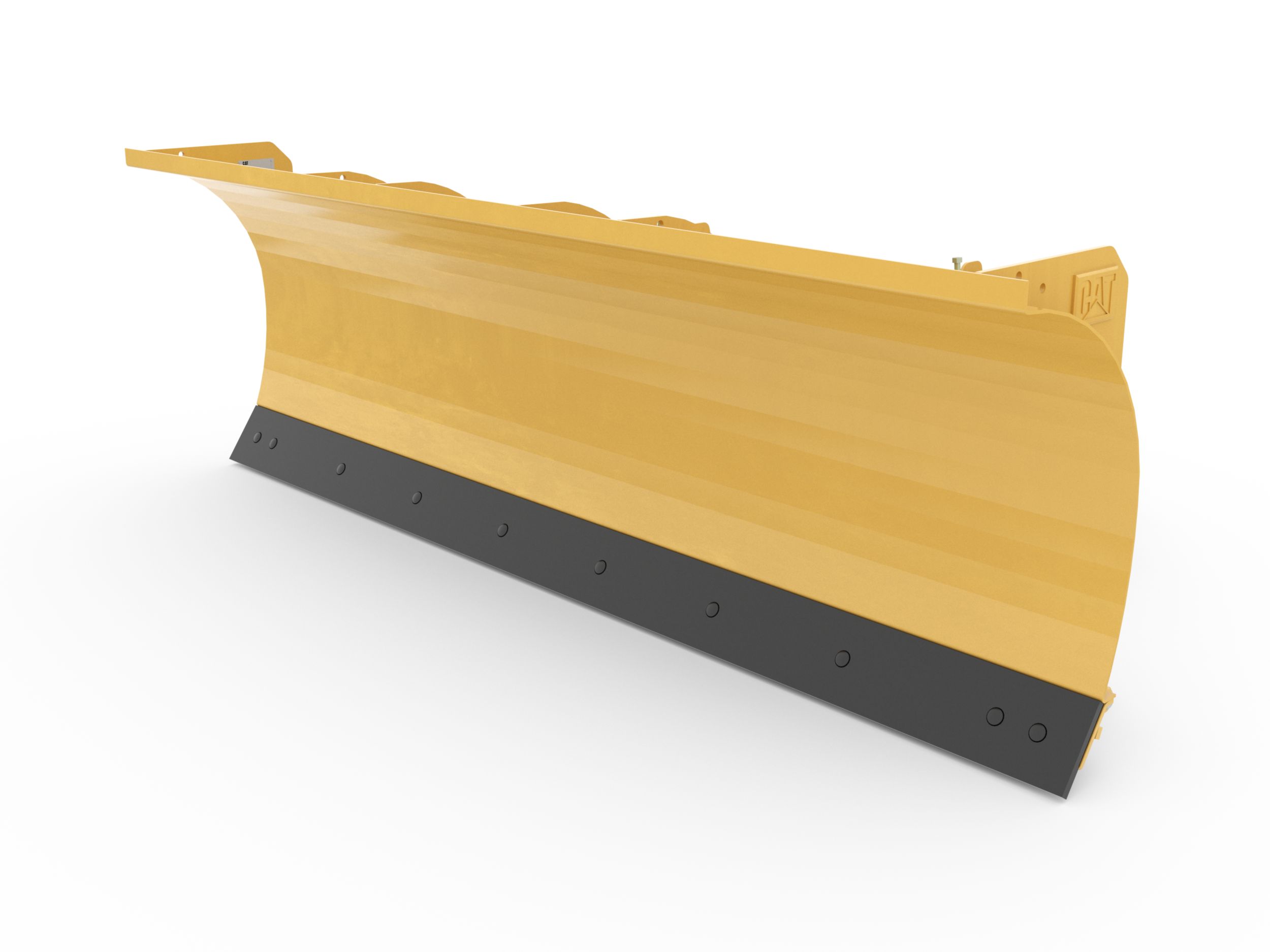

Cat® Snow Plows are designed for snow removal applications in parking lots, driveways, airport runways and storage lots. The design of the plow scrapes the surface and can angle to windrow material to one side. The trip edge system protects your machine and tool from unseen obstacles by retracting when objects such as a manhole cover or large rocks are hit.
Width 95.9 in
Angled Width 78.6 in
Weight 1106.7 lb
Overall Height 31.5 in
Angled Width 78.6in
Blade Height 31.4in
Float ±5 Degrees
Hydraulic Angling - Left/Right of Center ±35 Degrees
Interface Type Skid Steer Coupler
Length 49.1in
Overall Height 31.5in
Trip Edge Height 5.3in
Trip Edge Quantity 1
Trip Edge Type Steel
Weight 1106.7lb
Width 95.9in
