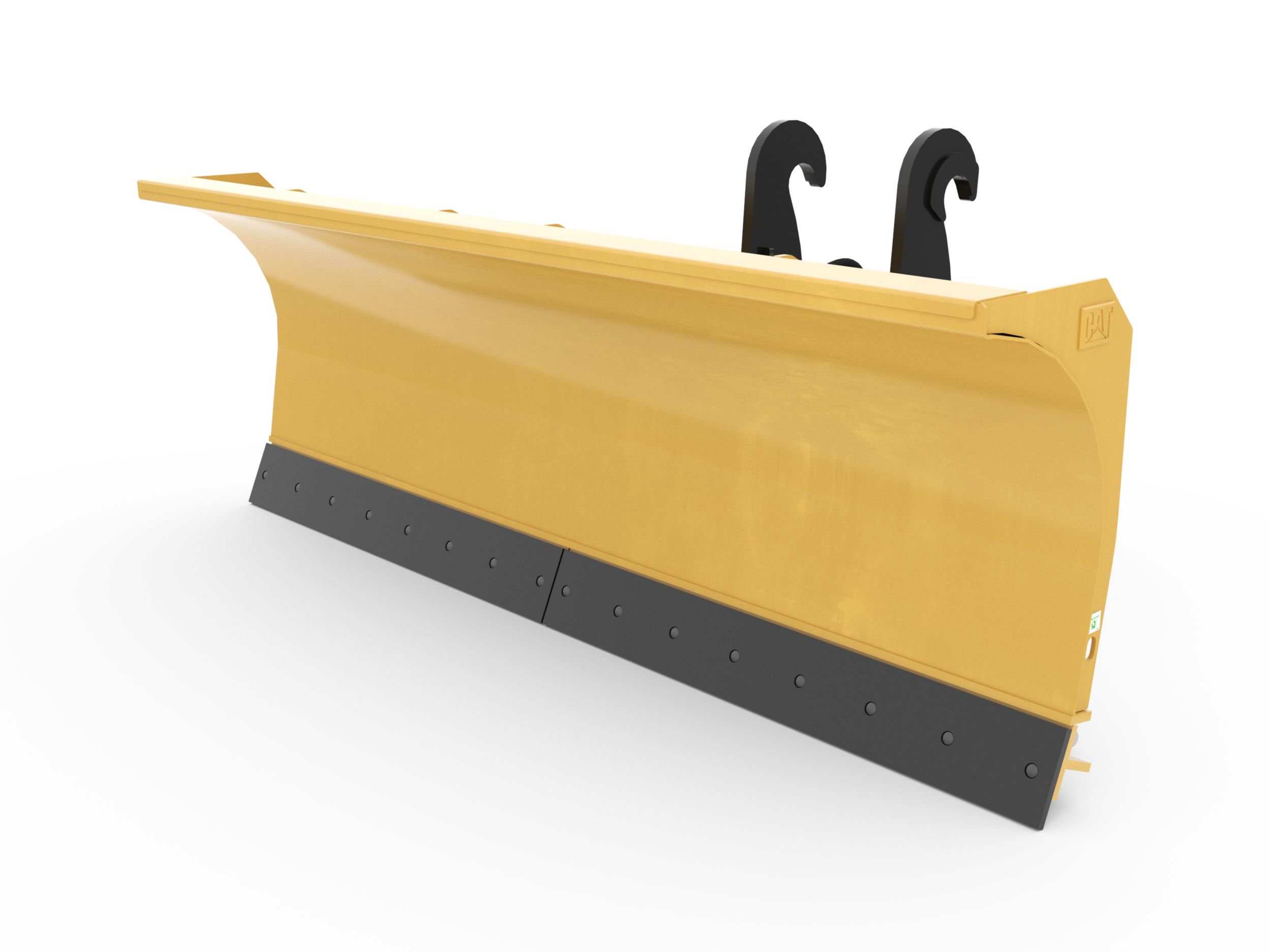

Cat® Snow Plows are designed for snow removal applications in parking lots, driveways, airport runways and storage lots. The design of the plow scrapes the surface and can angle to windrow material to one side. The trip edge system protects your machine and tool from unseen obstacles by retracting when objects such as a manhole cover or large rocks are hit.
Width 120 in
Angled Width 98.3 in
Weight 3062.2 lb
Overall Height 41.9 in
Angled Width 98.3in
Blade Height 42.2in
Float ±5 Degrees
Hydraulic Angling - Left/Right of Center ±35 Degrees
Interface Type Fusion™ Coupler
Length 69.9in
Overall Height 41.9in
Trip Edge Height 7.6in
Trip Edge Quantity 2
Trip Edge Type Steel
Weight 3062.2lb
Width 120in
