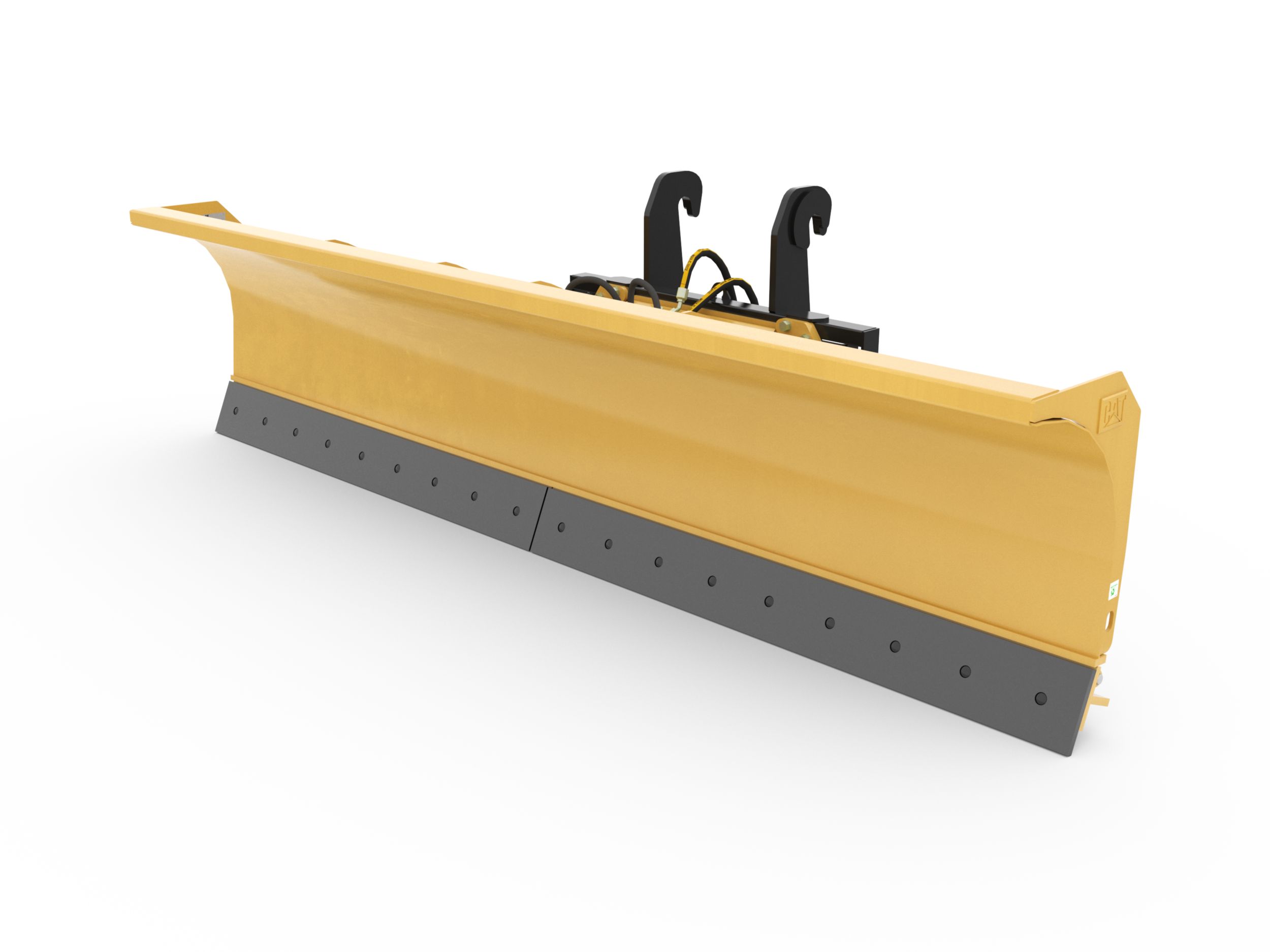

Cat® Snow Plows are designed for snow removal applications in parking lots, driveways, airport runways and storage lots. The design of the plow scrapes the surface and can angle to windrow material to one side. The trip edge system protects your machine and tool from unseen obstacles by retracting when objects such as a manhole cover or large rocks are hit.
Width 144 in
Angled Width 118 in
Weight 2180.4 lb
Overall Height 41.4 in
Angled Width 118in
Blade Height 35in
Float ±5 Degrees
Hydraulic Angling - Left/Right of Center ±35 Degrees
Interface Type IT Coupler
Length 54.5in
Overall Height 41.4in
Trip Edge Height 7.6in
Trip Edge Quantity 2
Trip Edge Type Steel
Weight 2180.4lb
Width 144in
