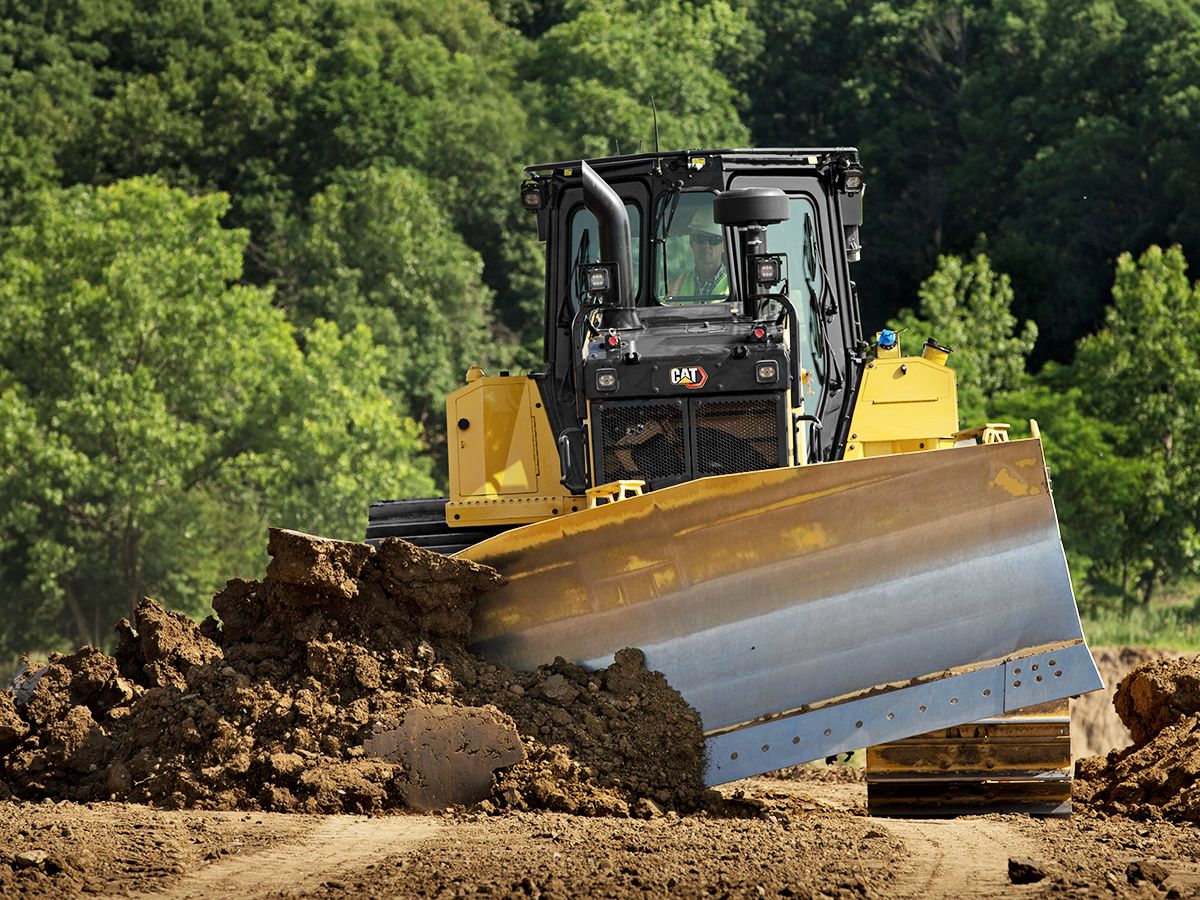

The Cat® D6 XE is the world’s first high drive Electric Drive dozer, offering you the highest level of productivity, fuel efficiency and ease of operation. With next-generation Electric Drive technology there are no gears to shift, so you experience constant power to the ground, greater agility and faster cycle times. Put more profit in your pocket too, with up to 35 percent better fuel efficiency and reduced service/maintenance costs. The broadest range of technology features in the industry work together to help you make the most of your equipment investment.
Engine Model Cat C9.3B
Power - Net 215 HP
Operating Weight 51333 lb
Net Power - Rated - ISO 9249/SAE J1349 215 HP
Emissions U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
Engine Model Cat C9.3B
Net Power (Rated) - ISO 9249 (DIN) 219mhp
Net Power - Rated - ISO 9249/SAE J1349 215HP
Note (1) Rated horsepower at 1,700 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect a
Note (2) Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (
Note (3) Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document.
Note (4) Machine Build Number 20B
Power - Net 215HP
Operating Weight 51333lb
Power Train Electric Drive
DEF Tank 7.4gal (US)
Fuel Tank 90gal (US)
Blade Semi-Universal (SU)
Blade Capacity 7.5yd³
Ground Pressure 8psi
Operating Weight 49388lb
Width of Standard Shoe 24in
Blade Semi-Universal (SU)
Blade Capacity 7.6yd³
Ground Pressure 6.6psi
Operating Weight 51020lb
Width of Standard Shoe 30in
Blade Straight
Blade Capacity 5yd³
Ground Pressure 5.3psi
Operating Weight 53315lb
Width of Standard Shoe 36in
Blade VPAT
Blade Capacity 5.4yd³
Ground Pressure 7.2psi
Operating Weight 49708lb
Width of Standard Shoe 24in
Blade VPAT
Blade Capacity 5.9yd³
Ground Pressure 5.9psi
Operating Weight 51333lb
Width of Standard Shoe 30in
Blade VPAT
Blade Capacity 6.5yd³
Ground Pressure 5.1psi
Operating Weight 52512lb
Width of Standard Shoe 36in
Recyclability 98%
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes.
Standard and optional equipment may vary. Consult your Cat dealer for details.
Electric Drive
Cat C9.3B diesel engine
Double reduction planetary final drives
Hydraulic reversing fan
Fully redesigned cab, sound suppressed, with Integrated Roll Over Protective Structure (ROPS)
Full-color 10-inch (254 mm) liquid crystal touch screen display
Integrated rearview camera
Adjustable operator controls/armrests
Cab mounted modular Heating/Ventilation/Air Conditioning (HVAC) system
Added storage areas
Electrohydraulic implement and steering controls
Cloth seat
Lights - 6 LED
Slope Indicate
Product Link, Cellular
Grade Control Ready Cab
Remote Control Ready
Remote Flash/Remote Troubleshoot
Operator ID
Machine Security - Passcode
Compatibility with radios and base stations from Trimble, Topcon, and Leica
Capability to install 3D grade systems from Trimble, Topcon, and Leica
Redesigned track roller frame
Rear access ladder
Shovel holder
Ground level service center
30-minute cab removal
Fast fuel fill
Fire extinguisher mounting provision
Ecology drains
Underhood work light
Independent steering and implement pumps
Load sensing hydraulics
Ripper-ready rear hydraulics
Ripper and winch-ready rear hydraulics
Standard and optional equipment may vary. Consult your Cat dealer for details.
Deluxe leather heated/ventilated seat
Powered precleaner
Premium lights - 12 LED
Integrated warning lights
Communication radio ready
ARO with Assist Package: Includes Attachment Ready Option (ARO), Slope Assist, Steer Assist, Stable Blade, Blade Load Monitor, Traction Control, AutoCarry
Grade 3D with Assist Package: Includes full-color 10-inch (254 mm) touchscreen grade display, Steer Assist 3D, Grade receivers and antennas, Grade Software Enabled Attachment (SEA), ARO with Assist package features
Product Link Dual Cellular/Satellite
Grade Connectivity
Machine Security - Bluetooth
Cat Command for Dozing
Semi-Universal
Variable Pitch Angle Tilt (VPAT)
Straight blade
Angle blade
Foldable VPAT - under 3 m (9.9 ft) transport width (Not available in all regions)
Waste/Landfill
FirstCut cutting edges (SU blades)
Heavy Duty (HDXL with DuraLink) or Cat Abrasion
10-Roller Fine Grading undercarriage
Moderate Service or Extreme Service track shoes
Refilling fuel pump (EU only)
High speed oil change
Rear implement work light
High lift ripper with straight or curved shanks
Winch
Counterweights
Side and/or rear screens
Sweeps
Drawbar
Forestry and Waste Special Arrangements
