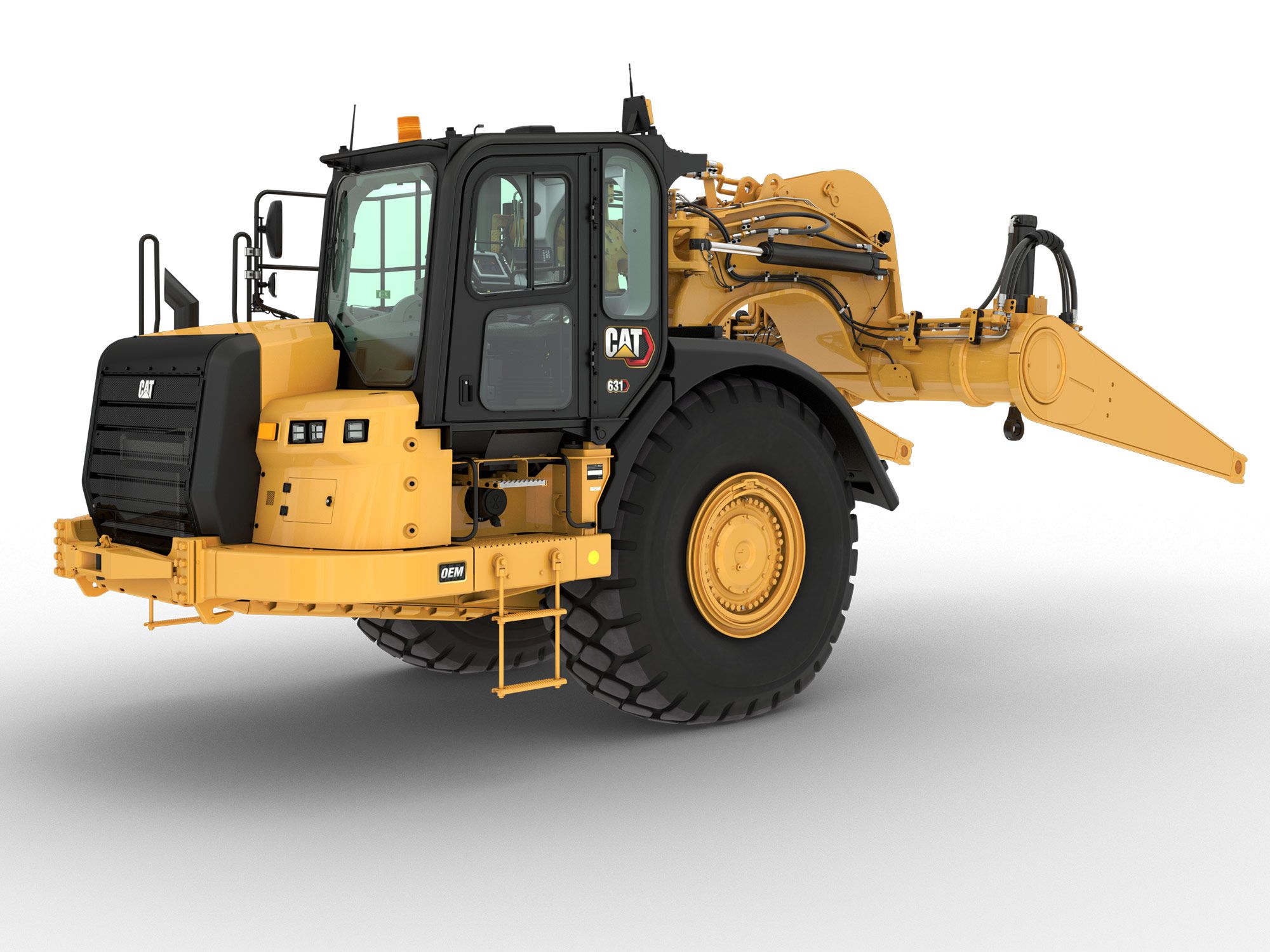

Caterpillar offers partial wheel tractor-scraper power units designed for specialty machines that complement the traditional Cat® product line. These tractor-only configurations are available for purchase directly from Caterpillar OEM Solutions. They can be leveraged for a variety of final machines, including water pulls, elevating scrapers, lowboy trailer power units, and more. With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on time and investment.
Tractor Engine Cat® C18
Flywheel Power - Tractor 570 hp
Top Speed - Loaded 34.7 mile/h
Brakes ISO 3450:2011
Flywheel Power - Tractor 570hp
Note Meets U.S. EPA Tier 4 Final or EU Stage V emission standards, or equivalent to U.S. EPA Tier 2, or equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Tractor Engine Cat® C18
1 Forward 3.4mile/h
2 Forward 6.2mile/h
3 Forward 7.7mile/h
4 Forward 10.5mile/h
5 Forward 14.1mile/h
6 Forward 19mile/h
7 Forward 25.7mile/h
8 Forward 34.7mile/h
Reverse 6.2mile/h
Top Speed - Loaded 34.7mile/h
Brakes ISO 3450:2011
Cab Seat Belt: SAE J386:FEB2006
ROPS/FOPS ROPS: ISO 3471:2008. FOPS:ISO 3449:2005 Level II.
Width - 180° Turn 40.2ft
Cooling System 19.8gal (US)
Crankcase 13.7gal (US)
Differential 41.7gal (US)
Final Drive - Each 5gal (US)
Fuel Tank 231gal (US)
Hydraulic Reservoir 37.5gal (US)
Transmission 29gal (US)
Windshield Washer 1.3gal (US)
Standard and optional equipment may vary. Consult your Cat dealer for details.
Cat® C18 engine with Mechanically Actuated Electronic Unit Injection (MEUI™)
Transmission: 8-speed planetary powershift, ECPC control, APECS software, programmable top gear selection, transmission hold, differential lock, guard - power train, ground speed control, machine speed limit
Cat engine brake
Electric start, 24V
Air cleaner, dry type with precleaner
Fan, hydraulic
Ground level engine shutdown
Radiator, aluminum unit core, 9 fins per inch
Guard, crankcase
Starting aid, ether
Braking system: primary and secondary, wet disc, hydraulic; parking, hydraulic-released, spring-applied
Alternator, 115 ampere
Batteries (4), 12V, 1,000 CCA, maintenance free, high output
Electrical system, 24V
Lighting system: LED
Starting/charging receptacle
HVAC system, heat, AC, defrost
Thermostat control of HVAC system
Coat hook
Lunchbox platform with holding strap
Diagnostic connection (2)
12V power ports (2)
Differential lock
Dome courtesy light
Horn, electric
T-handle implement control
Radio ready
ROPS/FOPS cab, pressurized
Keypad switches: rear engine start; throttle lock; wipers/washers; hazard lights; worklights on, off; information mode; messenger display; safety tab rocker switches, parking brake
Seat belt, static two-piece
Windows, sliding
Windows, laminated, zipped in
Windshield wipers, front and rear windows, includes washers
Mirror, rearview
Door lock
Messenger display
Display gauges, warnings include: coolant temp; engine oil temp; hydraulic oil temp; DPF temp; fuel level; park brake; implement lockout; brake system, regeneration required; throttle lock; system voltage; secondary steering; bail down; differential lock; apron float; transmission hold; high beam lights; action lamp; engine speed, rpm; gear selection; DPF fill levels
Safety tab rocker switches
Seat: Cat Advanced Ride Management (ARM), Cat Comfort Series III, rotates 30 degrees
Steering wheel, tilt, telescoping, padded
Windows, right side emergency egress
Messenger display
Extended life coolant to -37° C (-34° F)
Advanced cushion hitch
Accumulators (cushion hitch and brake) with Canadian registration number (CRN)
Tow pin, front
Fenders, non-metallic
Heater, engine coolant 120V
Fast-fill fuel tank
Camera arrangement: Work Area Vision System (WAVS)
Cab beacon
Air horn
Air horn and beacon
Kingbolt housing
Rear wheel arrangement (set of 2)
Scraper draft arm package
Steering cylinder group (set of 2)
