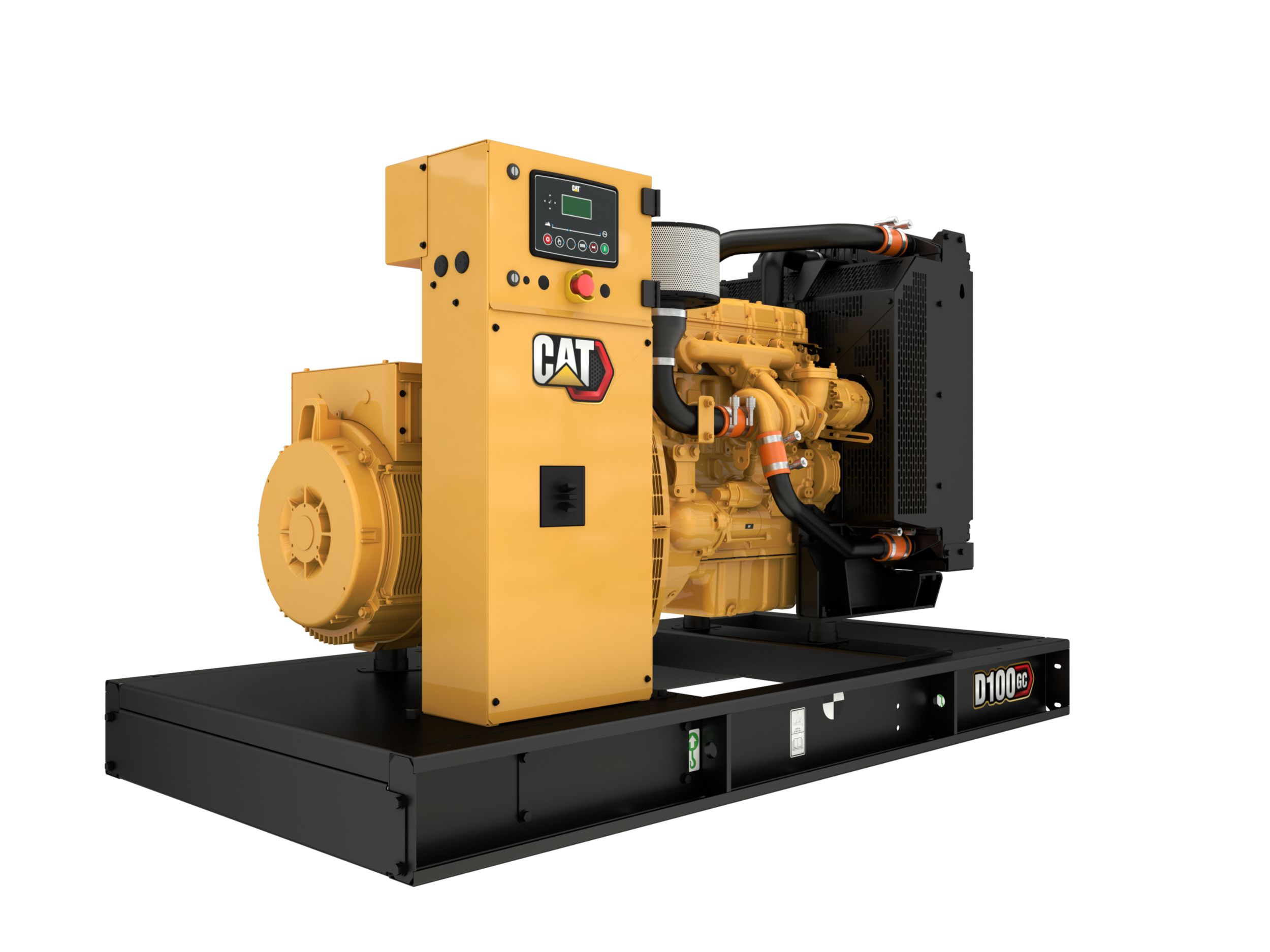

D100 GC Generator Set

D100 GC Generator Set

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

  • Maximum Rating 100 ekW

  • Minimum Rating 100 ekW

  • Emissions/Fuel Strategy U.S. EPA Cert., Tier 3

  • Voltage 208 to 600 Volts

Request a quote

Product Specifications

Specifications

Generator Set Specifications

  • Duty Cycle Standby

  • Emissions/Fuel Strategy U.S. EPA Cert., Tier 3

  • Frequency 60 Hz

  • Maximum Rating 100 ekW

  • Minimum Rating 100 ekW

  • Speed 1800 rpm

  • Voltage 208 to 600 Volts

Engine Specifications

  • Aspiration Turbocharged

  • Bore 4.1in

  • Compression Ratio 16.7:1

  • Displacement 269in³

  • Engine Model C4.4, In-line 4, 4-cycle diesel

  • Fuel System Common Rail

  • Governor Type Mechanical, ADEM™A4

  • Stroke 5in

Generator Set Dimensions

  • Dry Weight - Genset (maximum) 2222lb

  • Height - Maximum 52.9in

  • Length - Maximum 82.6in

  • Width - Maximum 43.3in

Features

Equipment

Standard Equipment

  • Air cleaner; light duty with disposable element

  • Air cleaner

  • Coolant drain line with valve

  • Radiator and cooling fan with guards

  • Caterpillar extended life coolant

  • Fan drive, battery charging alternator drive

  • GCCP 1.2 Control panel

  • Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose

  • Standard open set fuel tank/base supplied base, formed steel with single wall integral 24-hour fuel tank

  • Circuit breaker, IEC, 3 pole, mounted in tower panel

  • IP23 Protection

  • Tower panel, IP22, bottom cable entry

  • 12 Leads

  • Voltage regulator (single phase sensing)

  • Segregated low voltage (AC/DC) wiring panel

  • Mechanical and electrical governing system - model dependent

  • Lubricating oil

  • Oil drain line with valve

  • Termination points for coolant and lube oil drain lines

  • Captive linear vibration isolators between base and engine-generator

  • Includes lifting provision and drag points

  • Batteries

  • 24V battery with rack and cables

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

  • Anti-condensation heater

  • 3 phase sensing

  • Permanent magnet excitation (PMG)

  • R Frame auxilliary winding

  • Quadrature droop kit

  • Circuit breaker upgrades - 4 Pole circuit reaker to 250A, 400A and 630 A

  • Coolant heater

  • Low coolant temperature alarm

  • Low coolant level shutdown

  • Earth fault (2 wire only)

  • Control panel heater

  • GCCP 1.2 Control panel

  • Volt free contacts

  • Emergency stop with key

  • Voltage adjust potentiometer

  • Overload shutdown via breaker

  • Panel mounted audible alarm

  • Battery charger

  • Earth leakage (2 wire only)

  • Speed adjust potentiometer

  • Sound attenuated Level 2 enclosure

  • Low fuel level alarm

  • Bunded fuel tank

  • Low fuel level shutdown

  • High fuel level alarm

  • Battery removal

  • Electronic governor

  • Industrial silencer

  • External single point lift - enclosure

  • Silencer installation kit

  • PGS Test report @ 0.8 power factor

  • PGS Test report @ 1.0 power factor

  • Packing case - canopied set

  • Packing case - compact set

  • Stone guards/rad trans flange
