XGC1900

XGC1900

  • Rating 1900 ekW (2375 kVA) Continuous

  • Frequency 60 Hz

  • Voltage 480 V

  • Engine Cat G3516H

Request a quote

Product Specifications

Specifications

Generator Set

  • Frequency 60 Hz

  • Rating 1900 ekW (2375 kVA) Continuous

  • Voltage 480 V

Engine

  • Engine Cat G3516H

  • Fuel Natural Gas

Dimensions

  • Height - Without Chassis 114in

  • Length - Without Chassis 480in

  • Weight - Without Chassis, With Lube Oil and Coolant 77780lb

  • Width - Without Chassis 96in

Features

Equipment

Standard Equipment

  • G3516H, V16, 4-stroke-cycle, gas engine. Operates on 24.10 to 93.95 MJ/Nm3 (615 to 2386 btu/ft3) dry pipeline natural gas. Turbocharged Separate Circuit Aftercooled

  • Double bearing SR5 1866 Frame, brushless, form wound, 12-lead design, permanent magnet excited, thouree-phase, with Cat IVR, Class H insulation operating at Class F temperature. Stator and Bearing temperature monitoring and anti-condensation space heaters

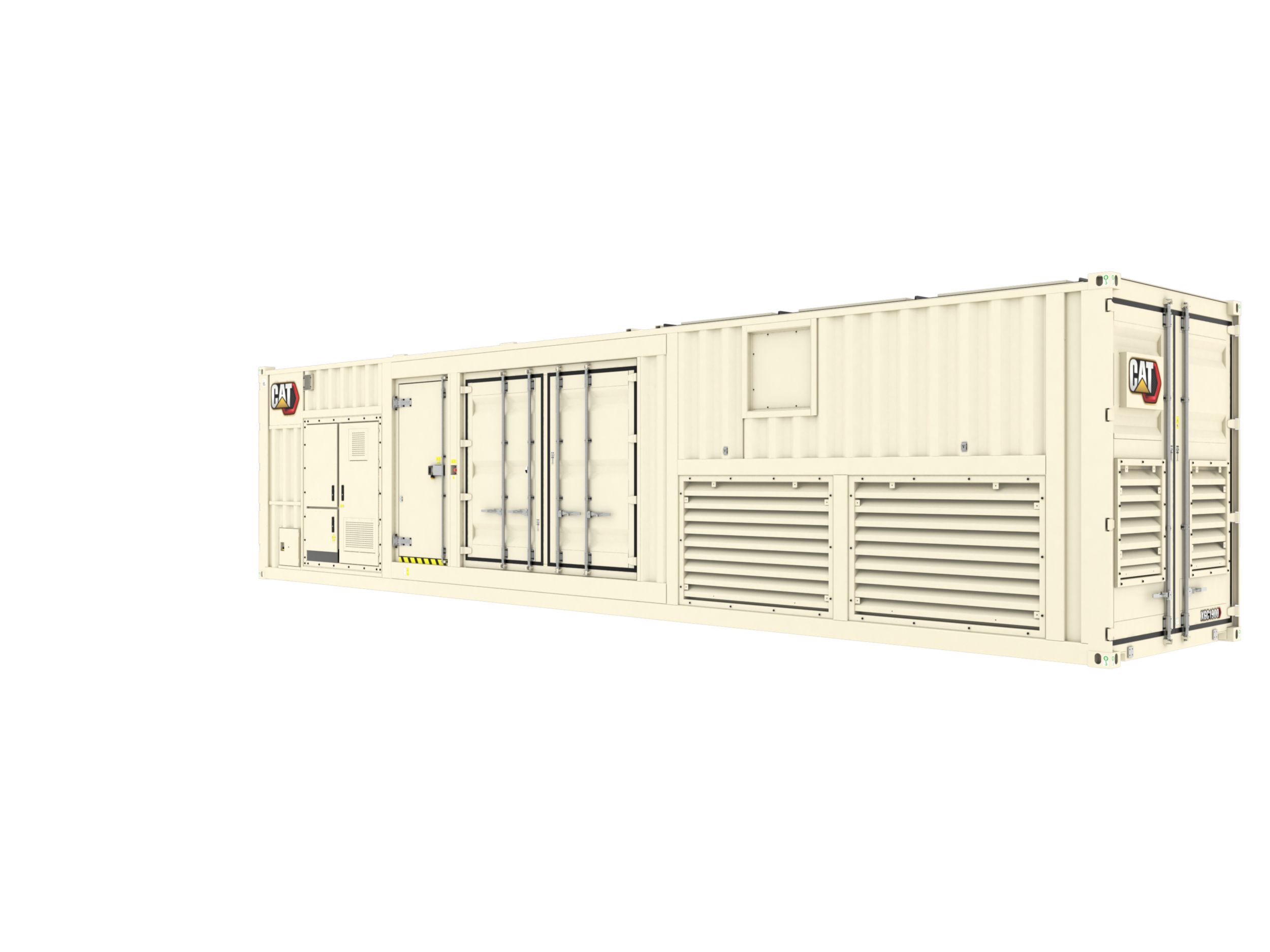

  • 40' ISO high cube container, 9-high stack CSC certified. Sound attenuated 79 dB(A) @ 7 m (23 ft) Sound attenuated air intake louvers and 2lockable personnel doors with panic release LH and RH engine service doors integrated intocontainer side walls 3” ANSI flange customer fuel connection

  • Standard cooling provides 40⁰C (104⁰F) ambient capability with 250mg/Nm3 NOx at 100% Continuous rating before derate, @ 500m

  • On Package EMCP 4.3 Control Panel System Offers engine and generator monitoring and protection, voltage regulation with Cat IVRimproves transient response performance. Controls provide auto paralleling AGC-4 controller, load sharing, VFD control, and primary generator protection for greate rversatility, package utilization and monitoring.

  • Provides for single unit stand-alone operation,island mode paralleling and load sharing withother power modules, and single unit-to-utilitymode paralleling for base load control

  • Oil pan-mounted oil level regulator and 114 L (30 gal) oil tank Low level annunciation
