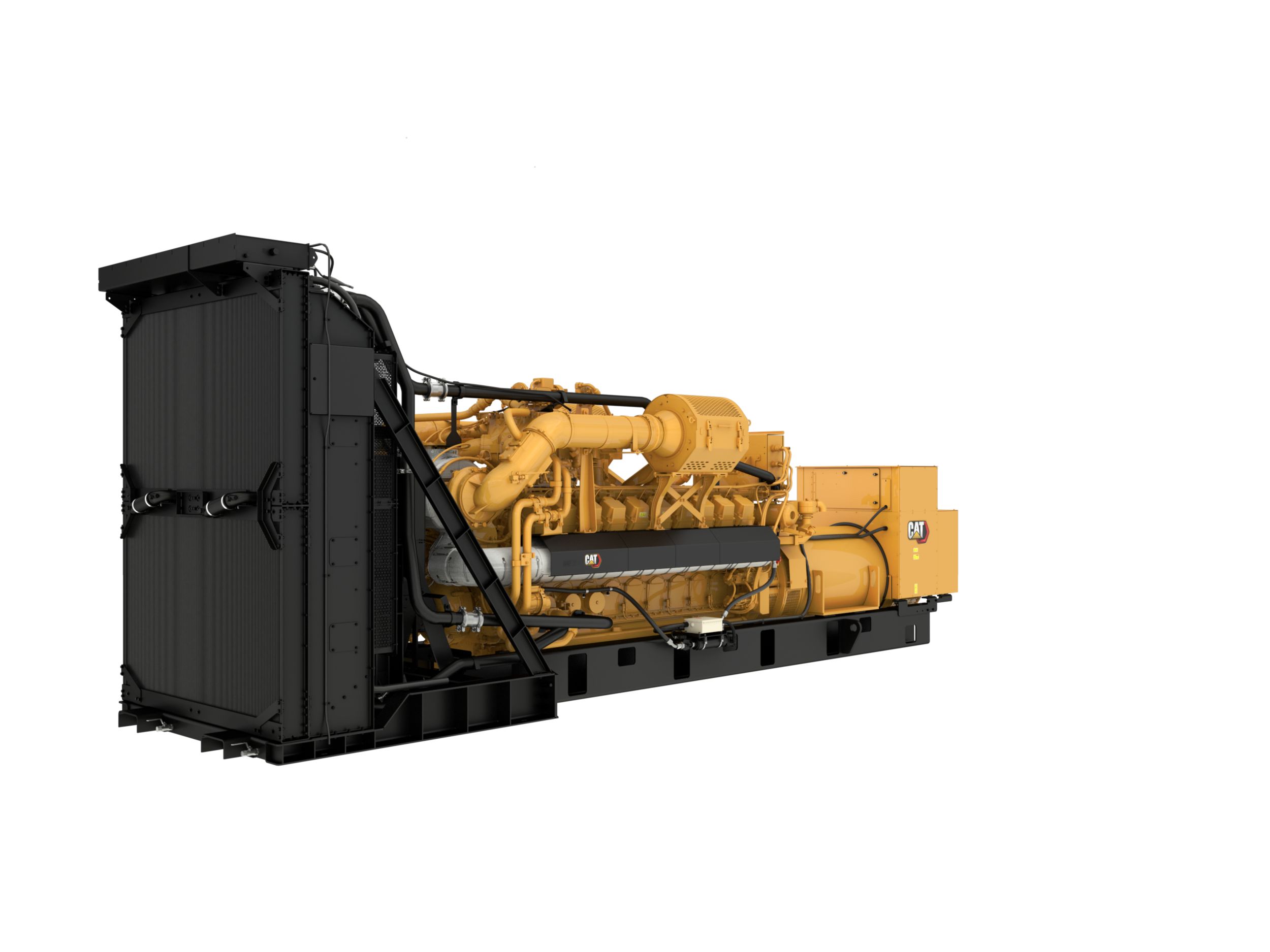

Gas Standby Rating 2000 ekW @ 0.8pf
Fuel Type Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy U.S. EPA Stationary Non-Emergency Certified
Frequency 60 Hz
Compression Ratio 11.5
Emissions/Fuel Strategy U.S. EPA Stationary Non-Emergency Certified
Frequency 60 Hz
Fuel Type Natural Gas, Hydrogen Blend (up to 5%)
Gas Standby Rating 2000 ekW @ 0.8pf
RPM 1800 rpm
Aspiration TA
Bore 6.7in
Displacement 5956in³
Engine Model G3520
Stroke 8.5in
Height 128in
Length 336in
Weight 48500lb
Width 94in
Two-element single-stage air cleaner with enclosure and service indicator
Cat ECS 100
Jacket water and SCAC engine-driven pumps
Jacket water and SCAC thermostats
Dry exhaust manifolds, insulated and shielded
Cat-flanged face outlet on turbocharger
Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
Engine-installed electronic control valve
Gas pressure regulator
Throttle plate, 24V DC actuator, controlled by GECM
24V DC energized-to-run (ETR) gas shutoff valve
Parts book
Paint- Caterpillar Yellow with high gloss black rails and radiator
Operation and maintenance manuals
Crankshaft vibration damper and guard
RH Service
Permanent Magnet Excitiation
Integrated voltage regulator (IVR)
SR5
Winding temperature detectors
Anti-condensation space heater
NEMA Class H insulation
24V starting motors
Battery with cables and rack (shipped loose)
Jacket water heater
Electric Starter
ADEM A4
Electronic Ignition System (controlled by ADEM A4)
Individual Cylinder Detonation Sensitive Timing (DST)
Air cleaner with precleaner
EMCP 4.4
Local alarm module
Engine failure relay
Remote annunciator
Remote PC monitoring
Local PC monitoring
1600A, 2000A 3 Pole, UL-100% Rated R-Frame Circuit Breakers
100% rated, 3-pole (UL/CSA/IEC) 5th Digit Rating
S LSI, G LSIG, P LSIG-P, 4th Digit Type
Frame mounting
3-pole (IEC 947-2 rated)
2000A, 2500A, 3000A 3 Pole, UL-100% Rated Masterpact Circuit Breakers
Package mounted radiator
Coolant level drain line with valves, fan with guard
18, 25 dBA Attenuation
305mm (12 in) spark arresting muffler
305 mm (12in.) elbow
305 mm (12 in.) flange
305 mm (12 in.) muffler
3, 0-100 kPag, 4-20mA gas train pressure sensors
Digital diagnostic tool
Bearing temperature detectors
Generator air filter
Cable access box
European bus bars
Low voltage extension box
20A, 24VDC battery charger
45A, 24V charging alternator (requires engine driven pumps)
60 Hz: USA
