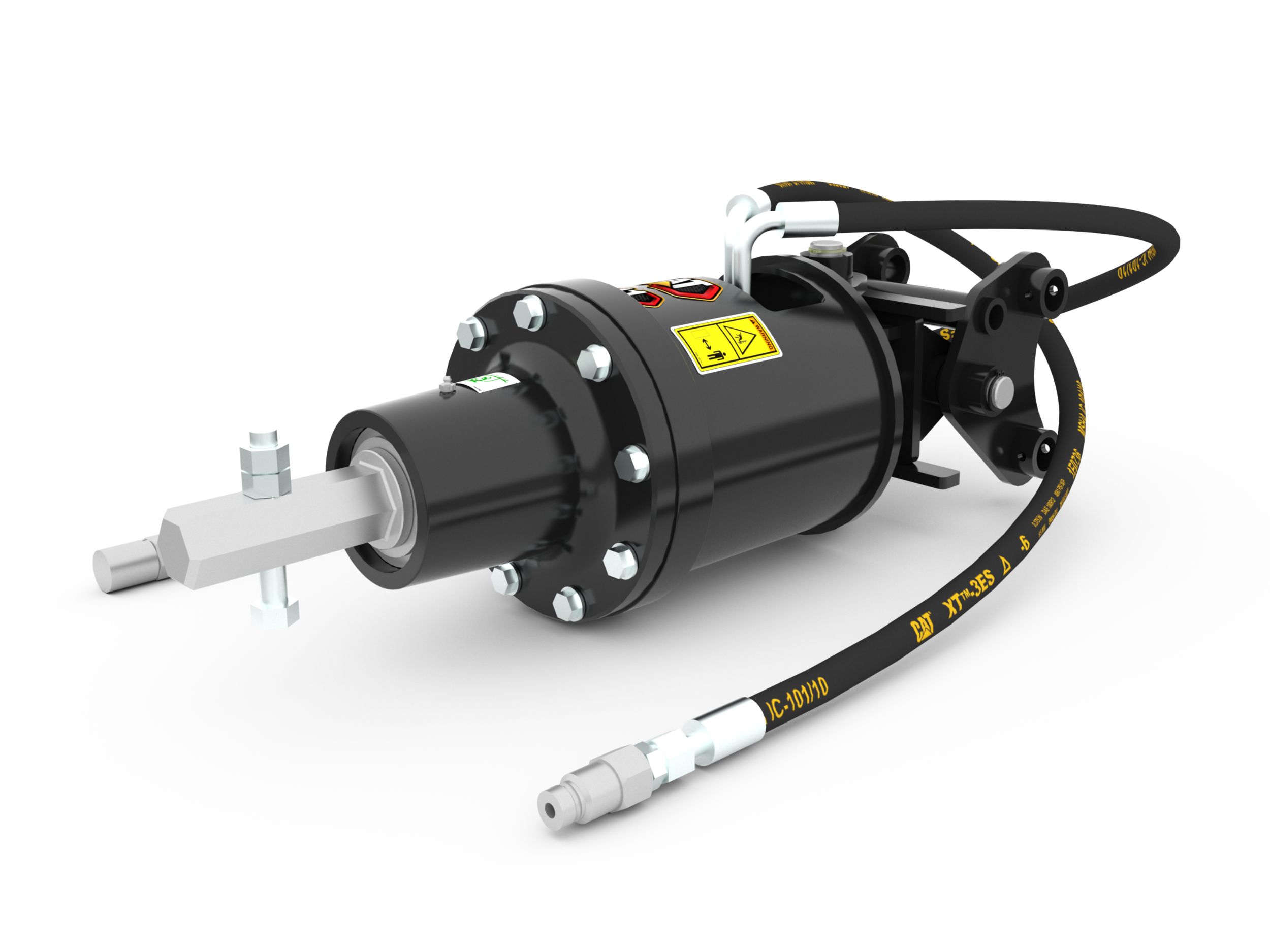

A11 Auger

Drive Shaft Torque @ Max Pressure
815 lb ft
Drive Method
Gerotor Motor - Direct
Mounting Bracket Design
Mini Hydraulic Excavator
Overall Length w/bracket

Dimensions

Drive Shaft Torque @ Max Pressure
815lb ft
Drive Method
Gerotor Motor - Direct
Mounting Bracket Design
Mini Hydraulic Excavator
Overall Length w/bracket
Required Hydraulic Flow
20gal/min
Optimal Hydraulic Pressure
2988psi
Overall Width w/bracket
11in
Overall Height
35.5in
Housing Diameter
11in
Swing Range (fore/aft)
36 degrees
Hex Output Shaft Size
2in
Weight
179lb
Motor Displacement
Bit Speed at Maximum Flow
191 rpm
Required Hydraulics
Drive Shaft Torque at Maximum Pressure
815lb/ft
Drive Method
Gerotor Motor - Direct Drive
Mounting Bracket Design
2 Ton Mini Excavator Pin On
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
75-90 L/min (20-24 gpm)
Optimal Hydraulic Pressure
105-150 bar (1523-2176 psi)
Overall Width - With Bracket
11in
Overall Length - With Bracket
11in
Overall Height
35.4in
Swing Range (L/R)
76 degrees
Weight
178.6lb
Motor Displacement
24in³

Standard Equipment:

Optional Equipment:
