A68 Auger

  • Home »
  • New Attachments » A68 Auger
    Order Parts Request Service

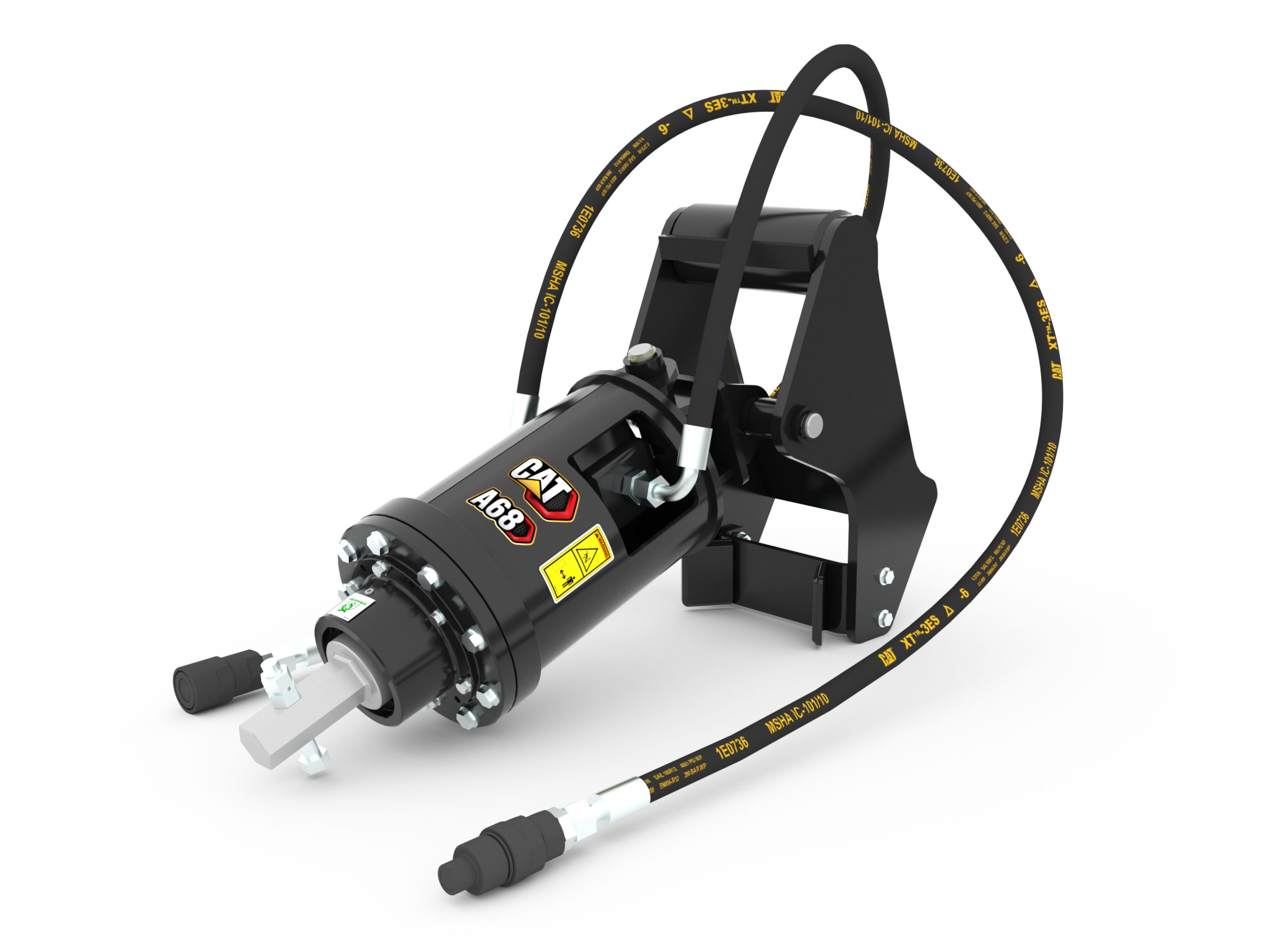

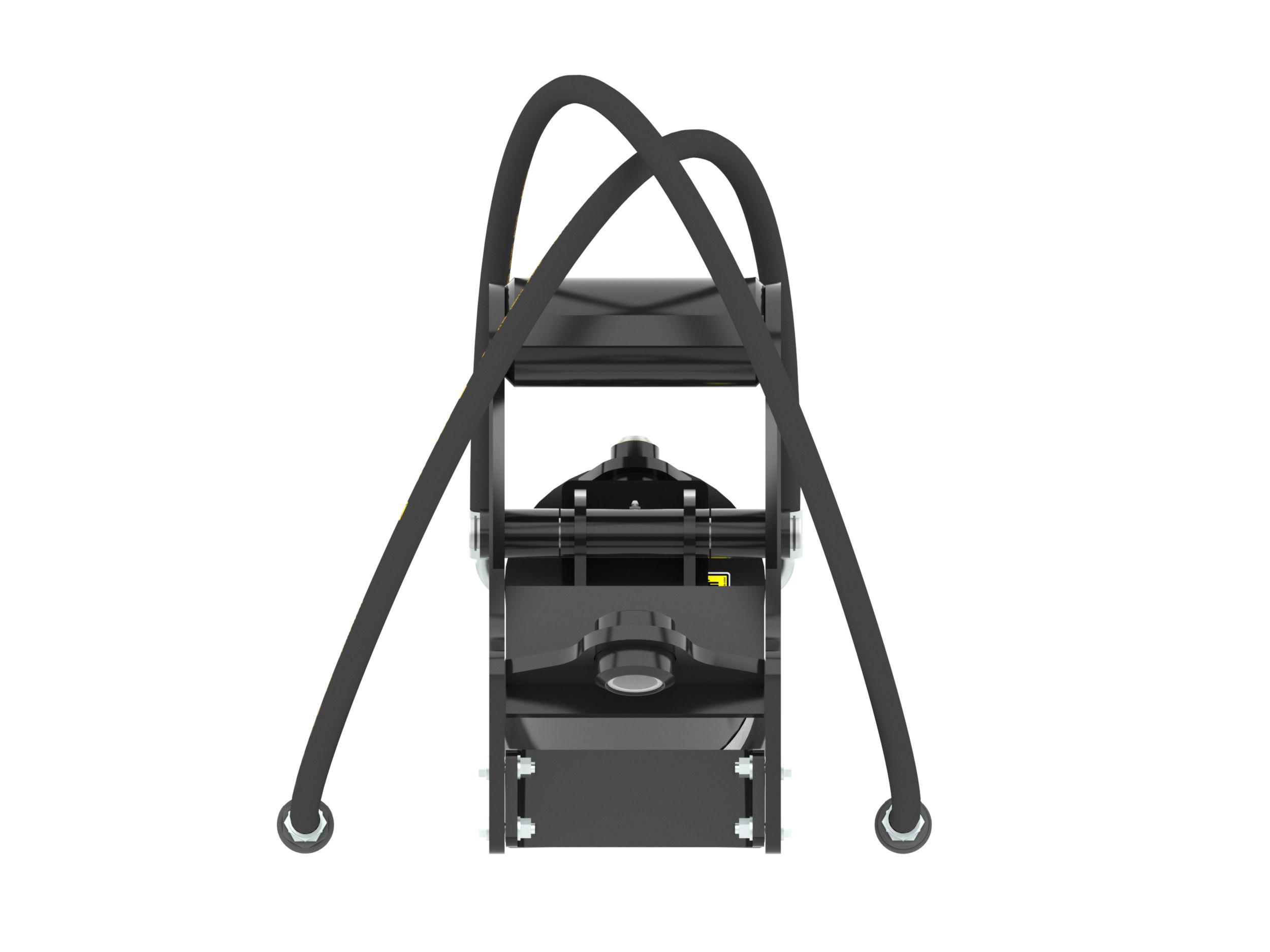

    A68 Auger

    Download Product Brochure
    Email/Share
    Drive Shaft Torque at Maximum Pressure
    5037.5 lb/ft
    Drive Method
    Gerotor Motor - Double Planetary Reduction
    Mounting Bracket Design
    Backhoe Loader 1/4 yd Pin Lock
    Required Hydraulics
    High Flow XPS

    Dimensions

    Drive Shaft Torque at Maximum Pressure
    5037.5lb/ft
    Drive Method
    Gerotor Motor - Double Planetary Reduction
    Mounting Bracket Design
    Backhoe Loader 1/4 yd Pin Lock
    Required Hydraulics
    High Flow XPS
    Optimal Hydraulic Flow
    95-130 L/min (25-34 gpm)
    Optimal Hydraulic Pressure
    207-290 bar (3002-4206 psi)
    Overall Width - With Bracket
    45.4in
    Overall Length - With Bracket
    26.3in
    Overall Height
    43.2in
    Housing Diameter
    11in
    Swing Range (fore/aft)
    160 degrees
    Swing Range (L/R)
    105 degrees
    Weight
    443.1lb
    Motor Displacement
    2.67in³
    Bit Speed at Maximum Flow
    81 rpm
    Hex Output Shaft Size
    2in

    Standard Equipment:

    Optional Equipment:

    434 Backhoe Loader

    428 Backhoe Loader

    432 Backhoe Loader

    440 Backhoe Loader

    430 Backhoe Loader

    416 Backhoe Loader

    420 Backhoe Loader

    420 XE Backhoe Loader

    415 Backhoe Loader
