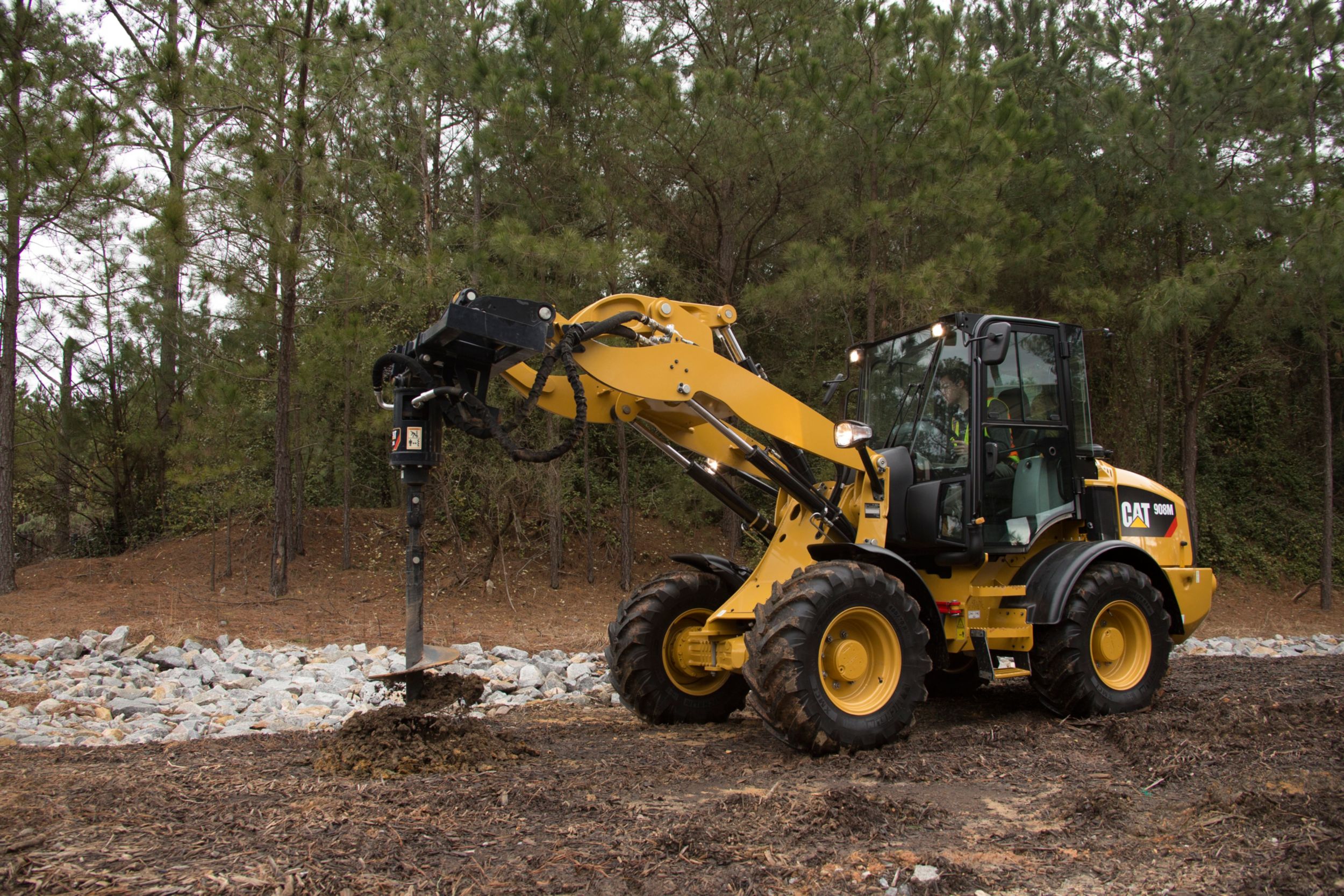

A23 Auger

Drive Shaft Torque @ Max Pressure
1700 lb ft
Drive Method
Gerotor Motor - Direct Drive
Mounting Bracket Design
Mini Hydraulic Excavator
Required Hydraulic Flow
21 gal/min

Dimensions

Drive Shaft Torque @ Max Pressure
1700lb ft
Drive Method
Gerotor Motor - Direct Drive
Mounting Bracket Design
Mini Hydraulic Excavator
Required Hydraulic Flow
21gal/min
Optimal Hydraulic Pressure
3336psi
Overall Width w/bracket
10.6in
Overall Height
35.7in
Housing Diameter
11in
Swing Range (fore/aft)
70 degrees
Hex Output Shaft Size
2in
Weight
263lb
Required Hydraulics
Bit Speed at Maximum Flow
127 rpm
Auger bit retention
Cross bolt/nuts
Overall Length w/bracket
Motor Displacement
Drive Shaft Torque at Maximum Pressure
1699.3lb/ft
Drive Method
Gerotor Motor - Direct Drive
Mounting Bracket Design
2 Ton Mini Excavator Pin On
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Overall Width - With Bracket
11.1in
Overall Length - With Bracket
11.1in
Overall Height
37.3in
Swing Range (L/R)
76 degrees
Weight
257.9lb
Motor Displacement
38in³

Standard Equipment:

Optional Equipment:
