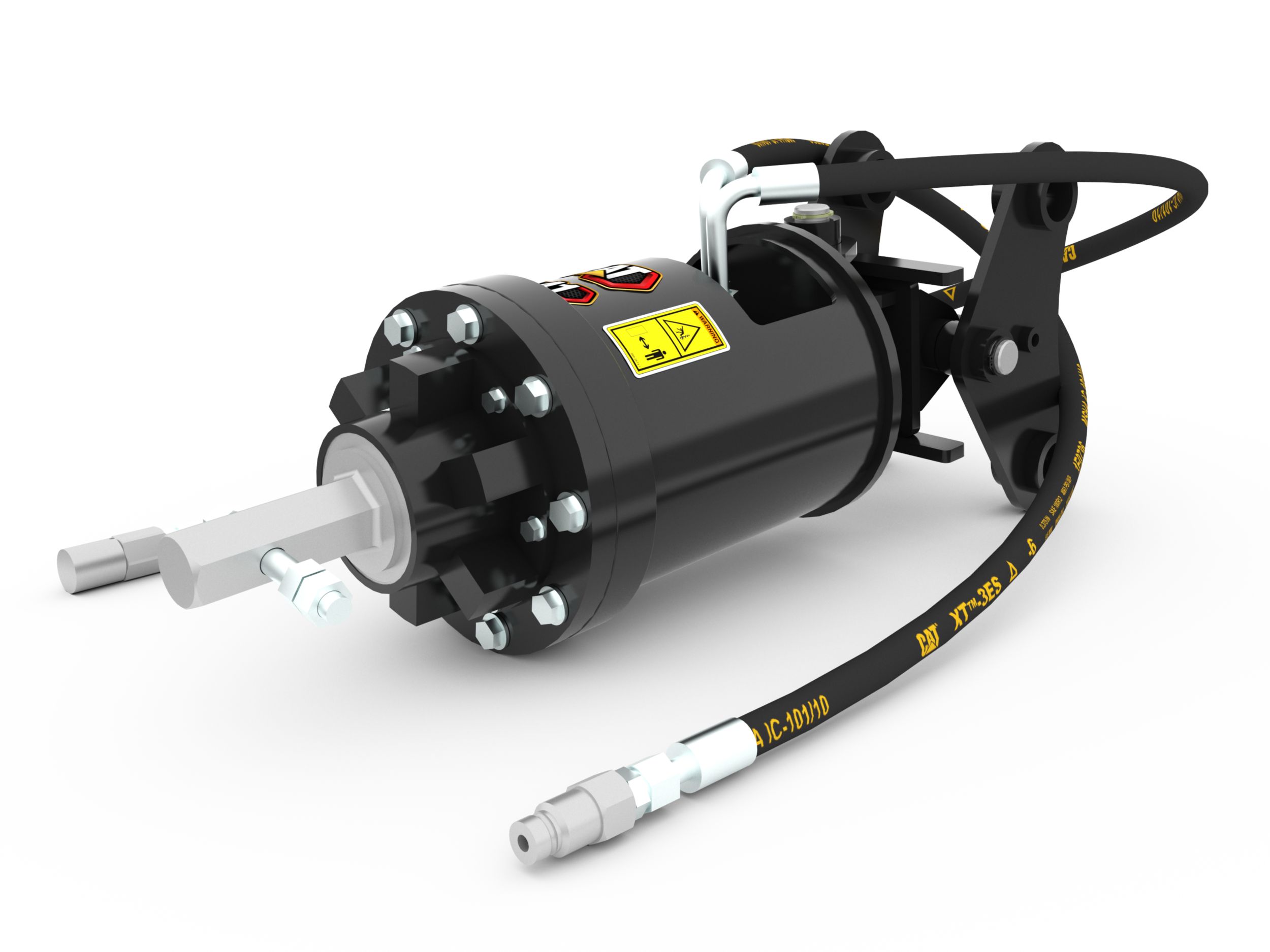

A41 Auger

A41 Auger

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.

  • Drive Shaft Torque at Maximum Pressure 3038.8 lb/ft

  • Drive Method Gerotor Motor - Single Planetary Reduction

  • Mounting Bracket Design 5 Ton Mini Excavator Pin On

  • Required Hydraulics Standard Flow

Request a quote

Product Specifications

Specifications

Dimensions

  • Bit Speed at Maximum Flow 71 rpm

  • Drive Method Gerotor Motor - Single Planetary Reduction

  • Drive Shaft Torque at Maximum Pressure 3038.8lb/ft

  • Hex Output Shaft Size 2in

  • Housing Diameter 11in

  • Motor Displacement 15.26in³

  • Mounting Bracket Design 5 Ton Mini Excavator Pin On

  • Optimal Hydraulic Flow 42-83 L/min (11-22 gpm)

  • Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)

  • Overall Height 34.4in

  • Overall Length - With Bracket 14.2in

  • Overall Width - With Bracket 11.4in

  • Required Hydraulics Standard Flow

  • Swing Range (L/R) 76 degrees

  • Swing Range (fore/aft) 72 degrees

  • Weight 207.2lb
