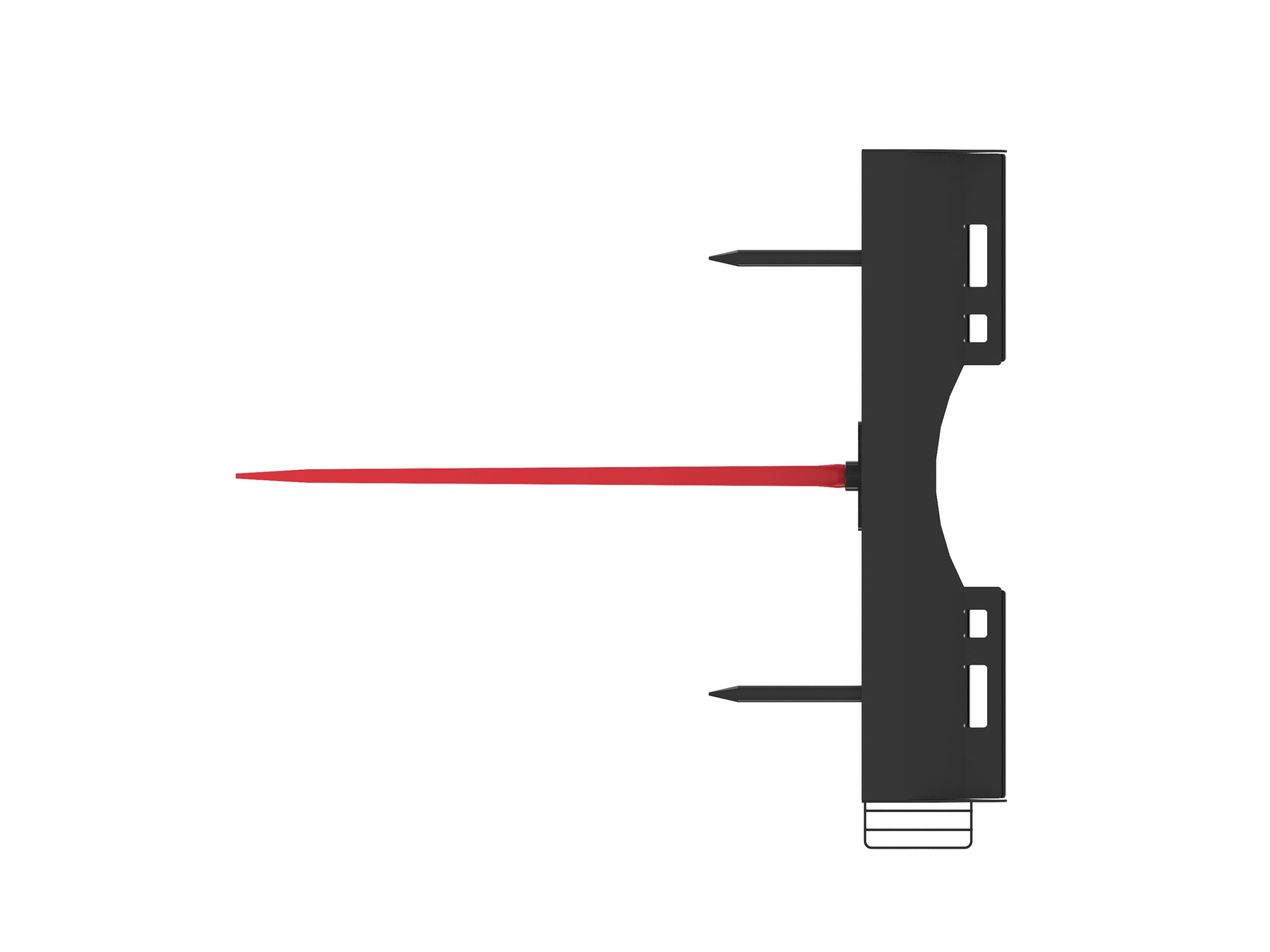

1140 mm (45 in) Single Tine Bale Spear

1140 mm (45 in) Single Tine Bale Spear

Cat® Bale Spears are designed for loading and carrying of round and square baled materials. Bales of wheat, hay and other materials can be transported for livestock feed, bedding or carrying for loading, unloading, or moving to storage. Offering optimal rigidity and capacity, the Bale Spear work tools are designed for a long working life.

  • Overall Width 50.6 in

  • Overall Height 22.4 in

  • Capacity 2004 ft³

  • Usable Tine Length 44.9 in

Request a quote

Product Specifications



  • Capacity 2004ft³

  • Overall Depth 56.8in

  • Overall Height 22.4in

  • Overall Width 50.6in

  • Stabilizer Tine Length 11.1in

  • Tine Spacing 31.5in

  • Usable Tine Length 44.9in

  • Weight 158.7lb
