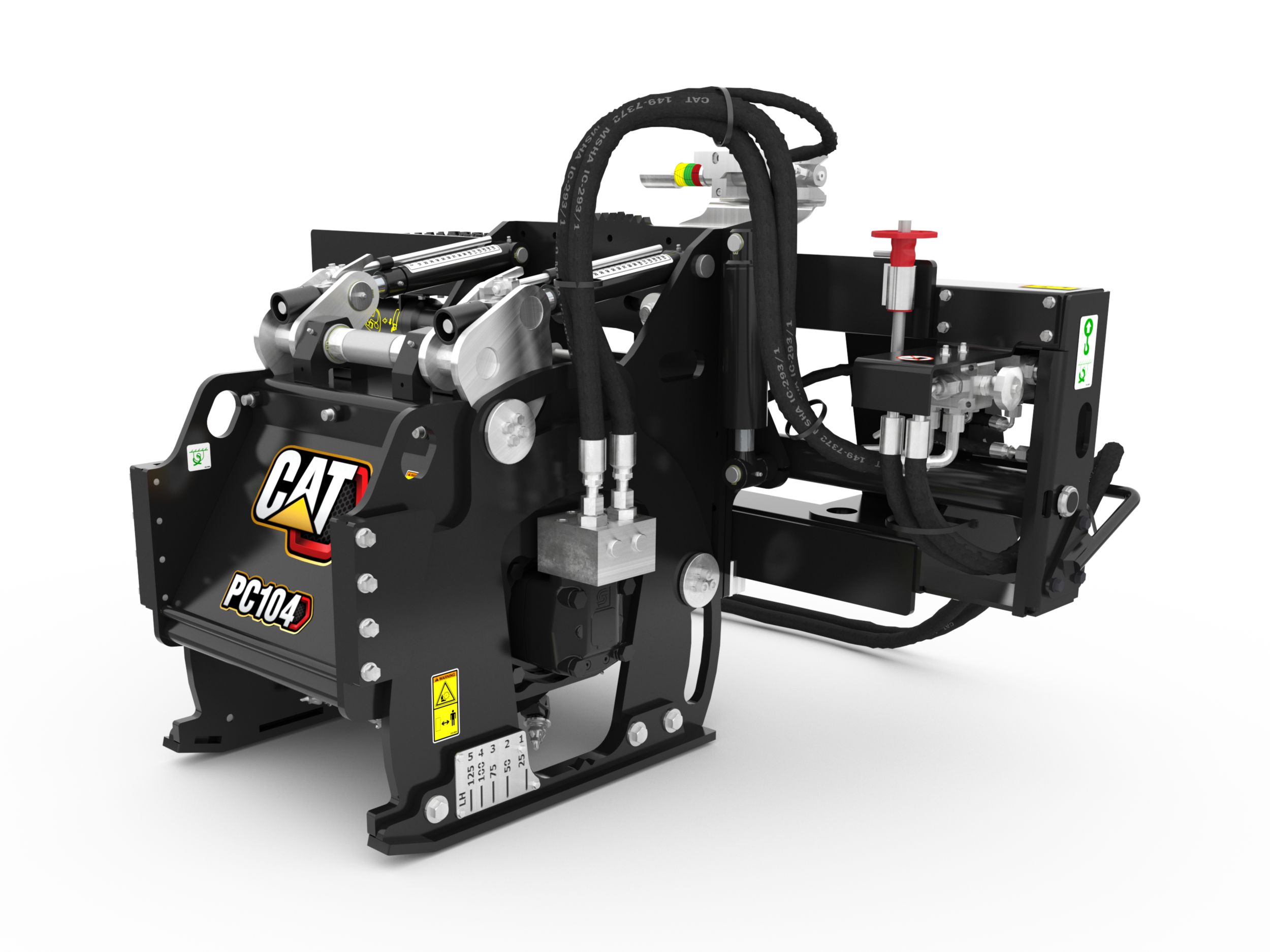

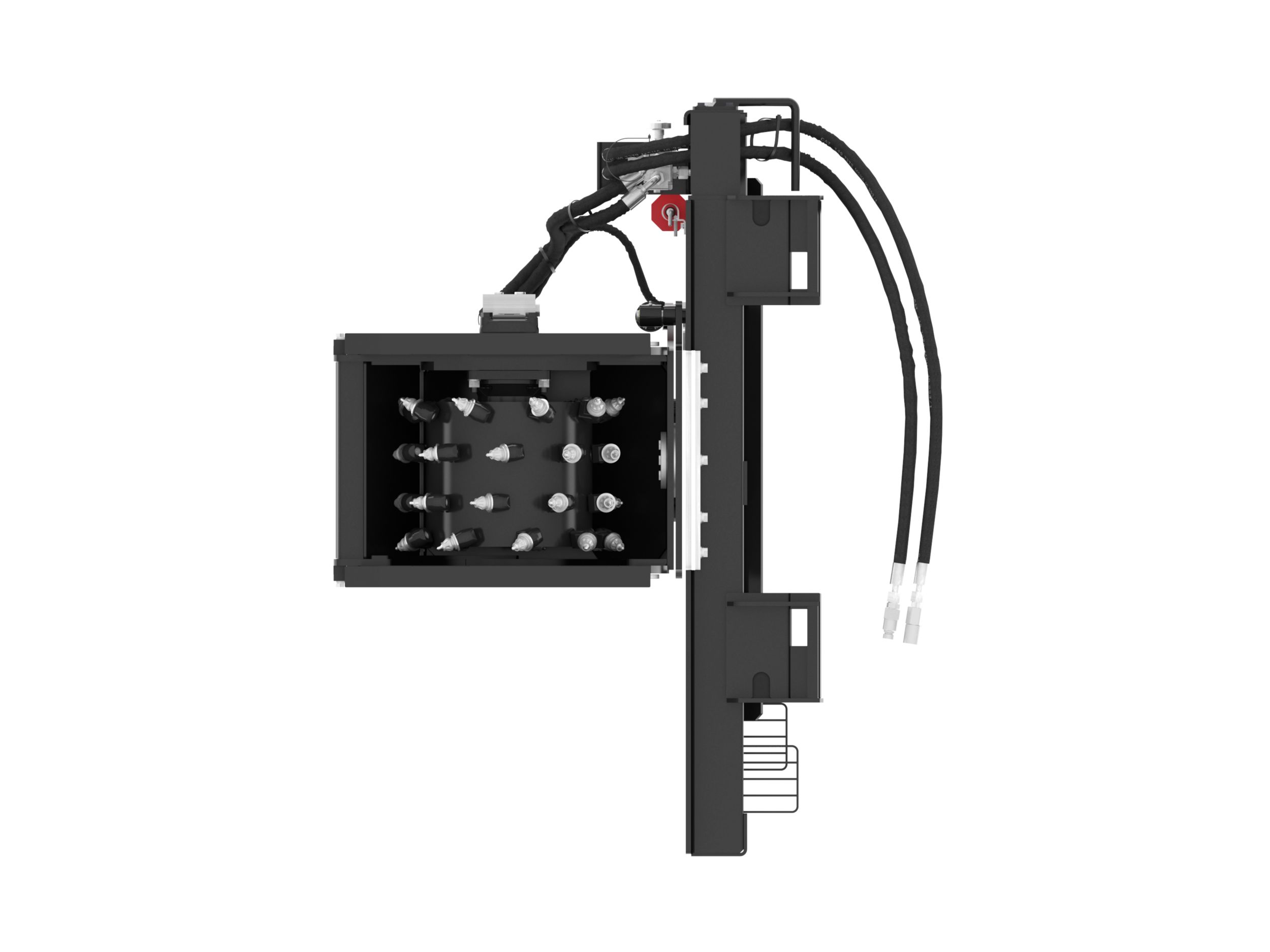

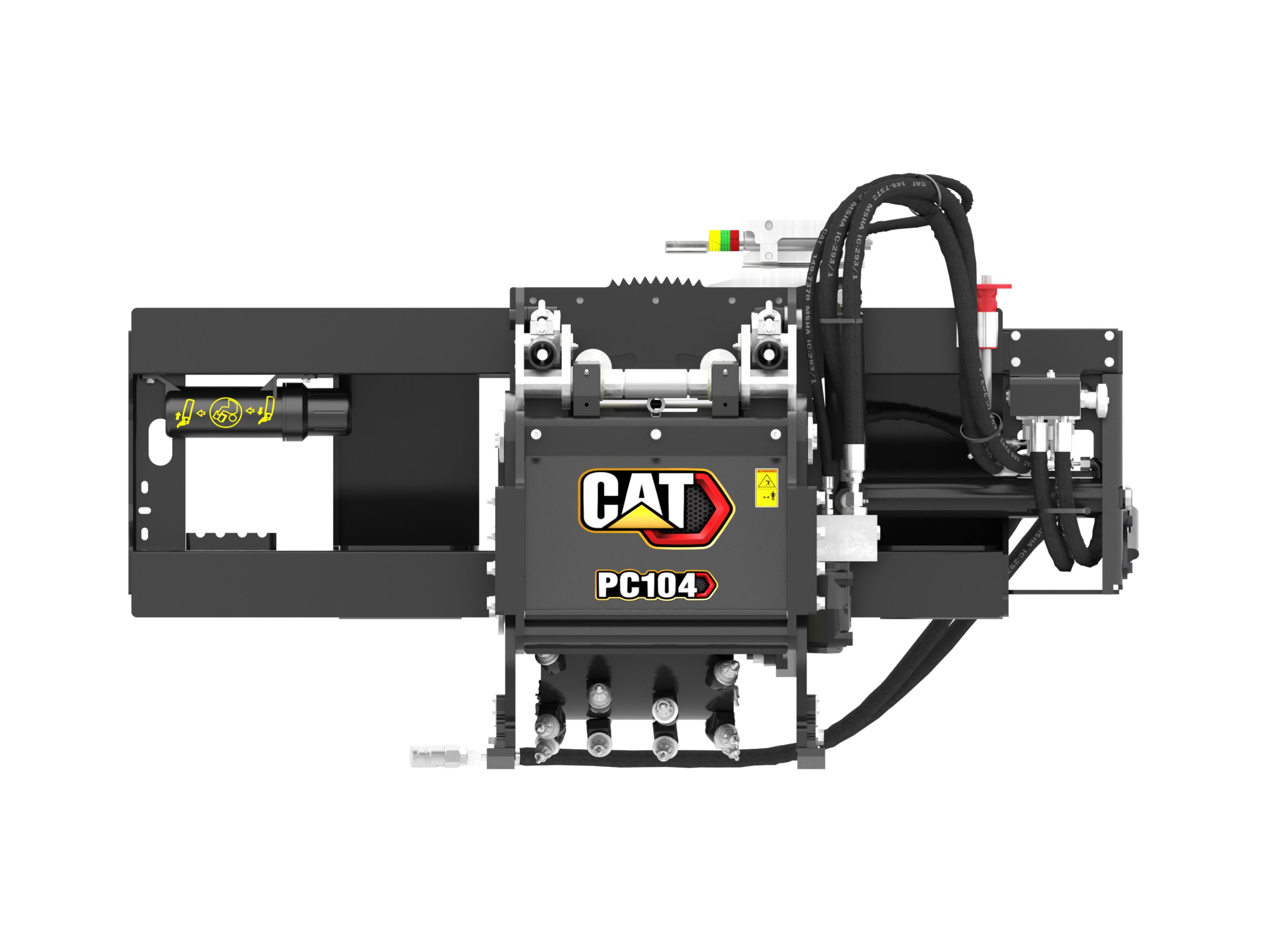

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.
Working Width 13.8 in
Maximum Cutting Depth 5.9 in
Required Hydraulics Standard Flow
Overall Width 68 in
Conical Bits 36
Drum Speed 181 rpm
Maximum Cutting Depth 5.9in
Optimal Hydraulic Flow 60-80 L/min (16-22 gpm)
Optimal Hydraulic Pressure 210-230 bar (3050-3300 psi)
Optional Drum Widths/Depths 400/150 mm (16/6 in)
Overall Height 37in
Overall Length 44in
Overall Width 68in
Required Hydraulics Standard Flow
Side Shift Travel 25.6in
Standard Bit Type All Purpose
Tilt Angle Range +/- 8.5 degrees
Weight 1503.6lb
Working Width 13.8in
