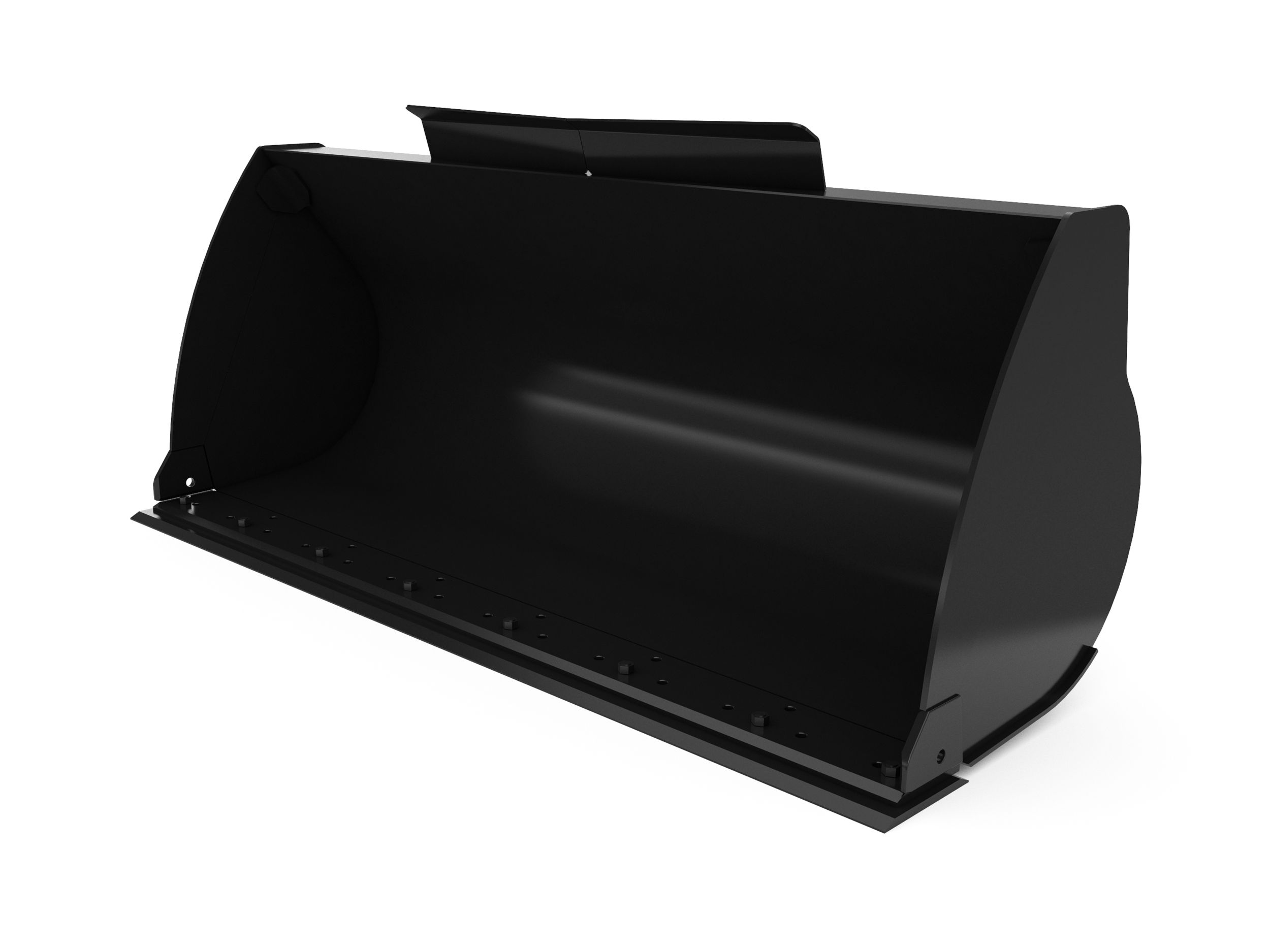

Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
Width 94.5 in
Weight 1220.9 lb
Height 42.5 in
Length 40.2 in
Base Edge Thickness 0.7in
Capacity 1.7yd³
Cutting Edge Thickness 0.7in
Height 42.5in
Interface Type IT Coupler
Length 40.2in
Weight 1220.9lb
Width 94.5in
