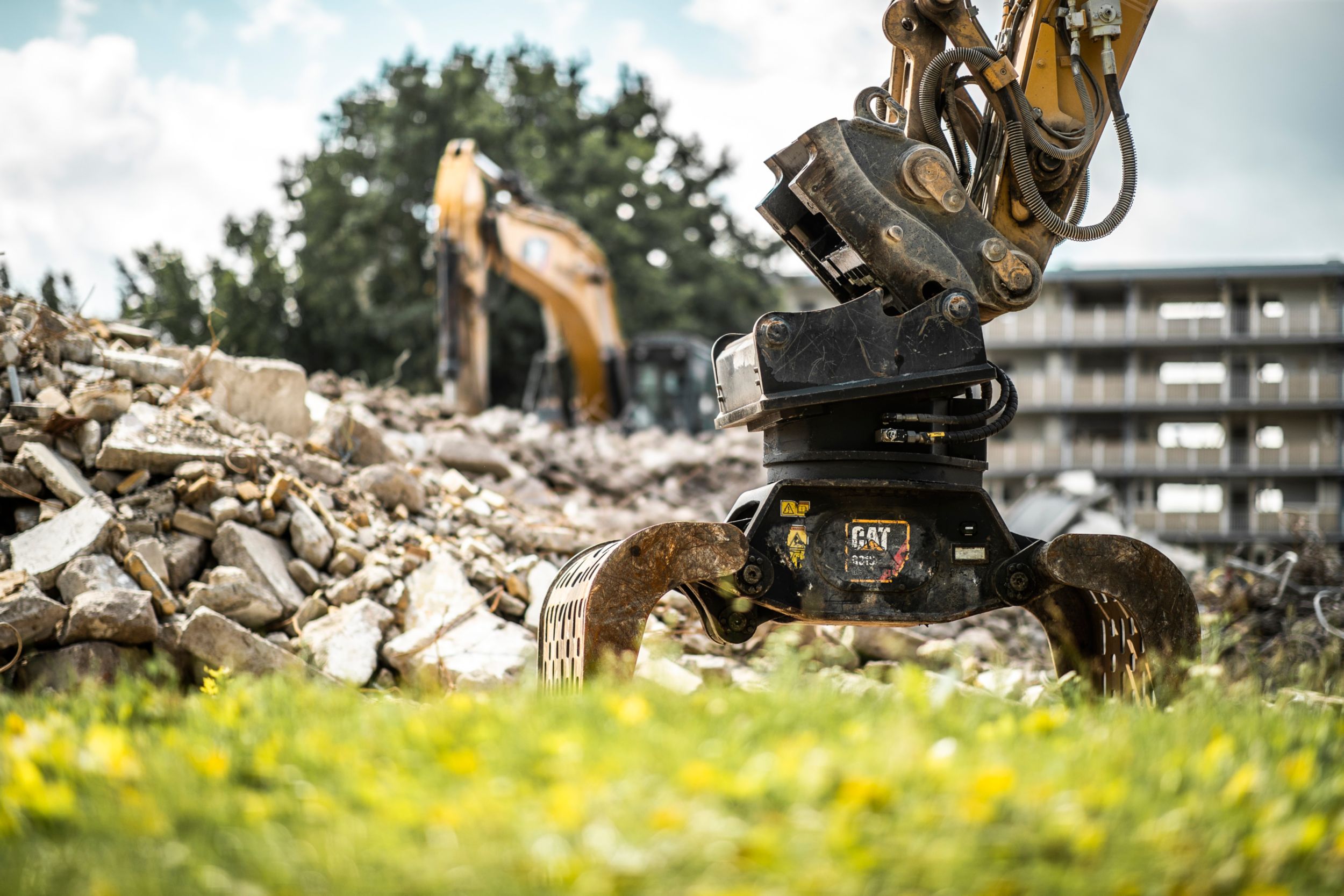

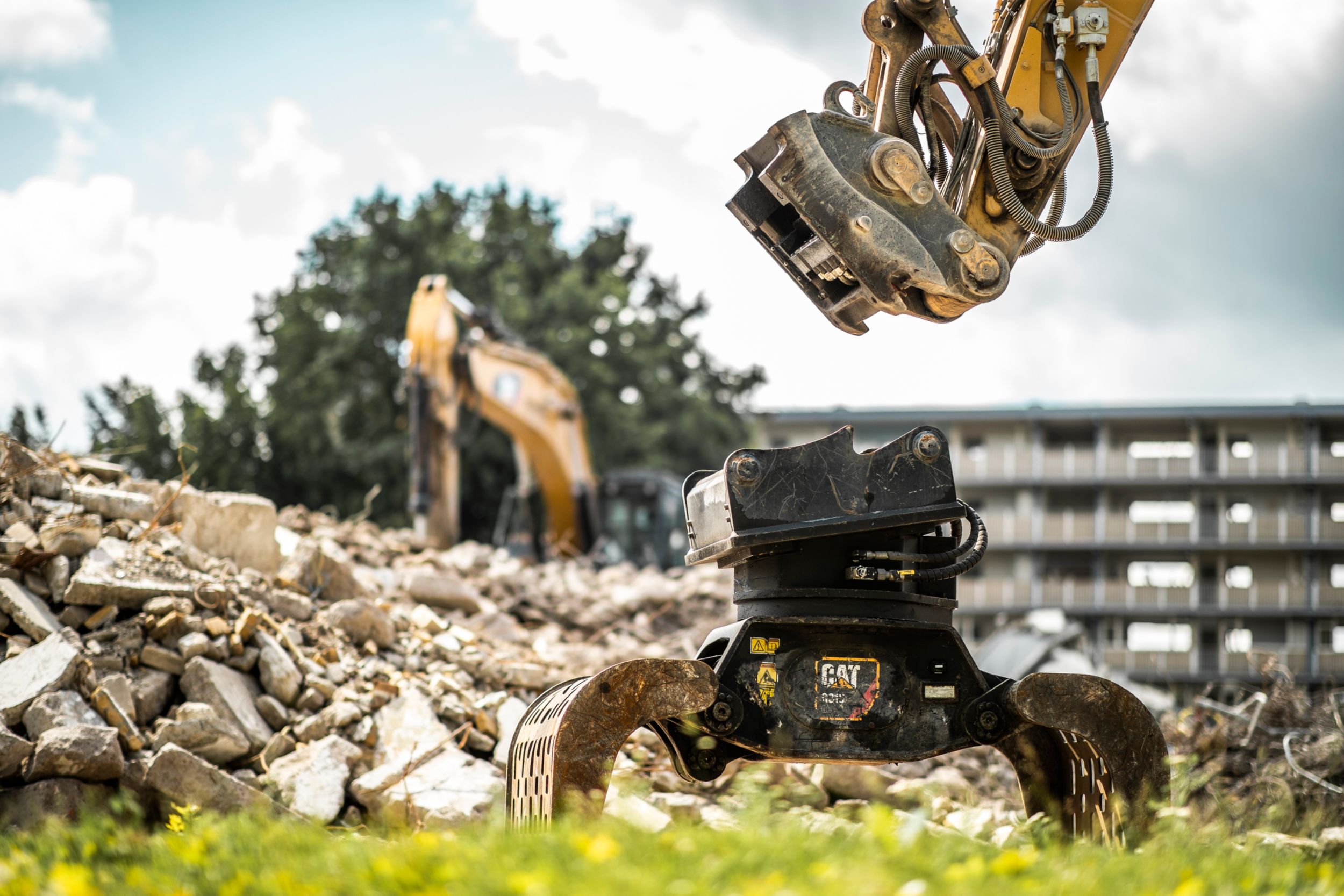

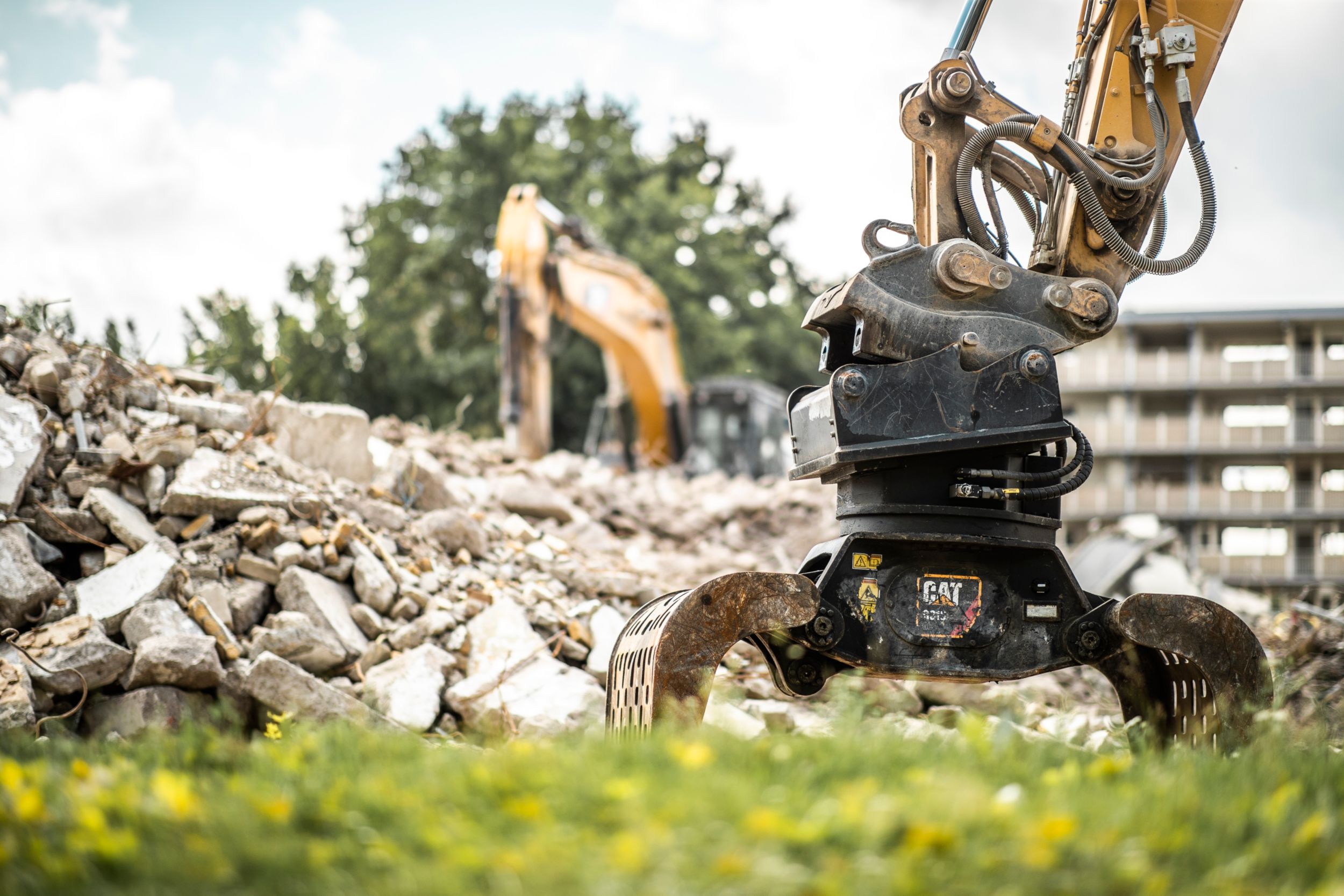

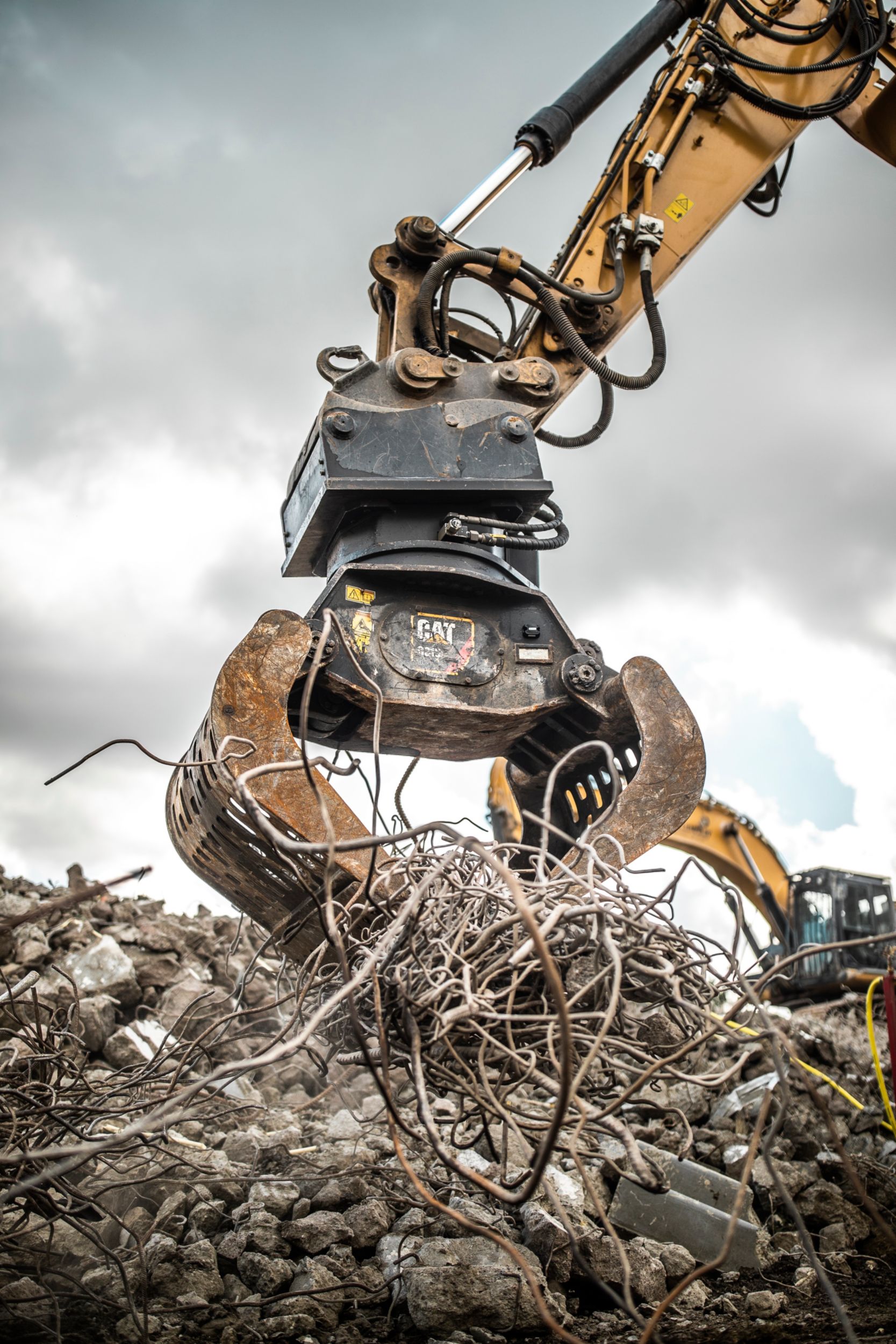

Cat® Hydraulic Connecting S Type Couplers connect to your machine's hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.
Machine Class 24-40
Height 20.2 in
Weight 959 lb
Maximum Operating Pressure 5076 psi
Machine Class 24-40
Height 20.2in
Length 39.5in
Width 25.5in
Lift Hook Capacity 10ton (US)
Weight 959lb
1" Hydraulic Connector Flow 100gal/min
1" Hydraulic Connectors (Mounted) 2
1/2" Hydraulic Connector Flow 21gal/min
1/2" Hydraulic Connectors (Mounted) 2
3/4" Hydraulic Connector Flow 59gal/min
3/4" Hydraulic Connectors (Optional) 2
Maximum Operating Pressure 5076psi
