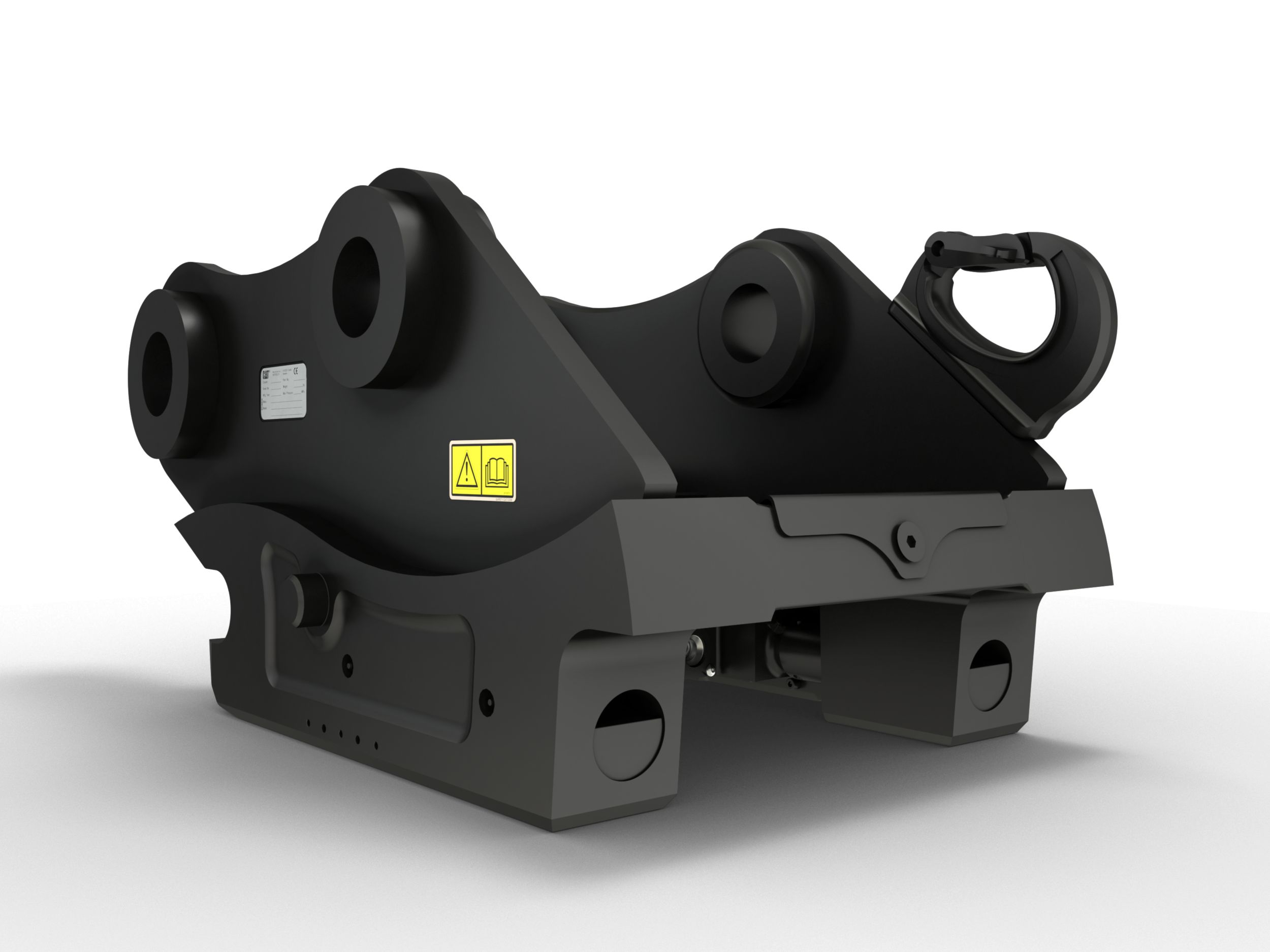

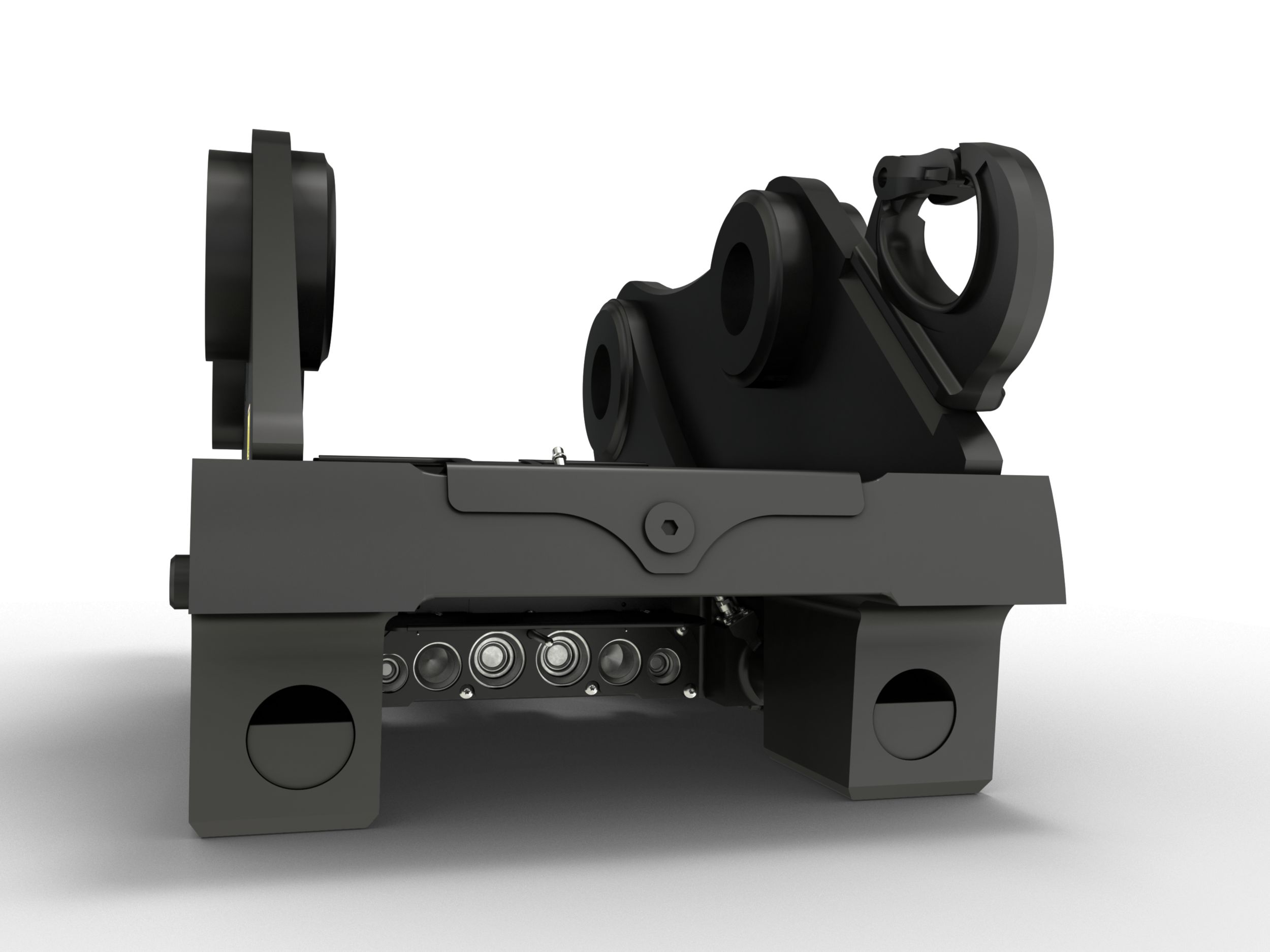

Hydraulic Connecting S Type Coupler HCS80: 583-0212

Hydraulic Connecting S Type Coupler HCS80: 583-0212

Cat® Hydraulic Connecting S Type Couplers connect to your machine's hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.

  • Machine Class 24-40

  • Weight 1027 lb

  • Height 21.2 in

  • Maximum Operating Pressure 5076 psi

Request a quote

Product Specifications



  • Machine Class 24-40


  • Lift Hook Capacity 10ton (US)

  • Weight 1027lb


  • Height 21.2in

  • Length 41in

  • Width 25.5in

Hydraulic Specifications

  • 1" Hydraulic Connector Flow 100gal/min

  • 1" Hydraulic Connectors (Mounted) 2

  • 1/2" Hydraulic Connector Flow 21gal/min

  • 1/2" Hydraulic Connectors (Mounted) 2

  • 3/4" Hydraulic Connector Flow 59gal/min

  • 3/4" Hydraulic Connectors (Optional) 2

  • Maximum Operating Pressure 5076psi
