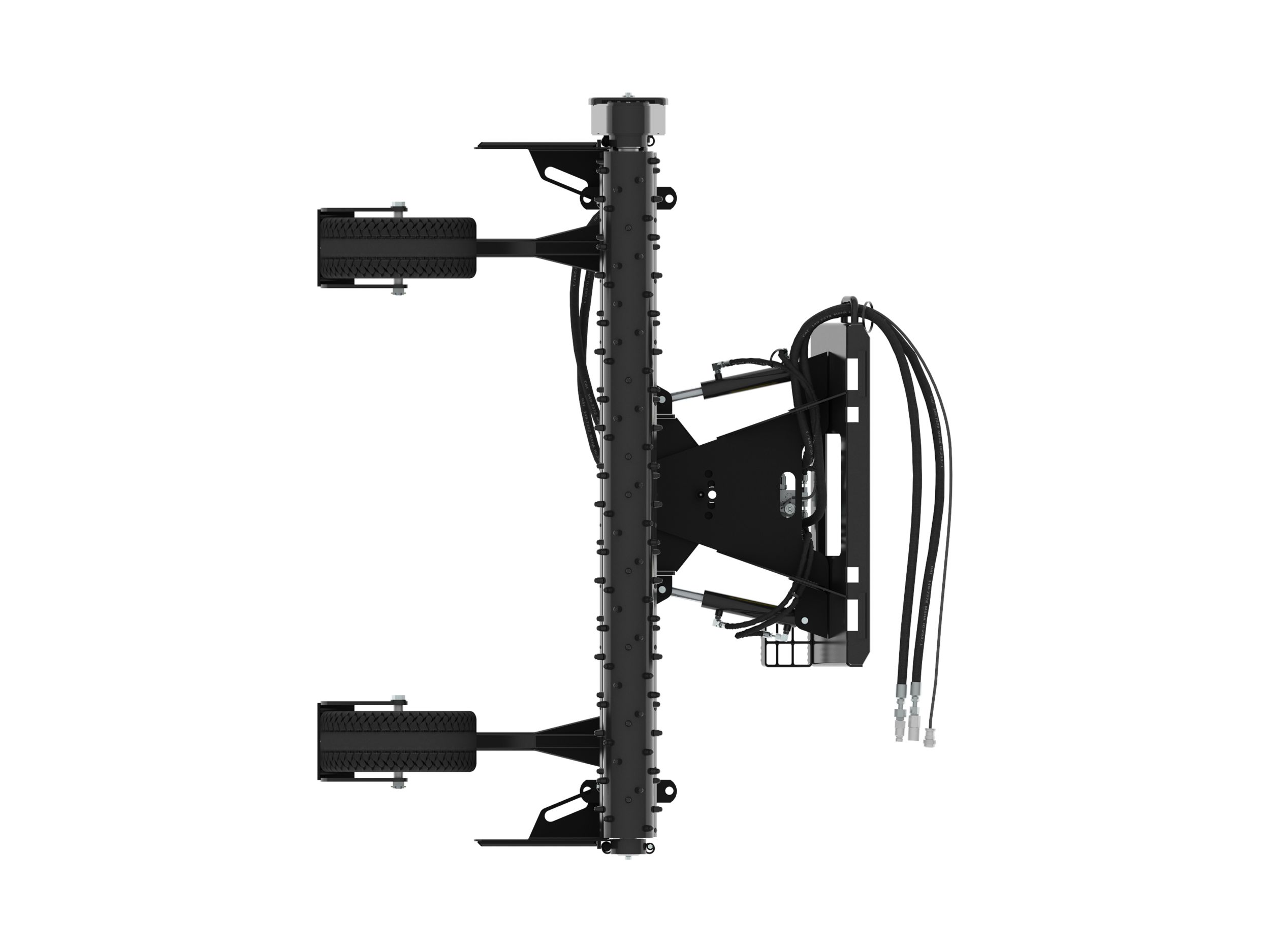

Cat® Power Box Rakes are ideal for clearing and preparing soil in general construction trench restoration, golf course construction and athletic field maintenance. They offer the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool. Its angling ability allows the operator to windrow collected debris for easy pickup and removal. The consistent milling action creates an ideal seedbed for excellent germination results, laying the groundwork for a perfect lawn. Wet, dry, weedy, hard and rocky soil can be dried, flattened, pulverized and conditioned for seed in one step.
Roller Width 90 in
Overall Width 99 in
Maximum Angle - Right or Left 20 degrees
Raking Width at Maximum Angle 85 in
Maximum Angle - Right or Left 20 degrees
Optimal Hydraulic Flow 49-87 L/min (13-23 gpm)
Optimal Hydraulic Pressure 170-241 bar (2500-3500 psi)
Overall Height 37.5in
Overall Length 72.4in
Overall Width 99in
Raking Width at Maximum Angle 85in
Required Hydraulics Standard Flow w/14 Pin Electrical
Roller Width 90in
Weight 1336lb
