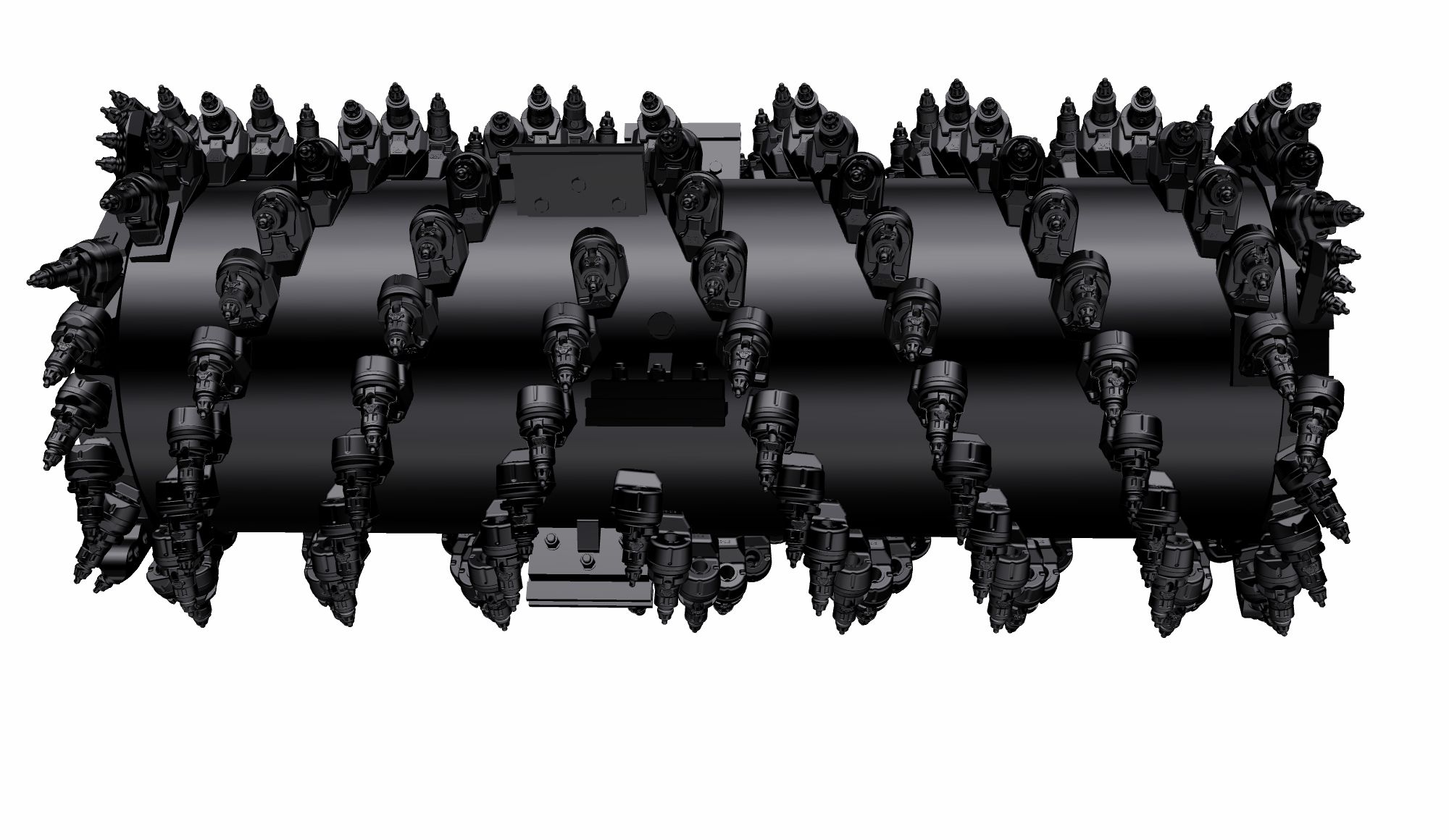

The System K standard milling rotor with 15 mm bit spacing is ideal for surface removal or complete removal of road surfaces at depths up to 330 mm (13 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.
Milling Width 88 in
Tool Spacing 0.6 in
Drum Diameter at Tips 42.2 in
Milling Depth (max) 13 in
Drum Diameter at Tips 42.2in
Milling Depth (max) 13in
Milling Width 88in
Number of Bits 185
PN# of Rotor Gp with Bits (Field installed) 517-1709
PN# of Rotor Gp with Coolant and Tools (Factory Installed) 517-1708
Tool Spacing 0.6in
