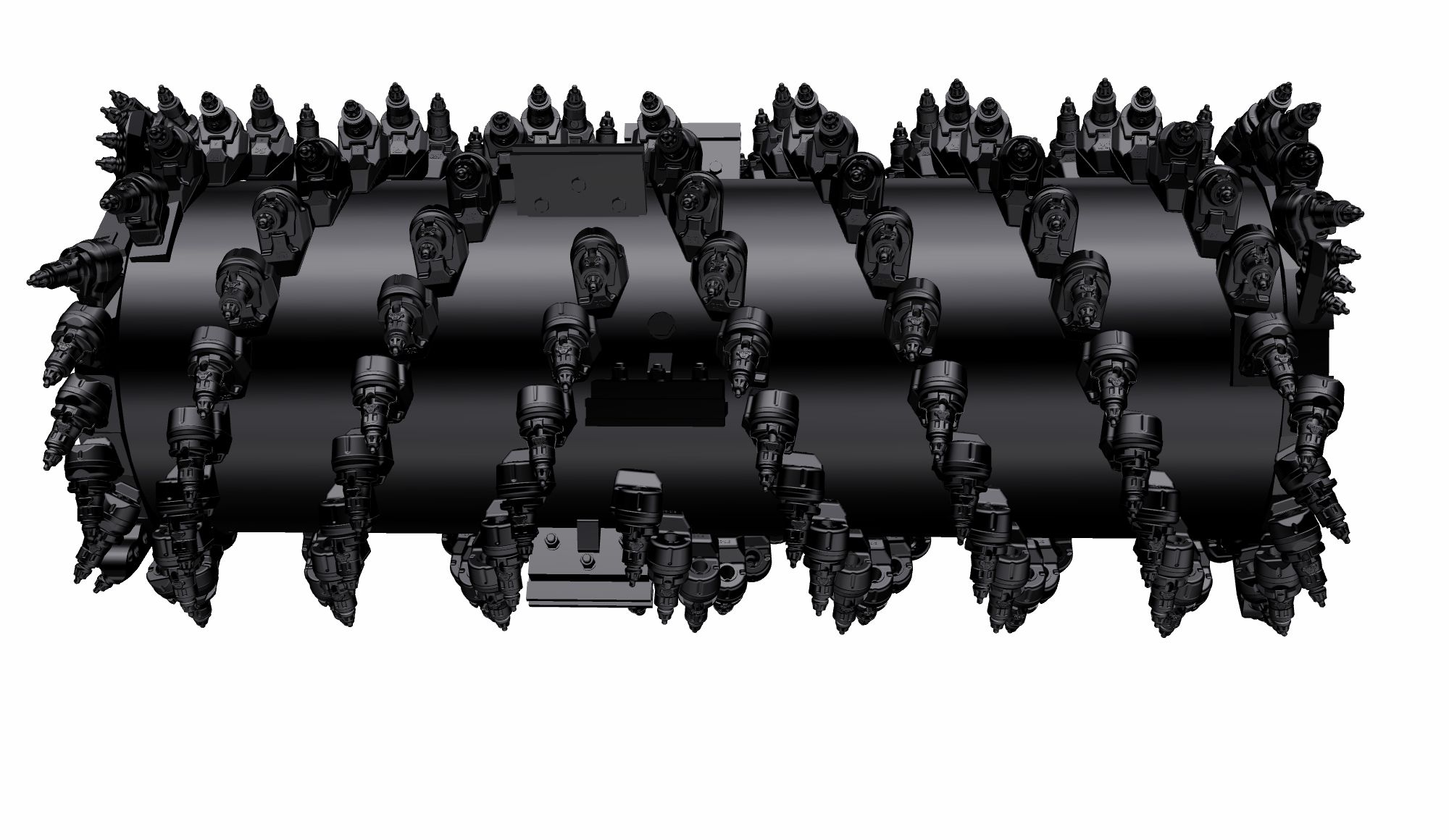

System K 2.2 m Milling Drum (15 mm spacing)

System K 2.2 m Milling Drum (15 mm spacing)

The System K standard milling rotor with 15 mm bit spacing is ideal for surface removal or complete removal of road surfaces at depths up to 330 mm (13 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.

  • Milling Width 88 in

  • Tool Spacing 0.6 in

  • Drum Diameter at Tips 42.2 in

  • Milling Depth (max) 13 in

Request a quote

Product Specifications

Specifications

Dimensions

  • Drum Diameter at Tips 42.2in

  • Milling Depth (max) 13in

  • Milling Width 88in

  • Number of Bits 185

  • PN# of Rotor Gp with Bits (Field installed) 517-1709

  • PN# of Rotor Gp with Coolant and Tools (Factory Installed) 517-1708

  • Tool Spacing 0.6in
