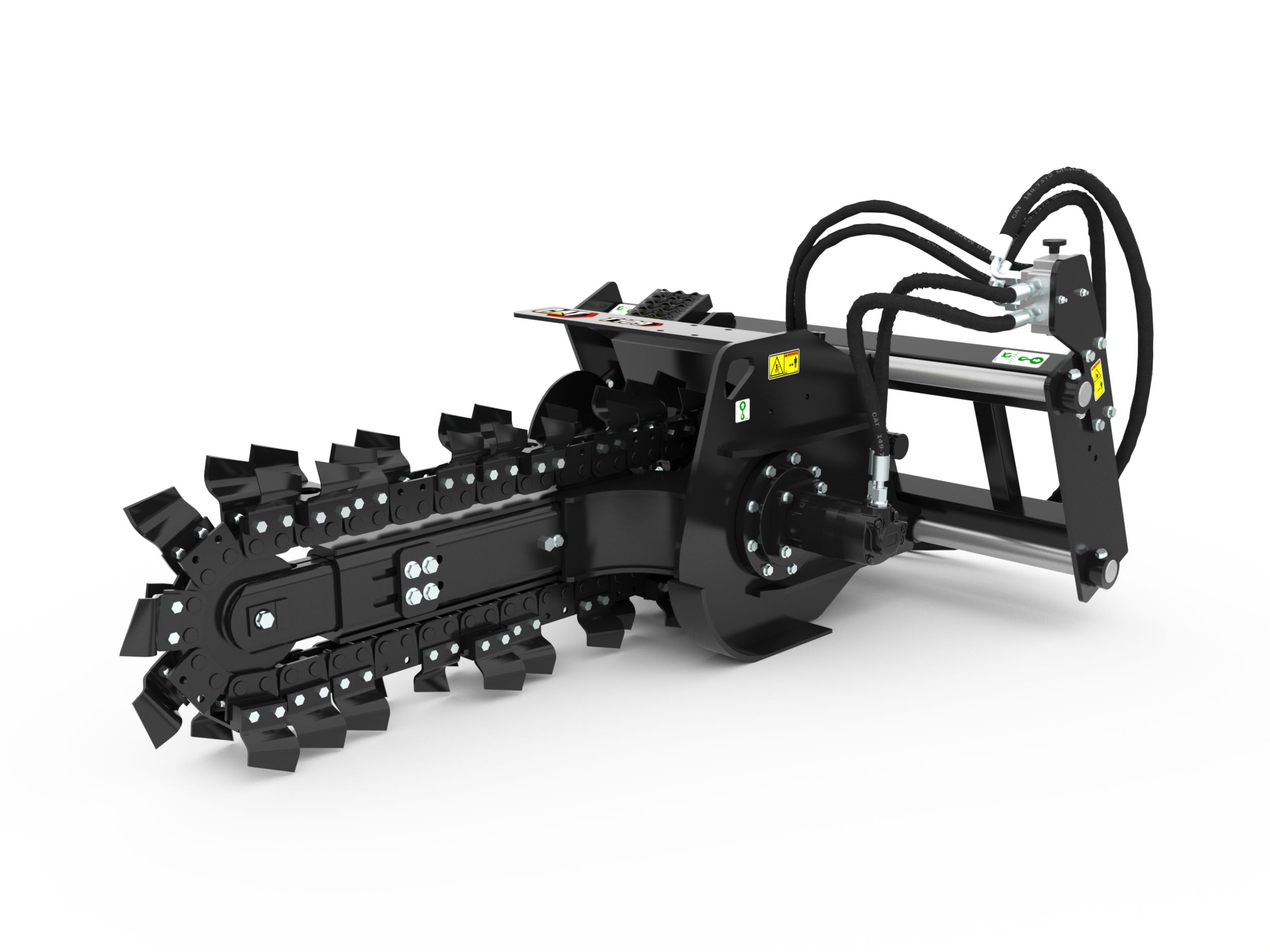

T109 Hydraulic Trencher with standard teeth

T109 Hydraulic Trencher with standard teeth

Cat® Trenchers are designed for cutting narrow straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe. Trenchers are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance.

  • Standard Boom Length 36 in

  • Cutting Width 8 in

  • Chain Type Standard

  • Required Hydraulics Standard Flow

Request a quote

Product Specifications

Specifications

Dimensions

  • Chain Type Standard

  • Cutting Width 8in

  • Drive Shaft Speed at Maximum Flow 203 rpm

  • Maximum Auger Clearance 21in

  • Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)

  • Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)

  • Optional Cutting Widths 152, 254, 305 mm (6, 10, 12 in)

  • Overall Height 30.9in

  • Overall Length 92.4in

  • Overall Width 56.1in

  • Required Hydraulics Standard Flow

  • Side Shift Travel 16.5in

  • Spoil Auger Diameter 18in

  • Standard Boom Length 36in

  • Weight 1091.9lb
