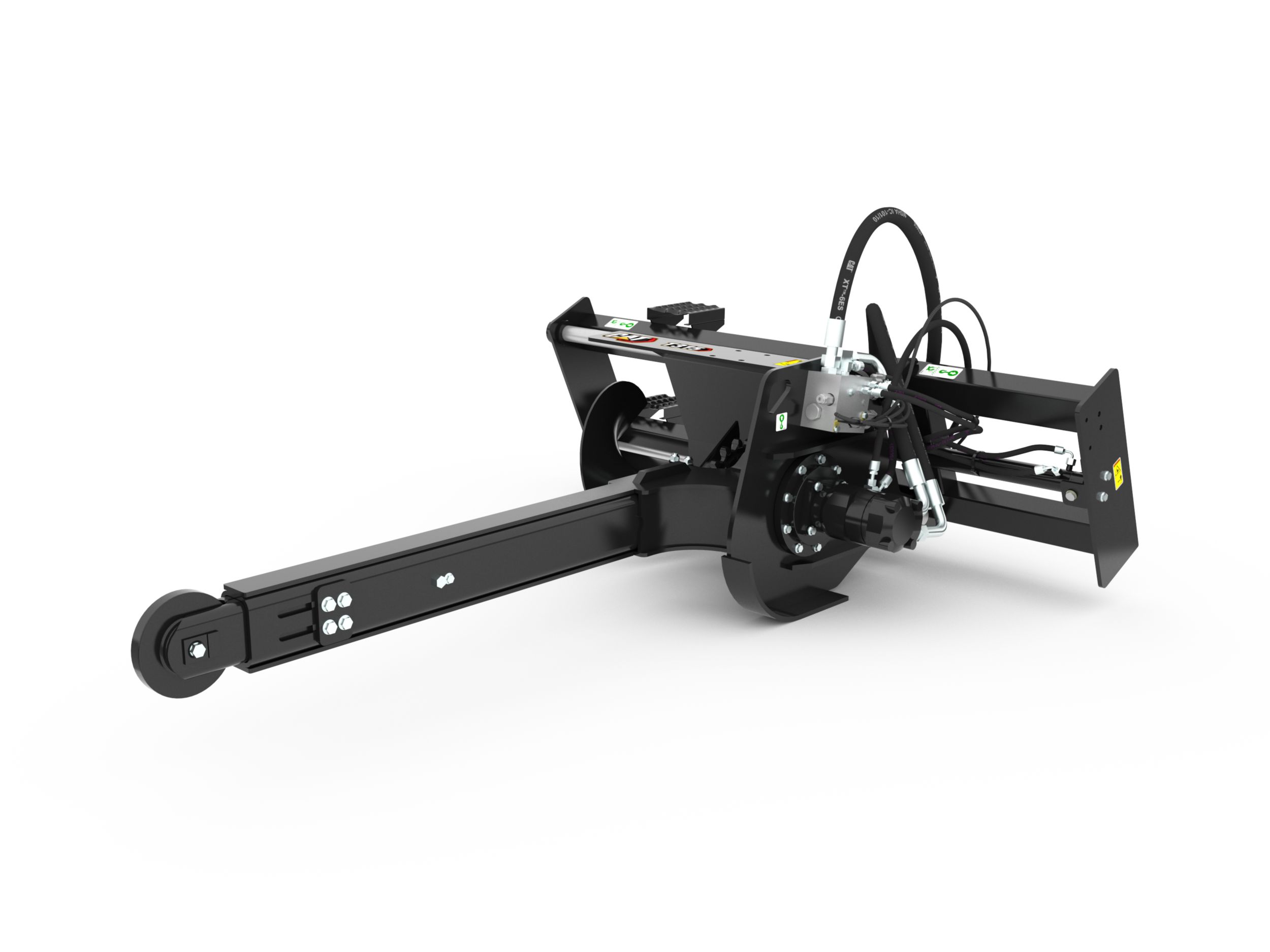

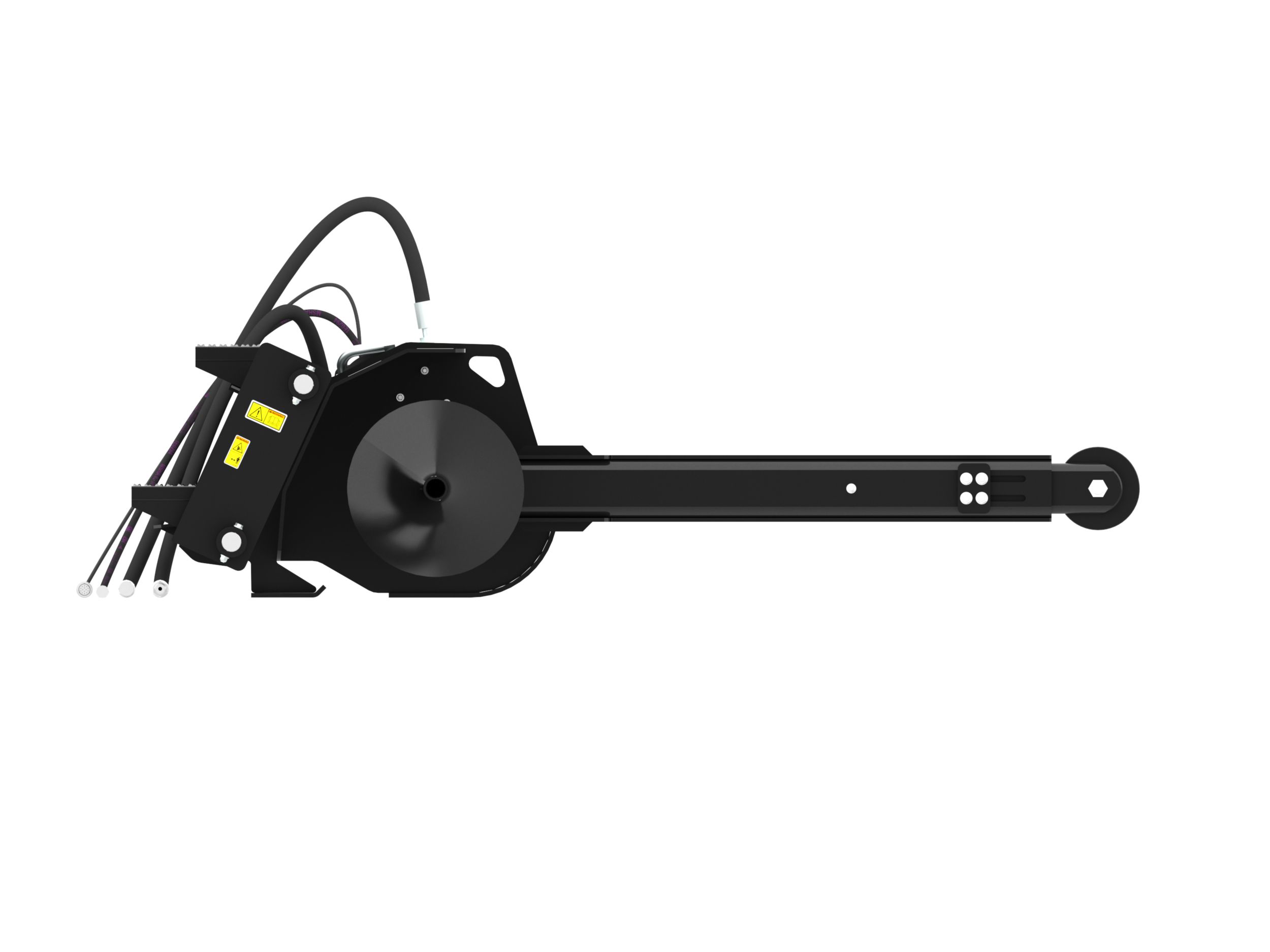

Cat® Trenchers are designed for cutting narrow straight trenches in the soil prior to laying electrical, telephone and cable lines, or water and gas pipe. Trenchers are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance.
Standard Boom Length 60 in
Required Hydraulics High Flow XPS
Overall Width 74.8 in
Overall Length 118.5 in
Drive Shaft Speed at Maximum Flow 207 rpm
Maximum Auger Clearance 21in
Optimal Hydraulic Flow 95-152 L/min (25-40 gpm)
Optimal Hydraulic Pressure 207-310 bar (3300-4500 psi)
Optional Cutting Widths 152, 203, 254, 305 mm (6, 8, 10, 12 in)
Overall Height 30.9in
Overall Length 118.5in
Overall Width 74.8in
Required Hydraulics High Flow XPS
Side Shift Travel 22in
Spoil Auger Diameter 18in
Standard Boom Length 60in
Weight 1054.9lb
