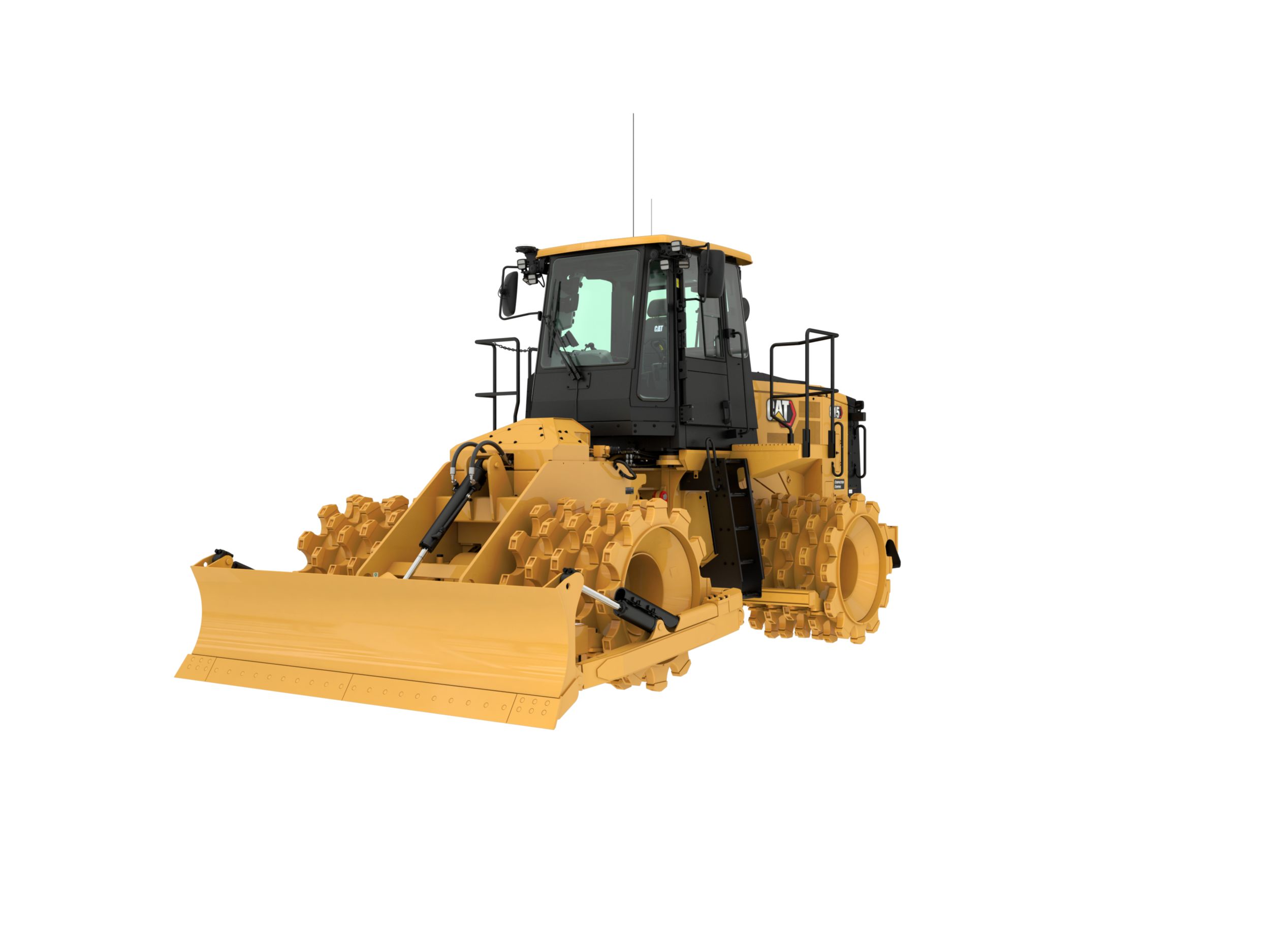

    815 Soil Compactor

    Download Product Brochure
    Email/Share
    Diesel Exhaust Fluid Tank*
    4.2 gal (US)
    Lift/Tilt System - Circuit
    Pilot operated LS valve with EH
    Lift/Tilt System
    Variable displacement piston
    Relief Valve Setting - Lift/Tilt
    3190 psi

    Service Refill Capacities

    Diesel Exhaust Fluid Tank*
    4.2gal (US)
    Diesel Exhaust Fluid Tank (Tier 4 Final/Stage IV Only)
    4.2gal (US)
    Differential - Final Drives - Front
    17.2gal (US)
    Fuel Tank
    132.1gal (US)
    Cooling System - Tier 3/Stage IIIA Equivalent
    19.3gal (US)
    Note
    All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm for EPA
    Engine Crankcase
    5.3gal (US)
    Differential - Final Drives - Rear
    17.2gal (US)
    Hydraulic Tank Only
    19.8gal (US)
    Transmission
    14.8gal (US)

    Hydraulic System - Lift/Tilt

    Lift/Tilt System - Circuit
    Pilot operated LS valve with EH
    Lift/Tilt System
    Variable displacement piston
    Relief Valve Setting - Lift/Tilt
    3190psi
    Pilot System
    Open center, fixed displacement gear
    Pilot Relief Valve Setting
    3046psi

    Hydraulic System - Steering

    Relief Valve Setting - Steering
    4003psi
    Total Steering Angle
    84
    Steering Cycle Times - High Idle
    3s
    Steering Cycle Times - Low Idle
    8.2s
    Steering Pressure Limited
    4003psi
    Steering System - Pump
    Piston – Variable Displacement
    Vehicle Articulation Angle
    84 degrees
    Steering System - Circuit
    Pilot, Load Sensing
    Maximum System Flow
    147 L/min @ 2,111 rpm (38.8 gal/min @ 2,111 rpm)

    Blades

    Total Operating Weight
    49652lb
    Maximum Depth of Cut
    0.73ft
    Maximum Lift Above Ground
    2.63ft
    Total Tilt Adjustment
    2.14ft
    Width - Over End Bits
    12.34ft
    Blade Tilt Angle - Left - Hydraulic
    5,5°
    Height - Including Cutting Edge
    2.82ft
    Width - Moldboard Length
    11.98ft
    Blade Tilt Adjustment - Right
    1ft
    Blade Tilt Adjustment - Left
    1.14ft
    Blade Tilt Angle - Right - Hydraulic
    4,8°

    Wheels

    Drum Width
    39in
    Drum Diameter
    40.5in
    Outside Diameter
    55.6in
    Tips per Wheel
    60
    Weight
    9720lb
    Width - Over Drums
    127.7in
    Tips per Row
    12

    Axles

    Front
    Planetary – Fixed
    Rear
    Planetary – Oscillating
    Oscillation Angle
    ±10

    Dimensions (Approximate)

    Centerline of Rear Axle to Bumper
    6.53ft
    Height - Top of Exhaust Pipe
    11.1ft
    Turning Radius - Inside of Push Arms
    8.27ft
    Hitch to Centerline of Front Axle
    5.5ft
    Height - Top of Beacon
    12.9ft
    Ground Clearance - Bumper
    2.18ft
    Ground Clearance
    1.23ft
    Width - Over Wheels
    10.64ft
    Height - Top of Hood
    8.6ft
    Length - With Blade on Ground
    23.48ft
    Height - Top of Cab Roof
    12ft
    Wheel Base
    11ft

    Engine

    Low Idle Speed
    800r/min
    Maximum Altitude - Without Derating
    9842.5ft
    High Idle Speed
    2270r/min

    Transmission

    Travel Speeds - Forward - Third
    11.3mile/h
    Travel Speeds - Forward - Second
    7.7mile/h
    Travel Speeds - Reverse - Second
    8.5mile/h
    Travel Speeds - Forward - First
    3.9mile/h
    Transmission Type
    Cat Planetary Power Shift
    Travel Speeds - Reverse - First
    4.5mile/h
    Travel Speeds - Reverse - Third
    11.4mile/h

    Braking System

    Parking Brake
    Drum and Shoe, Spring Applied, Hydraulic Released
    Service Brakes
    Single Disc Wet (Enclosed) 2 WHL

    Hydraulic System

    Tilt Cylinder, Double Acting - Bore and Stroke
    101.6 mm × 167 mm (4 in × 6.6 in)
    Lift Cylinder, Double Acting - Bore and Stroke
    101.6 mm × 627 mm (4 in × 24.7 in)
    Pump Flow at 2,111 rpm
    23.5gal/min
    Maximum Supply Pressure
    2930psi
    Main Relief Pressure
    3190psi

    Standard Equipment:

    • Note
      • Standard and optional equipment may vary. Consult your Cat dealer for details.
    • Power Train
      • Advanced Productivity Electronic Control System (APECS)
      • Air to air aftercooler
      • Brakes, full hydraulic, enclosed, wet multiple disc service brakes
      • Cat clean emission module (Tier 4 Final/Stage IV only)
      • Electro-hydraulic parking brake
      • Electronic Clutch Pressure Control (ECPC)
      • Engine, Cat C7.1 (configured for two emissions options): – Tier 4 Final/Stage V – Tier 3/Stage IIIA equivalent
      • Engine driven cooling fan – suction
      • Fuel priming pump (electric)
      • Fuel to air cooler
      • Ground level engine shutoff
      • Muffler (under hood) (Tier 3/Stage IIIA equivalent only)
      • Radiator, unit core
      • Starting aid (ether)
      • Throttle lock
      • Torque converter
      • Transmission, planetary, with 3F/3R speed range control
    • Electrical
      • Alarm, back-up
      • Alternator, 150 amp
      • Batteries, maintenance-free
      • Electrical system, 24V
      • Ground level lockable master disconnect switch
      • Lights, directional (rear)
      • Light, warning switched (LED strobe)
      • Lighting system, (front and rear)
      • Starter, electric
      • Starting receptacle for emergency start
    • Operator Environment
      • 12V power port for mobile phone or laptop connection
      • AccuGrade™ mapping (ready)
      • Air conditioner
      • Cab, sound-suppressed pressurized
      • Cab door, sliding window (LH)
      • Cat Compaction Control (ready)
      • Cat Detect: Object Detection (ready)
      • Coat and hard hat hooks
      • Finger tip shifting controls
      • Flip-up armrest
      • Heater and defroster
      • Horn, electric
      • Hydraulic controls – seat mounted
      • Implement hydraulic lockout
      • Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage V only) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
      • Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
      • Light, (dome) cab
      • Lunch box and beverage holders
      • Mirror, internal (panoramic)
      • Mirrors, rearview (externally mounted)
      • Radio ready for entertainment: – Antenna – Speakers – Converter (12V, 10-15 amp)
      • Seat, Cat Premium Plus (leather)
      • Seat belt with minder, retractable, 76 mm (3 in) wide
      • STIC control system with lockout
      • Sun visor, front
      • Tinted glass
      • Transmission gear (indicator)
      • Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles – Event indicator light on rear grill
      • Wet-arm wipers/washers (front and rear): – Intermittent wipers (front and rear)
    • Tires, Rims And Wheels
      • Wheels, tamping foot
    • Guards
      • Cleaner bars with teeth
      • Guards, crankcase and power train
      • Guard, driveshaft
    • Fluids
      • Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
    • Other Standard Equipment
      • DEF tank fill gauge
      • Doors, service access (locking)
      • Ecology drains for engine, radiator, transmission, hydraulic tank
      • Engine, crankcase, 500 hour interval with CJ-4 oil
      • Emergency platform egress
      • Fire suppression ready
      • Fuel tank, 500 L (132.1 gal)
      • Hitch, drawbar with pin
      • Hoses, Cat XT™
      • Hydraulic, engine, and transmission oil coolers
      • Oil change system, high speed
      • Oil sampling valves
      • Steering, load sensing
      • Total hydraulic filtration system
      • Vandalism protection caplocks
      • Venturi stack
    • Standard Attachments – Hydraulics
      • Hydraulics: – Standard or EU and Canada
    • Standard Attachments – Operator Environment
      • Glass (window): – rubber-mounted glass
      • Precleaner (cab): – powered
      • Seat (cab): – heated and ventilated
      • Mirrors – cab: – Standard or heated
    • Standard Attachments – Power Train
      • Axles: – Standard or non-spin rear
    • Standard Attachments – Special Arrangements
      • Engine Precleaners: – Turbine or dual stage
    • Standard Attachments – Electrical
      • Lights: – Standard or LED
    • Standard Attachments – Fuel Systems
      • Fuel tank: – Non-fast or fast fill
    • Standard Attachments – Technology Products
      • Product Link: – GSM, satellite
    • Standard Attachments – Cleaner Bars
      • Cleaner bars: – Standard or abrasive
    • Standard Attachments – Blades
      • Blades: – Straight or tilt-straight

    Optional Equipment:

    • Note
      • Standard and optional equipment may vary. Consult your Cat dealer for details.
    • Operator Environment
      • Camera, rear vision
      • Radio, AM/FM/AUX/USB/BLUETOOTH
      • Radio, CB (ready)
    • Technology Products
      • Compaction control, basic
    • Other Attachments
      • Sound suppression (required for Brazil)
    • Fluids
      • Antifreeze, –50° C (–58° F)
    • Starting Aids
      • Heater, engine coolant, 120V
      • Heater, engine coolant, 240V
    • Miscellaneous
      • Film (ANSI) (Tier 4 Final/Stage V only)
      • EU certification (Tier 4 Final/Stage V only)
      • Plate – year of manufacture (Tier 3/Stage IIIA equivalent only)
