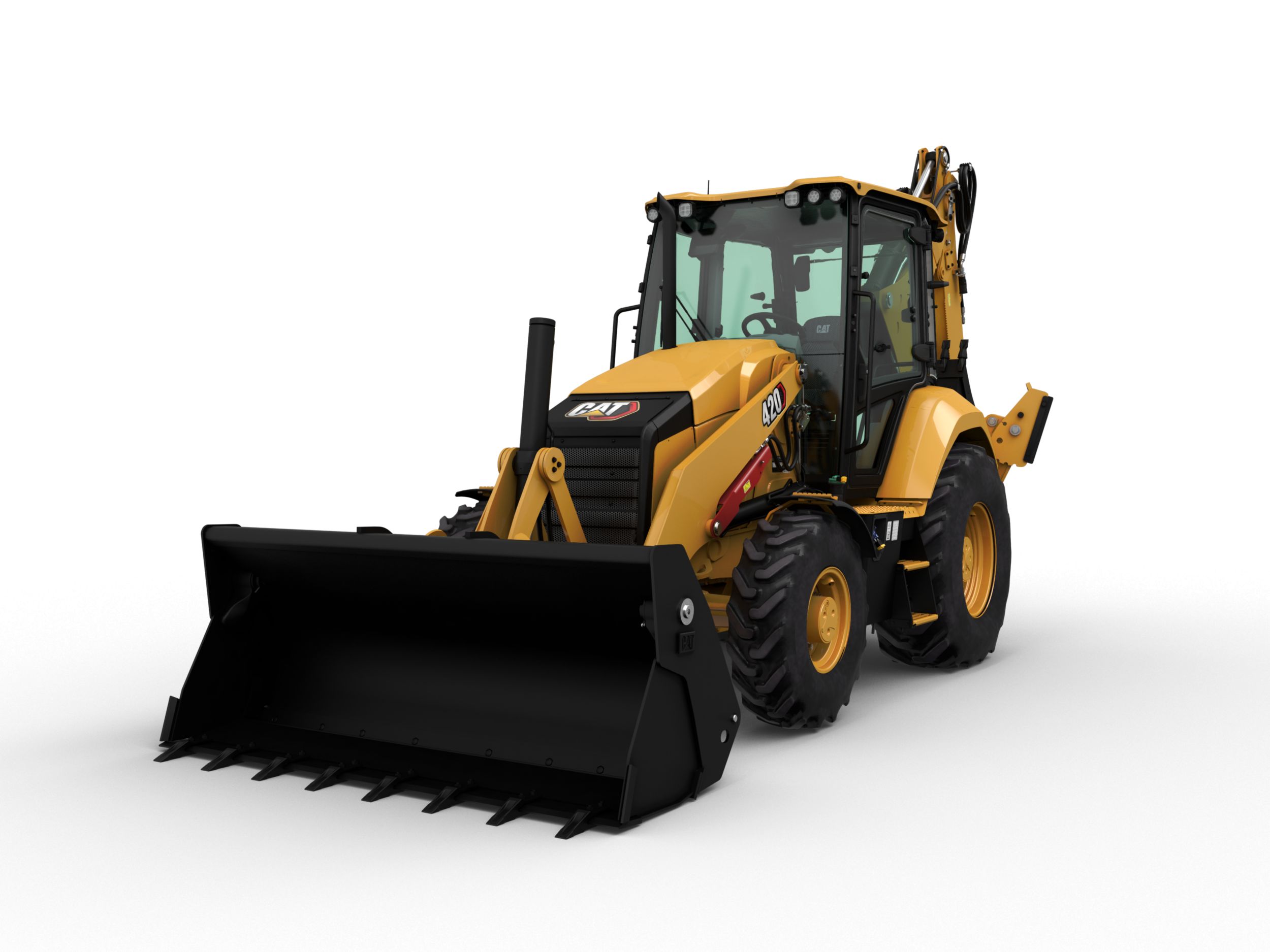

Net Power - SAE J1349 92 HP (68 kW) / 103 HP (76 kW)
Dig Depth - Standard 14 ft
Operating Weight - Maximum 24251 lb
Cab - ROPS/FOPS 320 lb
Dimensions - Bore 3.86in
Dimensions - Stroke 4.72in
Displacement 220in³
Emissions Engine meets Tier 4 Final/Stage V emission standards.
Engine Model C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled
Net Peak Power Rating - ISO 9249 at 1,800 rpm 105hp
Net Peak Power Rating @ 1,800 rpm - SAE J1349 105hp
Net Power - SAE J1349 92 HP (68 kW) / 103 HP (76 kW)
Net Power Rating at 2,200 rpm - ISO 9249 91hp
Net Power Rating at 2,200 rpm - SAE J1349 92hp
Net Torque Rise - 1,400 rpm 47%
Net Torque Rise - 1,400 rpm - SAE J1349 322ft-lb
Power Rating Conditions - No De-Rating Required Up To 10000ft
Ratings at 2,200 rpm - Gross Power ISO 14396 100hp
Ratings at 2,200 rpm - Gross Power SAE J1995 102hp
Dig Depth - Standard 14ft
Air Conditioning 99lb
All-Wheel Drive STD
Cab - ROPS/FOPS 320lb
Counterweights, base 256lb
Counterweights, base - Maximum 1014lb
Counterweights, base - Stackable, one 529lb
Extendible Stick (excludes ft. counterweight) 595lb
Loader QC 540lb
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017lb
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642lb
Note Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP loader bucket, 610 mm (24 in) standard duty hoe bucket, 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator
Operating Weight (estimated) 17271lb
Operating Weight - Maximum 24251lb
Operating Weight - Maximum - ROPS Capacity 24251lb
Power-Shift Transmission STD
Ride Control 33lb
Pump Capacity at 2,200 rpm 49.4gal/min
Pump Type Variable-flow, Axial Piston
System Pressure - Backhoe 3626psi
System Pressure - Loader 3626psi
Type Closed Center
Note (1) Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires.
Note (2) *Limited by engine speed to 40 km/h (25 mph).
Power Shift Transmission - Standard - Forward - 1st 3.7mile/h
Power Shift Transmission - Standard - Forward - 2nd 5.8mile/h
Power Shift Transmission - Standard - Forward - 3rd 12mile/h
Power Shift Transmission - Standard - Forward - 4th 25mile/h
Power Shift Transmission - Standard - Reverse - 1st 3.7mile/h
Power Shift Transmission - Standard - Reverse - 2nd 7.7mile/h
Power Shift Transmission - Standard - Reverse - 3rd 17mile/h
Power-Shift Transmission - Optional - Forward - 2nd 5.8mile/h
Power-Shift Transmission - Optional - Forward - 3rd 8mile/h
Power-Shift Transmission - Optional - Forward - 4th 12mile/h
Power-Shift Transmission - Optional - Forward - 5th 17mile/h
Power-Shift Transmission - Optional - Forward - 6th 25mile/h
Power-Shift Transmission - Optional - Forward -1st 3.7mile/h
Power-Shift Transmission - Optional - Reverse - 1st 3.7mile/h
Power-Shift Transmission - Optional - Reverse - 2nd 7.7mile/h
Power-Shift Transmission - Optional - Reverse - 3rd 17mile/h
Power-Shift Transmission with LTC - Optional - Forward - 1st 3.7mile/h
Power-Shift Transmission with LTC - Optional - Forward - 2nd 5.8mile/h
Power-Shift Transmission with LTC - Optional - Forward - 3rd 8mile/h
Power-Shift Transmission with LTC - Optional - Forward - 4th 12mile/h
Power-Shift Transmission with LTC - Optional - Forward - 5th 17mile/h
Power-Shift Transmission with LTC - Optional - Forward - 5th LTC 18mile/h
Power-Shift Transmission with LTC - Optional - Forward - 6th 25mile/h
Power-Shift Transmission with LTC - Optional - Forward - 6th LTC* 25mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 1st 3.7mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 2nd 7.7mile/h
Power-Shift Transmission with LTC - Optional - Reverse - 3rd 17mile/h
Cooling System with Air Conditioning 4.8gal (US)
Diesel Exhaust Fluid (DEF) 5gal (US)
Engine Oil - With Filter 2.4gal (US)
Front Axle (AWD) 2.9gal (US)
Front Axle (AWD) - Planetaries 0.2gal (US)
Fuel Tank 42.3gal (US)
Hydraulic System 25.1gal (US)
Hydraulic Tank 11.1gal (US)
Rear Axle 4.2gal (US)
Rear Axle - Planetaries 0.4gal (US)
Transmission - Power Shift - AWD 5gal (US)
Transmission - Power Shuttle - AWD 4.8gal (US)
Front Axle, AWD - Dynamic 19841lb
Front Axle, AWD - Static 51808lb
Rear Axle - Dynamic 22046lb
Rear Axle - Static 58422lb
Axle Oscillation 11°
Bore 2.6in
Cylinder One Double-Acting
Power Steering Hydrostatic
Rod Diameter 1.6in
Stroke 4.2in
Turning Circle - (inner wheel not braked) - Outside Front Wheels 26.92ft
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket 35.25ft
Type Front Wheel
Recyclability 92%
Adjustable auxiliary controls, backhoe loader
Air cleaner
Alarm, back-up
Audible system fault alarm
Automatic Engine Speed Control (AESC)
Battery, maintenance-free, 850 CCA
Battery disconnect switch
Boom transport lock
Brace, lift cylinder
Brake, parking, Spring Applied Hydraulically Released (SAHR)
Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
Bucket level indicator
Canopy, ROPS/FOPS
Cat cushion swing system
Coat restraint
Coolant/antifreeze, extended life
Dome light (cab only)
Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
Differential lock, loader joystick
Drink holders, two
Engine, Cat C3.6 (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
Engine enclosure, sound suppression removal panels
Face seals, O-ring
Fan, suction and guard
Fast reversing shuttle, all gears
Fenders, rear
Filters, spin-on: fuel, engine oil, transmission oil, water separator
Filters, bowl and cartridge: hydraulic fluid
Flashing hazards/signal lights
Floor mat
Four wheel drive
Four wheel drive shaft guard
Fuel tank, fully enclosed
Fully hinged front grill for cooling package cleaning access
Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
Ground level fuel fill and DEF fill
Halogen lights, working (2 front, 2 rear)
High ambient cooling package
Hood lock, inside cab
Hydraulic hose, XT™
Hydraulic oil cooler
Hydraulic oil level sight gauge
Hydraulic valves, loader 2 function
Hydraulic valves, backhoe 4 function
Hydraulics, load sensing with variable displacement piston pump
Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
Instrument panel lights
Joystick controls: pilot operated, excavator-style with pattern changer
Key start/stop system
LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
Loader, self-leveling, return-to-dig and transmission disconnect switch
Loader, single tilt
Mirror, interior, rearview
One-touch low idle
Open circuit breather
Pattern changer, in cab
Power receptacle, 5 volt USB, 1 internal
Power receptacle, 12 volt, 2 internal, 1 external
Power steering, hydrostatic
Product Link™, satellite, network manager
Product Link, cellular, network manager
Seat belt, retractable, 51 mm (2 in)
Socket, two roof
Stabilizer shoes, street
Steering knob
Seat, air suspension, vinyl cover, with armrest
Stabilizers, EH Control, Auto-UP
Starting system, glow plugs
Steering column, tilting, telescopic
Storage compartment, lockable
Storage tray
Stop and tail lights
Swing transport lock
Tires
Toolbox, external, lockable
Torque converter
Throttle, hand and foot, electronic
Transmission, 4 speed, powershift
Transmission neutralizer switch
Transport tie-downs
Vandalism locks, four
Warning horn, electric
Auxiliary hydraulics, loader, adjustable flow
Auxiliary hydraulics, rear, adjustable flow
Battery, additional, 850 CCA
Cab, deluxe
Cold weather fuel (–30° C/–22° F)
Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
Fenders, front with integral steps
Guard, boom protection plate
Guard, stabilizer, rock
Hydraulic valves, loader with auxiliary roller thumb control (3rd valve for MP or Quick Coupler)
Hydraulic valves, backhoe (5th and 6th function)
Hydraulic lines, combined function auxiliary
LED lights, working (2 front, 2 rear)
Quick Coupler, hydraulic, dual lock
Quick Coupler, manual, dual lock
Quick Coupler, manual, pin lock
Radio and CD player, Bluetooth®
Ride Control
Rotating beacon, magnetic mount
Seat, air suspension, fabric with armrest
Seat, air suspension, fabric with armrest, heated
Seat belt, retractable, 75 mm (3 in)
Security system, Bluetooth
Security system, operator display
Side mirrors, cab, external
Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
Stabilizer pads, reversible
Stick, extendible
Touch screen LCD Display : engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
Transmission, AutoShift with lock-up torque converter, 6 speed
Vandalism protection, gauge cover
Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
