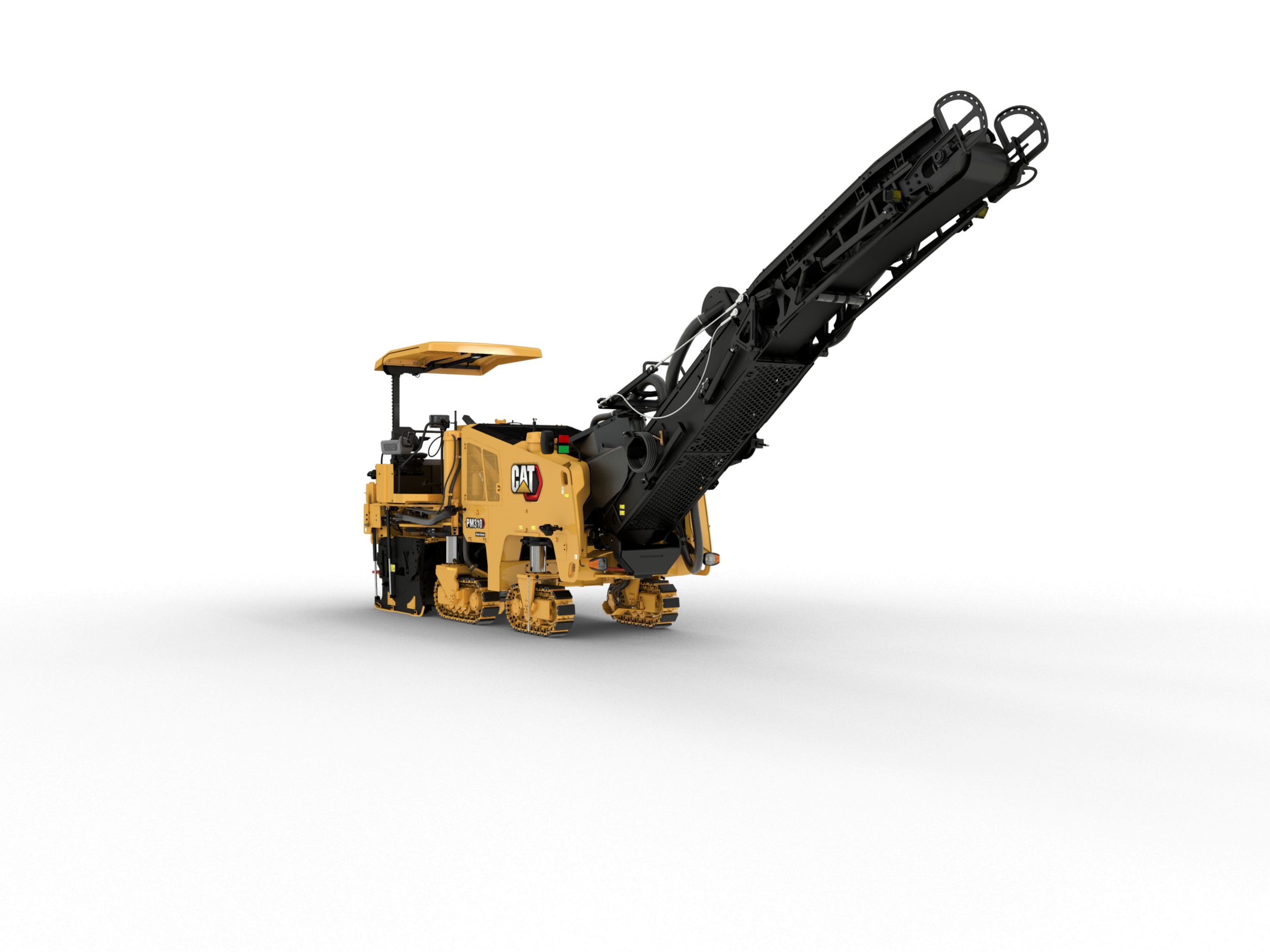

PM310 Track Undercarriage Cold Planer

PM310 Track Undercarriage Cold Planer

Milling Width
39.4 in
Rated Power
336.6 HP
Operating Weight
48016 lb
Maximum Milling Depth
13 in

Cutting System

Milling Width
39.4in
Maximum Milling Depth
13in
Rotor Speeds
97 / 109 / 121 rpm
Number of Bits
91

Power Train

Rated Power
336.6HP
Engine
C9.3
Maximum Travel Speed
3.4mile/h
Maximum Milling Speed
108ft/min

Weights

Operating Weight
48016lb
Transport Weight
44463lb

Dimensions

Operating Length - Conveyor Up
36.45ft
Operating Width
8.33ft
Height - Canopy
12.3ft
Maximum Truck Clearance
15.42ft
Minimum Right Cutting Radius
6.3ft
Minimum Left Cutting Radius
13.58ft
Conveyor Swing
60 degrees from center
Transport Length
30.58ft
Transport Width
8.33lb/in
Transport Height
9.84ft

Service Refill Capacities

Water Spray System Tank
332.9gal (US)
Hydraulic Tank
15.6gal (US)
Diesel Exhaust Fluid (DEF) Tank
5.8gal (US)
Engine Oil
7.9gal (US)
Cooling System
16.4gal (US)
Fuel Tank
158.5gal (US)

Standard Equipment:

  • Operator Environment
    • Sliding operator station
    • Suspension seat
    • Ground control keypad
    • Single high-resolution LCD touchscreen display
    • 12-volt power receptacle
  • Cat Connect Technology
    • Remote Troubleshoot capability
    • Cat Product Link
    • Cat GRADE
  • Conveyor
    • Material removal boost feature
  • Rotor System
    • Automatic plunge-cut
    • Automatic transition feature
    • Obstacle jump
    • Three cutting speeds
    • System K Rotor - Standard (15 mm)
  • Powertrain
    • Auto engine idle control
    • High capacity cooling system
    • Automatic load control
    • Wheel undercarriage
  • Hydraulic System
    • Traction control
  • Service And Maintenance
    • Ports for Scheduled Oil Sampling (S·O·S℠)
    • Platform-level engine oil dipsticks
    • 1260 L (333 gal) onboard water tank
    • Side water fill valve
    • Water spray system
  • Safety And Security
    • Platform handrails
    • Signaling/warning horn
    • Halogen work lighting

Optional Equipment:

  • Operator Environment
    • Additional high-resolution LCD touchscreen display
    • Powered canopy
    • Windscreens
    • Remote camera with cut edge guidance
  • Cat Connect Technology
    • Sonic sensor (averaging or string line)
    • Ground level grade controls
  • Conveyor
    • Dust abatement system
    • Hydraulic folding conveyor
    • Remote camera (loading conveyor)
  • Rotor System
    • System K Rotor - Course (18 mm)
    • System K Rotor - Fine (8 mm)
    • Diamond bits
    • Pneumatic bit removal tool
    • Tool holder extractor
    • Rotor turning device
    • Ballast kit
  • Powertrain
    • Track undercarriage
    • CE certificate
  • Service And Maintenance
    • Air compressor
    • Accessory drive system
    • High pressure washdown
    • Low pressure washdown
    • Additional water spray system
    • Remote Flash
  • Safety And Security
    • LED work lighting (fixed, pole mounted, magnetic)
    • Warning beacon (fixed)
    • Truck signal lights
    • Roading Lights
    • Remote cameras (rear, front, cutting edges)
