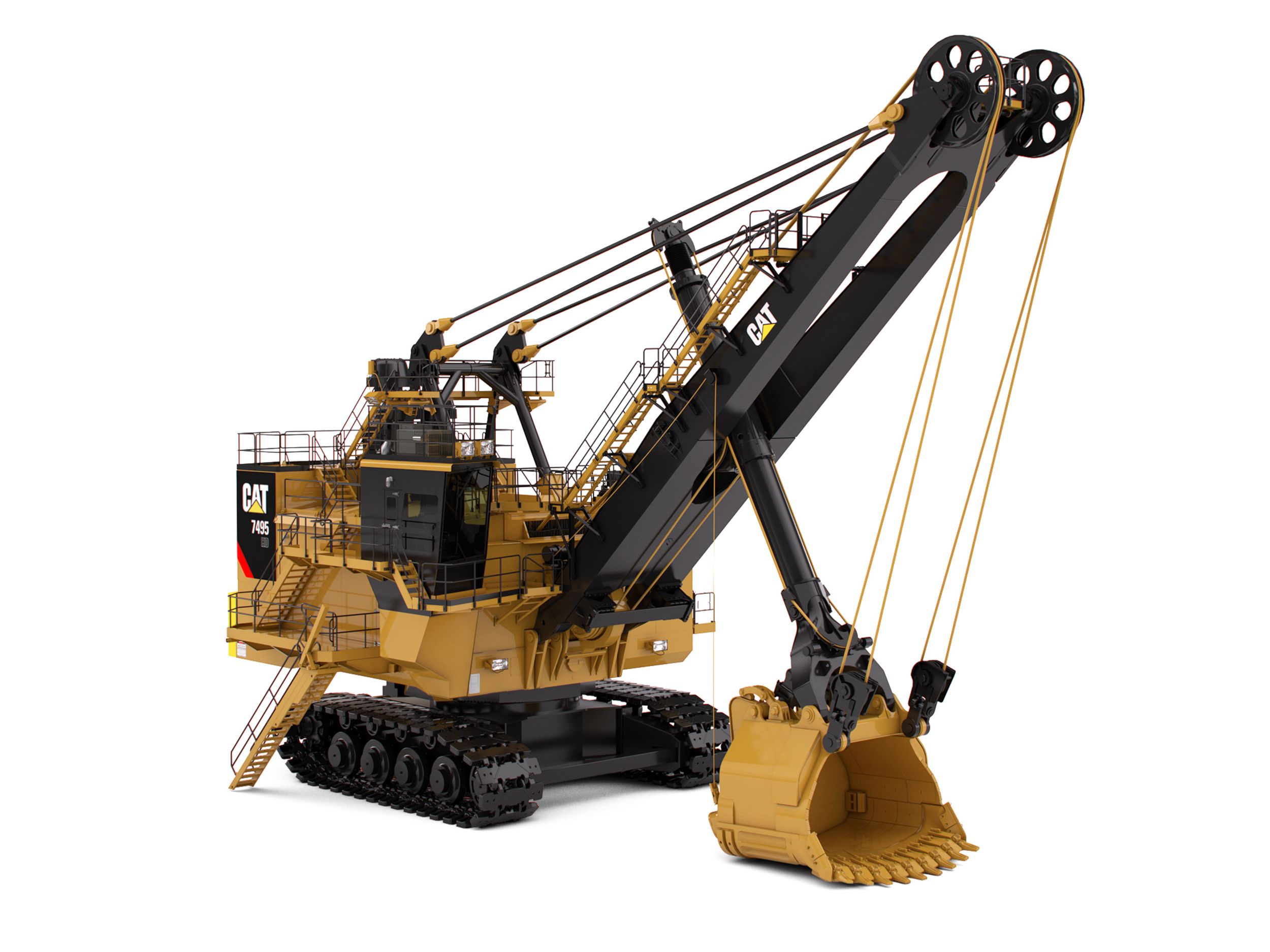

Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. The Cat 7495 HD is a smaller, tougher version of the 7495. Like the 7495, it features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. The 7495 HD is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.
Dipper Payload 90 t
Dipper Capacity 27.5-60.4 m3 (36-79 yd3)
Working Weight - With Dipper and Standard Links 2856700 lb
Ballast - Furnished By Customer 574000 lb
Dipper Capacity 27.5-60.4 m3 (36-79 yd3)
Dipper Payload 90t
Note Dependent on application and material density.
Ballast - Furnished By Customer 574000lb
Note (1) These weights will vary slightly depending upon dipper and optional equipment selection.
Note (2) All specifications are based on a 32 m3 (42 yd3) dipper and standard 213.4 cm (84 in) treads.
Working Weight - With Dipper and Standard Links 2856700lb
Crawler Dimensions - Overall Width 213.4 cm (84 in) Treads, Standard 32.75ft
Crawler Dimensions - Overall Width 274.3 cm (108 in) Treads 34.75ft
Ground Bearing Pressure Ground bearing pressure is dependent upon many factors.
Ground Bearing Pressure - 213.4 cm (84 in) Treads - Standard 58psi
Ground Bearing Pressure - 274.3 cm (108 in) Treads 46psi
Ground Bearing Pressure - Total Effective Bearing Area (1) 343ft²
Ground Bearing Pressure - Total Effective Bearing Area (2) 442ft²
Hoist A planetary gearbox with dual-output pinions provides the hoist torque transfer from the electric motor to the hoist drum gear.
Planetary Propel Dual-motor independent drive.
Swing Two planetary gearboxes, each driven by a vertically mounted motor, are located on either side of the revolving frame. Dual-output pinion shafts from each gearbox engage the swing rack.
Upper Works Overall Width - Including Standard Walkways 44.25ft
Cutting Height - Maximum 48.75ft
Cutting Radius - Maximum 74.75ft
Dumping Height - With Clearance to Open Dipper Door 30.84ft
Note (1) Optimal working ranges based on loading a Cat® 793F truck.
Note (2) *All specifications are based on a 32 m3 (42 yd3) dipper and standard 213.4 cm (84 in) treads.
Radius of Level Floor 52.49ft
Revolving Frame Tail Swing Radius 30.51ft
Components (1) 6 pumps (4 for open gear lubricant and 2 for grease) located in an insulated, heated, double-walled lube room.
Components (2) External fastfill from lower level.
Type Automatic, single-line system for open gear lubricant and grease.
Drive IGBT Acutrol drive system.
Note Other voltage options available to suit customer requirements.
Power Requirements - 50 Hz 6,000V, 6,600V, 7,200V, 11,000V
Power Requirements - 60 Hz 7,200V
Power Requirements - Average Power Demand 832-1165 kW (1,116-1,562 hp)
Power Requirements - Peak power 4466hp
Power Requirements - Voltage 3 phase, 50/60 Hz, 7,200V
Components One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
Crowd Rope Crowd: the crowd machinery is located at the front center of the revolving frame; consisting of a motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
Rope Data - Boom Suspension - Diameter 3.25in
Rope Data - Boom Suspension - No. 4
Rope Data - Crowd - Diameter 2.5in
Rope Data - Crowd - No. 1
Rope Data - Dipper Trip - Diameter 0.625in
Rope Data - Dipper Trip - No. 1
Rope Data - Hoist - Diameter 2.75in
Rope Data - Hoist - No. 2
Rope Data - Note High impact ropes available as an option.
Rope Data - Retract - Diameter 2.5in
Rope Data - Retract - No. 1
