6015 Hydraulic Shovel

6015 Hydraulic Shovel

The Cat® 6015 Hydraulic Shovel lets you move more material at a lower cost, so you can achieve production targets, deliver on your commitments, meet deadlines and maximize your profitability. With class-leading tool carrying capacity, increased durability and the most powerful engine in its class, the Cat 6015 generates higher productivity and fuel efficiency than other shovels. And it’s offered with more and better options that let you match your machine to your operation — from access and cold weather packages to multiple stick and track pad options. In addition, a large range of buckets is available, giving you optimum payload and machine efficiency for your operation. And the 6015’s high tool carrying capacity gives you the ability to employ large buckets and move more in fewer cycles.

  • Engine Output - SAE J1995 824 hp

  • Bucket Payload 16.1 ton (US)

  • Operating Weight 154.3 ton (US)

  • Note Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.

Request a quote

Product Specifications

Specifications

General

  • Bucket Payload 16.1ton (US)

  • Engine Output - SAE J1995 824hp

  • Note Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.

  • Operating Weight 154.3ton (US)

Engine - U.S. EPA Tier 4 Final

  • Engine Model Cat® C27

  • Gross Power - SAE J1995 824hp

  • Net Power - SAE J1349 746hp

Engine - Cat C27 with Tier 4 Final Emission Standards

  • Bore 5.4in

  • Displacement 1648in³

  • Number of Cylinders 12

  • Stroke 6in

Engine - Equivalent to U.S. EPA Tier 2

  • Engine Model Cat® C27

  • Gross Power - SAE J1995 839hp

  • Net Power - SAE J1349 746hp

Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards

  • Aspiration Turbocharged and air-to-air aftercooled

  • Bore 5.4in

  • Displacement 1648in³

  • Number of Cylinders 12

  • Stroke 6in

Operating Weights - Backhoe

  • Operating Weight 154ton (US)

Weights

  • Ground Pressure 23.6psi

  • Note Operating weight includes: 700 mm (28 in) track shoes, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants

  • Operating Weight 308000lb

Track

  • Extra Wide 39in

  • Number of Carrier Rollers - Each Side 3

  • Number of Shoes - Each Side 46

  • Number of Track Rollers - Each Side 9

  • Standard 28in

  • Track Pads Double grouser

  • Wide 36in

Drive

  • Gradeability - Travel Drives Approximately 42%

  • Hydraulic Track Tensioning With accumulator

  • Maximum Drawbar Pull 179847lbf

  • Maximum Drawbar Pull - Forward 192886lbf

  • Maximum Drawbar Pull - Reverse 220987lbf

  • Travel Speed - Two Stages - 1st Stage - Maximum 1.4mile/h

  • Travel Speed - Two Stages - 2nd Stage - Maximum 2.1mile/h

Service Refill Capacities

  • Cooling System 44gal (US)

  • Engine Oil 23gal (US)

  • Fuel Tank 449gal (US)

  • Grease Tank 18gal (US)

  • Hydraulic System - Including Tank 463gal (US)

  • Hydraulic Tank 253gal (US)

  • Swing Drive 2.4gal (US)

Electrical System

  • Alternator Rating 150 A (24 V) in total

  • Batteries 4 × 200 Ah (12 V each)

  • Components (1) Emergency stop in cabin, engine module, pump room and on service station accessible from ground level

  • Components (2) Four maintenance free batteries

  • Components (3) Lockable battery isolation switch

  • Components (4) 5 LED service lights

  • Components (5) 14 LED high-brightness working lights

  • Components (6) 2 electric horns

  • Components (7) Two (2) lights for rear end

  • Components (8) One (1) light for machine deck/service

  • Components (9) One (1) beacon light on cabin roof

  • System Voltage 24 V

Hydraulic System

  • Engine Fan Pump 1 × variable swash plate pump

  • Engine Fan Pump - Maximum Flow, Engine Fan 53.1gal/min

  • Engine Fan Pump - Maximum Pressure, Engine Fan 3191psi

  • Filters (1) Full-flow high-pressure filters (200 μm) for main pumps

  • Filters (2) Full-flow filters (20 μm) for complete return circuit

  • Filters (3) Pressure filters (16 μm) for servo circuit

  • Filters (4) Full-flow filters (6 μm) for engine cooling return circuit

  • Filters (5) Swing charge filter (15 μm)

  • Filters (6) Pump case return screens (125 μm)

  • Hydraulic Fan Pump 1 × variable swash plate pump

  • Hydraulic Fan Pump - Maximum Flow, Hydraulic Fan 22.7gal/min

  • Hydraulic Fan Pump - Maximum Pressure, Hydraulic Fan 1958psi

  • Hydraulic Oil Cooling - Diameter of Fan 40in

  • Hydraulic Oil Cooling - Maximum Flow 284gal/min

  • Main Pumps 3 × variable swash plate pumps

  • Main Pumps - Maximum Pressure - Attachment 4641psi

  • Main Pumps - Maximum Pressure - Travel 4641psi

  • Main Pumps - Maximum Total Oil Flow 407gal/min

  • Pilot Pump 1 × gear pump

  • Pilot Pump - Maximum Flow, Pilot 40.4gal/min

  • Pilot Pump - Maximum Pressure, Pilot 1378psi

  • Swing Pump 1 × variable swash plate pump

  • Swing Pump - Maximum Flow - Swing 127gal/min

  • Swing Pump - Maximum Pressure - Swing 5294psi

Swing System

  • Features (1) Closed-loop swing circuit with speed control

  • Features (2) Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking

  • Features (3) All raceways and the internal gearing of swing ring supplied by automatic central lubrication system

  • Maximum Swing Speed 4.9r/min

  • Parking Brake Wet multiple disc brake, spring-loaded/hydraulically released

  • Swing Drive Two (2) compact planetary transmissions with axial piston motors

  • Swing Ring Cross roller bearing with sealed internal gearing

Engine

  • Emissions U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1

Centralized Service Area

  • Equipped With (1) Emergency stop

  • Equipped With (2) Quick couplings for: Diesel fuel and Grease

  • Feature Accessible from ground level

Undercarriage

  • Components (1) Forged double-grouser track pads

  • Components (2) Chain links connected by hardened pins and bushings

  • Components (3) Postive Pin Retention (PPR2) sealed and greased track design

  • Components (4) All running surfaces of sprockets, idlers, rollers and track chain links hardened

  • Components (5) Fully hydraulic self-adjusting track tensioning system with accumulator

  • Components (6) Automatic hydraulic retarder valve to prevent overspeed on downhill travel

  • Components (7) Audible travel alarm

  • Gradeability - Travel Drives 38°/78% (SAE J1309)

  • Hydraulic Track Tensioning With accumulator

  • Maximum Drawbar Pull - Forward 192886lbf

  • Maximum Drawbar Pull - Reverse 220987lbf

  • Maximum Tractive Force 197157lbf

  • Number of Carrier Rollers - Each Side 3

  • Number of Shoes - Each Side 46

  • Number of Track Rollers - Each Side 9

  • Travel Speed - Two Stages - 1st Stage - Maximum 1.6mile/h

  • Travel Speed - Two Stages - 2nd Stage - Maximum 2.3mile/h

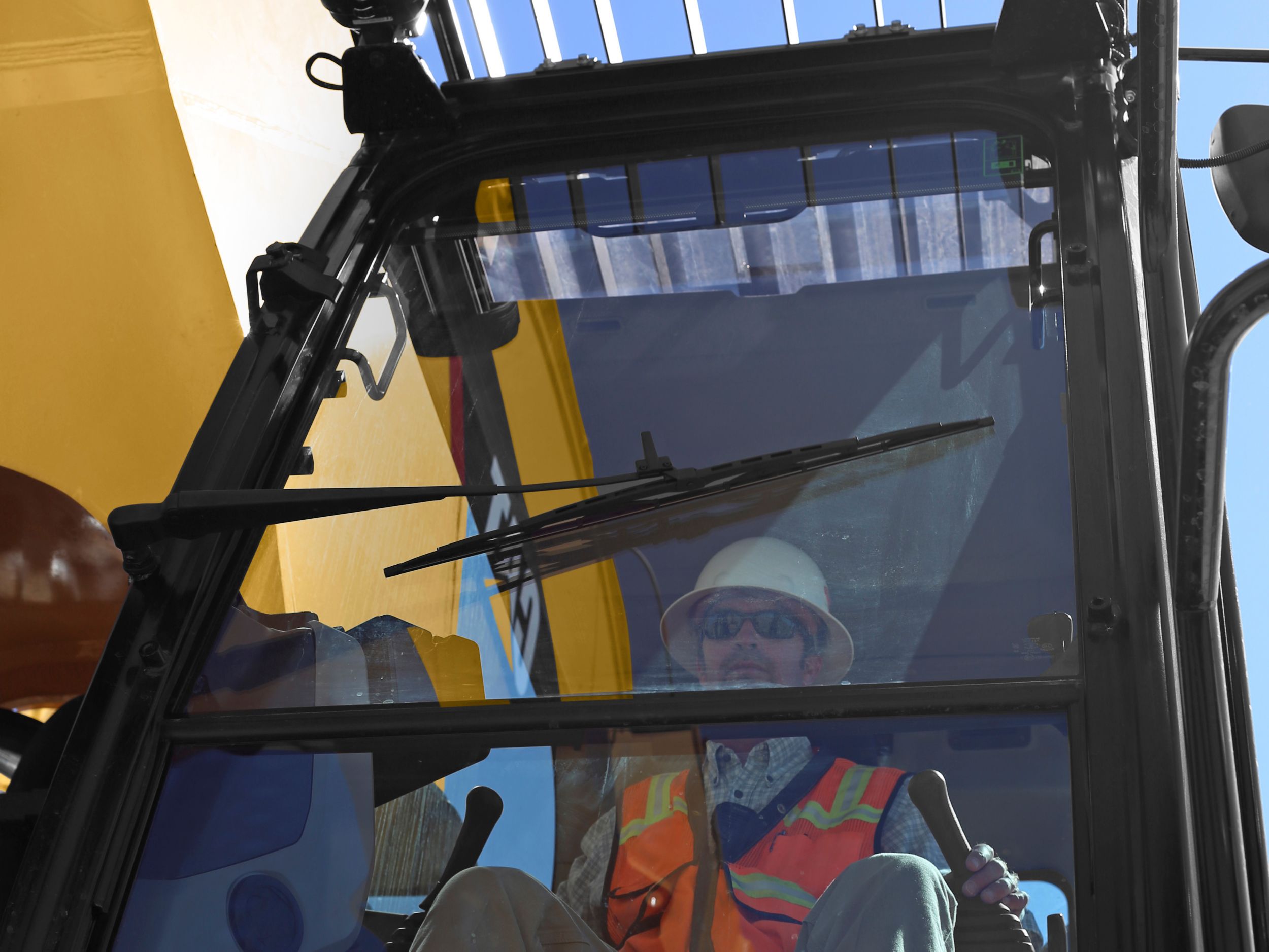

Operator's Cab

  • Components (1) Pressurized operator station with positive filtration

  • Components (10) Radio with MP3 auxiliary audio port

  • Components (11) Two stereo speakers

  • Components (12) Storage shelf suitable for lunch or toolbox

  • Components (13) Color LCD display with warning, filter/fluid change, and working hour information

  • Components (14) Adjustable armrest

  • Components (15) Height-adjustable joystick consoles

  • Components (16) Neutral lever (lock out) for all controls

  • Components (17) Travel control pedals with removable hand levers

  • Components (18) Two power outlets, 10 amp (total)

  • Components (19) Laminated glass front upper window and tempered other windows

  • Components (2) Heated cab mirror

  • Components (3) Sliding upper door window (left-hand cab door)

  • Components (4) Glass-breaking safety hammer

  • Components (5) Removable lower windshield with in cab storage bracket

  • Components (6) Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM

  • Components (7) Beverage holder

  • Components (8) Literature holder

  • Components (9) AM/FM radio

Automatic Lubrication System

  • Capacity - Grease Barrel 18gal (US)

  • Type (1) Central bank lubrication system

  • Type (2) Grease is automatically applied to all attachment pivot points (except bucket linkage) and slew bearing

  • Type (3) Standard grease reel on machine for bucket linkage

  • Type (4) Grease refill service point accessible from ground

Attachments

  • Buckets Equipped With – Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds

  • Type (1) Boom and stick torsion-resistant with welded box design

  • Type (2) High-tensile steel with solid steel castings at pivot areas

  • Type (3) Boom and stick stress-relieved after welding

  • Type (4) Float valve for boom down function

Backhoe Attachment (BH) - Working Range

  • Maximum Digging Depth 26.3ft

  • Maximum Digging Height 41.9ft

  • Maximum Digging Reach 45.6ft

  • Maximum Dump Height 27.9ft

Backhoe Attachment (BH) - Digging Forces

  • Bucket Digging Force - ISO 120947lbf

  • Bucket Digging Force - SAE 112600lbf

  • Stick Digging Force - ISO 104761lbf

  • Stick Digging Force - SAE 98800lbf

Backhoe Attachment (BH) - Backhoe

  • Capacity 1:1 10.6yd³

  • Maximum Material Density - Loose 3030lb/yd³

  • Number of Teeth 5

  • Tooth System Cat C70 or M75

  • Total Width 8.8ft

  • Weight - Including Standard Wear Package 18521lb

Features

Equipment

Standard Equipment

  • 2 x Cat 3512E engines

  • Aftertreatment System (used in highly regulated countries only): – Diesel Oxidation Catalysts (DOCs) – Non-DEF solution

  • Air-to-Air After Cooling (ATAAC)

  • Turbocharger

  • Hydraulically driven radiator fan

  • Electronically controlled fan speed

  • Micro processed engine management

  • Heavy-duty air filters

  • Two-stage fuel filter with series filtration

  • High-capacity water seperator

  • Starting aid -- automatic ether

  • Exhaust manifold and turbo heat shields

  • Dual 24 V electric starters per engine

  • Automatic engine idle shut down

  • Automatic fuel priming

  • Hydraulic Optimization

  • Operator Assist: Enhanced Motion Control

  • Cat Hydraulic Hose assemblies

  • Pump managing system with: – Electronic load limit control – Flow on demand – Automatic zero flow regulation – Automatic engine rpm reduction – Reduced oil flow at high hydraulic oil or engine temperature

  • Pressure cut-off for main pumps

  • Cooling of pump transmission gear oil

  • Closed loop swing circuit

  • Pressure testing points

  • Full-flow high-pressure filters (100 μm), main pumps

  • High pressure filters (100 μm), closed swing circuit

  • Full-flow filters (10 μm), return circuit

  • Pressure filters swing charge circuit (40 μm)

  • Pressure filters pilot circuit (6 μm)

  • Transmission oil filters (40 μm)

  • Boom float valve (FS and BH)

  • Stick float valve (FS)

  • 6 Maintenance-free batteries

  • Lockable battery isolator switch

  • Lockable starter isolator switch

  • 13 LED high-brightness working flood lights

  • 17 LED service lights

  • 2 acoustic travel alarms – forward and reverse (power module, oil cooler module)

  • 2 electric horns (1 cab module, 1 oil cooler module)

  • HD tracks with cast double-grouser track pads

  • 1400 mm (4'7") wide track pads

  • HD fixed axle carrier and load rollers

  • HD fixed axle idlers

  • Automatic hydraulic retarder valve

  • Hinged travel motor covers

  • Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas

  • Fully hydraulic self-adjusting track tensioning system with piston accumulators

  • Rectangular grease container (fill via service station)

  • Lubricated pinion in swing ring

  • Grease filters (200 μm)

  • Single hydraulically driven HVAC system

  • In-floor window with removable grate

  • Pneumatically cushioned and multiadjustable comfort seat with: – Heating and cooling – Lumbar support – 2-point safety belt – Head and arm rests – Safety switch for automatic motion shutdown

  • Independently adjustable seat consoles with integrated joysticks

  • Electronic-Hydraulic Servo Control

  • Elevated full-size trainer seat with 2-point safety belt and laptop desk

  • Additional fold-away auxiliary seat with 2-point safety belt

  • Three cup holders

  • FM/AM radio with USB and AUX input

  • Parallel intermittent wiper/washer

  • Roller blinds

  • Monitoring system with 254 mm (10 in) color touchscreen

  • 45° stairway from engine bay to operator cab

  • Powered 45° access stairway

  • Heated mirror on LH side

  • Camera monitoring system (Right and rear cameras, 2 lights, and additional display)

  • Level indicators for length and crosswise inclination

  • Document Storage

  • Service access holes from both sides in boom and stick (FS and BH)

  • Boom and stick thermally stress relieved after welding

  • Catwalks with rails at boom (FS and BH)

  • Wear Package (as per bucket selection)

  • Cat Product Link Elite (Cellular)

  • Cat MineStar Solutions Ready

  • Engine oil exchange interval -- 500 hours

  • Hydraulic oil change interval – 10,000 hours

  • Scheduled Oil Sampling (S·O·SSM) ports

  • Retractable ground level service station with quick couplings for: – Diesel fuel – Engine coolant – left/right engines – Pump transmission gear oil – left/right engines – Engine oil – left/right engines – Engine oil extension tanks – Hydraulic oil – Grease – Swing transmission gear oil

  • Cat battery charging connector

  • Indicator lights

  • Cat Electronic Technician service port

  • Dirt wiper at swivel

  • Emergency stop switches: 2 in cab, 5 in engine module, 1 at ground level service station, 1 pull rope accessible from ground level

  • Operator Protective Guard (Top Guard)

  • All-round safety glass

  • Emergency egress ladder

  • ISO or ANSI decals

Optional Equipment

  • Track guards – full length

  • Track guards – center

  • Track width: – Standard – 700 mm (28 in) – Wide – 900 mm (36 in) – Extra Wide – 1000 mm (39 in)

  • Starting aid – cold weather

  • 120 V or 240 V cold weather package

  • Fuel heater

  • Heated cab mirror

  • Lubricant options include: low temperature, high temperature, and Cat Bio HYDO Advanced

  • Copper Mesabi or aluminum bar plate engine cooling packages

  • LED working lights

  • Powered 45° access stairway

  • Camera Monitoring System (2 cameras and additional color display)

  • Operator Protective Guard (Front Guard)

  • Product Link Elite radio options (Cellular, Satellite, No Radio)

  • 3.4 m (11 ft 2 in) or 4.1 (13 ft 5 in) stick

  • Additional buckets available, based on application, through your local Cat dealer
