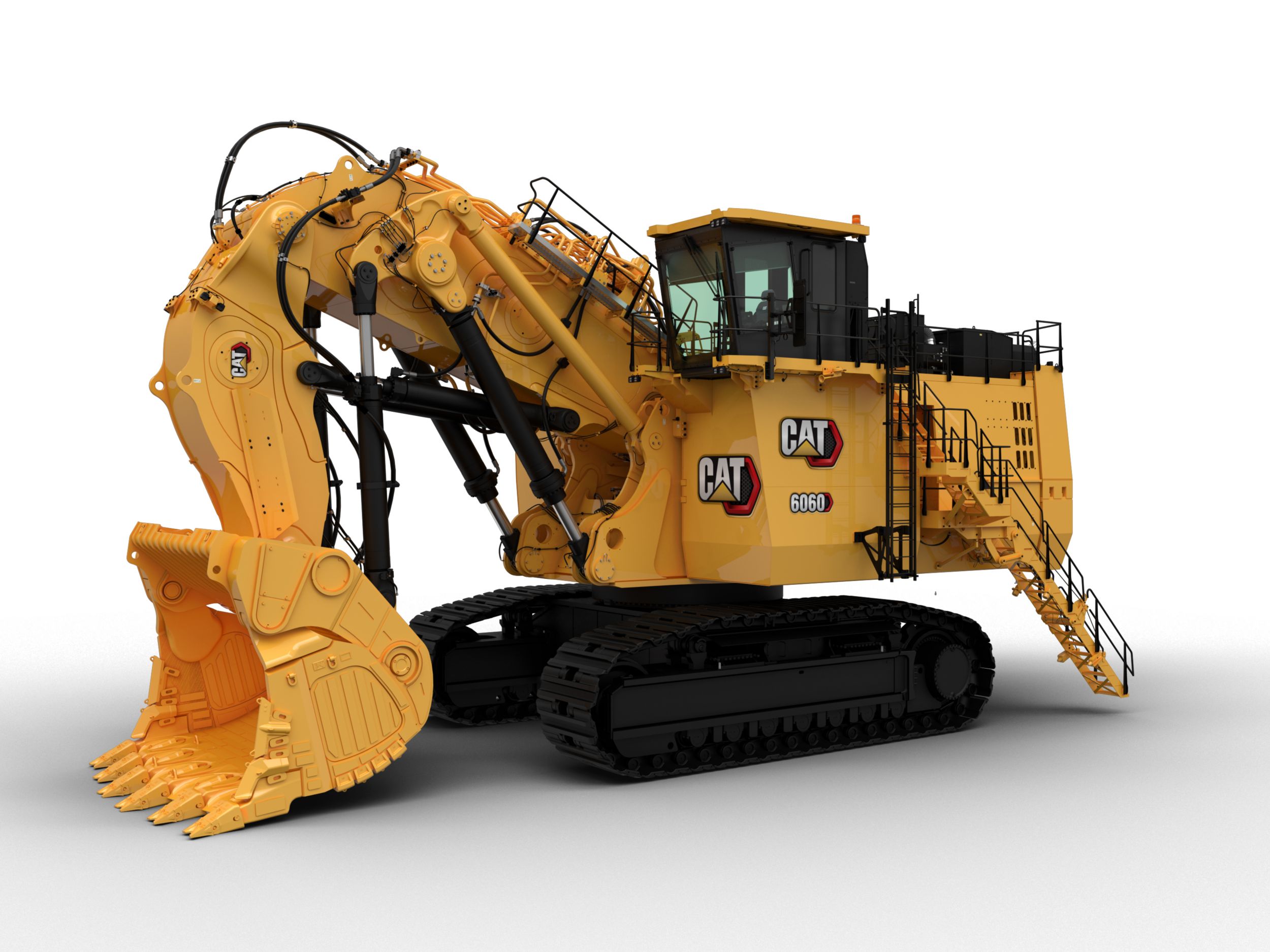

The Cat® 6060 Hydraulic Mining Shovel is the industry’s most popular hydraulic shovel in its size class. And for good reason. With its rated payload of 61 tonnes (67 tons), the Cat 6060 was the first shovel in the mining industry tailor-made for mines using 240-ton (218-tonne) haul trucks, providing an efficient truck-shovel system solution to meet production capacity in these environments. Today's 6060 remains the ideal shovel for these applications, with improvements and enhancements in durability and reliability to deliver the uptime you demand. And its powerful engine and efficient hydraulic system allow higher working speeds for fast cycle times. The result is higher productivity and lower overall owning and operating costs.

  • Engine Output - SAE J1995 3015 hp

  • Bucket Payload 67 ton (US)

  • Operating Weight 660 ton (US)

  • Note Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.

Request a quote

Product Specifications

Specifications

General

  • Bucket Payload 67ton (US)

  • Engine Output - SAE J1995 3015hp

  • Note Specifications shown above apply to Face Shovel configuration. Backhoe and Frontless configurations are also available.

  • Operating Weight 660ton (US)

Engine

  • Engine Model 2 x Cat 3512E

Diesel Engines

  • Aspiration Turbocharged and charge air-cooled

  • Bore 6.69in

  • Components (1) Non-DEF Aftertreatment system with Diesel Oxidation Catalysts (DOCs)

  • Components (2) High-capacity water separator

  • Components (3) Two-stage fuel filter with series filtration

  • Components (4) Heavy-duty air filters

  • Components (5) Microprocessed engine management

  • Components (6) Hydraulically driven radiator fan with electronically controlled fan speed

  • Components (7) Exhaust manifold and turbo heat shields

  • Displacement 3574in³

  • Number of Cylinders - Each Engine 12

  • Rated Speed 1,800 min-1 (1,800 rpm)

  • Stroke 8.46in

Diesel Engine - Lesser Regulated

  • Emissions Optimized for fuel consumption.

  • Gross Power - SAE J1995 3025hp

  • Net Power - ISO 9249 2990hp

  • Net Power - SAE J1349 2821hp

Diesel Engine - Highly Regulated

  • Emissions Meets U.S. EPA Tier 4 Final emission requirements. These engines participate in the U.S. EPA averaging, banking, and trading provisions.

  • Gross Power - SAE J1995 3015hp

  • Net Power - ISO 9249 2979hp

  • Net Power - SAE J1349 2810hp

Electrical System

  • Batteries in Series/Parallel Installation 6 x 210 Ah; 12 V each; 630 Ah 24 V in total

  • Components (1) 6 maintenance-free batteries

  • Components (2) Lockable battery isolator switch

  • Components (3) Lockable starter isolator switch

  • Components (4) 13 LED high-brightness working flood lights

  • Components (5) 17 LED service lights

  • Components (6) 2 electric horns (1 cab module; 1 oil cooler module)

  • System Voltage 24 V

Operating Weights

  • 6060 FS - Ground Pressure 26.6 N/cm2 (38.5 psi)

  • 6060 FS - Operating Weight 1320110lb

  • 6060 FS - Standard Track Pads 4.58ft

  • Backhoe - Ground Pressure 26.7 N/cm2 (38.7 psi)

  • Backhoe - Operating Weight 1323860lb

  • Backhoe - Standard Track Pads 4.58ft

  • Note Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.

Service Refill Capacities

  • Cooling System 211.4gal (US)

  • Engine Oil 86.6gal (US)

  • Fuel Tank 3136gal (US)

  • Grease Tank 188gal (US)

  • Hydraulic System - Including Tank 2483gal (US)

  • Hydraulic Tank 1876gal (US)

  • Swing Drive 42.4gal (US)

Hydraulic System with Pump Managing System

  • Main Pumps - Diesel Version 8 variable swash plate pumps

  • Main Pumps - Maximum Oil Flow - Diesel Version 8 x 650 L/min (8 x 172 gal/min)

  • Maximum Pressure - Attachment 4640psi

  • Maximum Pressure - Swing Pumps 5075psi

  • Maximum Pressure - Travel 5220psi

  • Swing Pumps - Diesel Version 4 reversible swash plate pumps

  • Swing Pumps - Maximum Oil Flow - Diesel Version 4 x 352 L/min (4 x 93 gal/min)

Hydraulic Oil Cooling

  • Components 4 cooling fans

  • Diameter - Fan 46in

  • Features (1) Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running

  • Features (2) Fan speed and flow of oil to the coolers are thermostatically controlled

  • Features (3) Extremely high cooling efficiency to ensure optimum oil temperature

  • Features (4) Gear-type cooling pumps supplying high-volume, low-pressure oil to fans and aluminum coolers

  • Oil Flow of Cooling Pumps 4 x 488 L/min (4 x 129 gal/min)

Swing System

  • Features (1) Dirt wipers at swing ring to prevent build-up of debris between swing ring and carbody

  • Features (2) Closed-loop swing circuit with torque control

  • Features (3) Hydraulic braking of the swing motion by counteracting control

  • Features (4) All raceways and the internal gearing of swing ring, supplied by automatic central lubrication system

  • Maximum Swing Speed 3.8r/min

  • Parking Brakes Wet multiple disc brake, spring loaded/hydraulically released

  • Swing Drive 4 compact planetary transmissions with axial piston motors

  • Swing Ring Triple-race roller bearing with sealed internal gearing

Undercarriage

  • Bottom Rollers - Each Side 7

  • Components (1) HD tracks with cast double-grouser track pad

  • Components (2) HD fixed axle rollers and idlers

  • Components (3) Hardened running surfaces of sprockets, idlers, rollers, pad links, and teeth contact areas

  • Components (4) Acoustic travel alarm (forward and reverse)

  • Components (5) Fully hydraulic, self-adjusting track tensioning system with piston accumulator

  • Components (6) Automatic hydraulic retarder valve to prevent over-speed on downhill travel

  • Gradeability - Travel Drives - Maximum 39%

  • Maximum Tractive Force 661160lb

  • Support Rollers - Each Side 2 plus a skid plate in between

  • Track Pads - Each Side 42

  • Travel Drives - Each Side 1 planetary transmission with 2 two-stage axial piston motors

  • Travel Speed - 1st Stage - Maximum 0.68mile/h

  • Travel Speed - 2nd Stage - Maximum 0.99mile/h

Operator's Cab

  • Components (1) Single hydraulically driven HVAC System, with dual system option

  • Components (10) Powered 45 degree access stairway

  • Components (11) Emergency egress ladder

  • Components (12) FM/AM radio with USB and AUX input

  • Components (13) Roller blinds on 3 front windows

  • Components (14) 3 cup holders

  • Components (15) Cat Electronic Technician service port

  • Components (2) In-floor window with removable grate

  • Components (3) Pneumatically cushioned and multi-adjustable comfort seat with heating, cooling, and lumbar support

  • Components (4) Independently adjustable seat consoles with integrated joysticks

  • Components (5) Operator Protective Guard (Top Guard) (ISO 10262:1998)

  • Components (6) Elevated full-size trainer seat with safety belt and laptop desk

  • Components (7) Additional fold-away auxiliary seat with safety belt

  • Components (8) Operator Presence switch

  • Components (9) Monitoring system with 254 mm (10 in) touch screen

  • Internal Dimensions of Cab - Height 6.75ft

  • Internal Dimensions of Cab - Length 7.33ft

  • Internal Dimensions of Cab - Width 5.33ft

  • Operator's Eye Level - Approximately 24.91ft

Automatic Lubrication System

  • Capacity - Grease Container 188gal (US)

  • Type (1) Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control to adjust the pause/lube times

  • Type (2) System failures displayed by monitoring system

  • Type (3) Grease filters (200 µm) between service station and container as well as directly behind grease pump

  • Type (4) Main lube system connections include: pivot points of attachment, bucket and cylinders, raceways of swing roller bearing, and 2 greasing pinions for the internal gearing of swing ring

Attachments

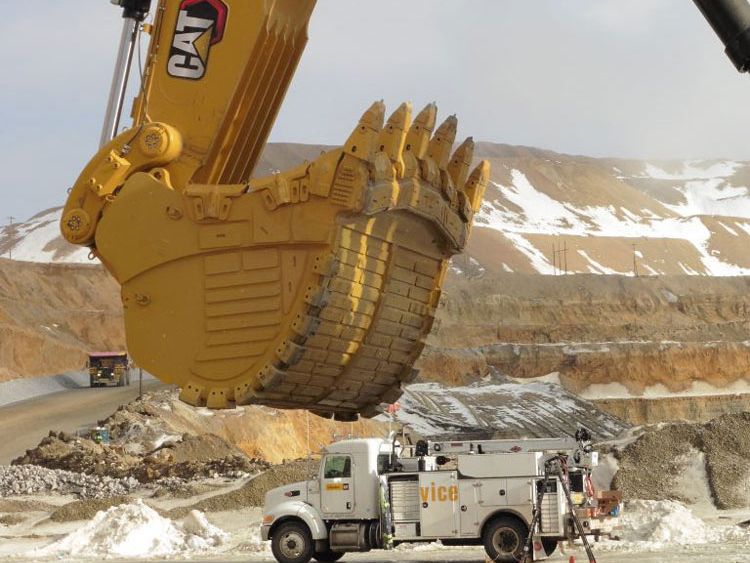

  • All buckets (FS and BH) are equipped with a wear package consisting of: (1) Special liner material covering main wear areas inside and outside of bucket and lip shrouds between teeth

  • All buckets (FS and BH) are equipped with a wear package consisting of: (2) Wing shrouds on side walls and heel shrouds at bottom edges

  • Shovel attachment with unique TriPower kinematics ensuring the following main features: (1) Automatic roll-back limiter to prevent material spillage; Kinematic assistance to hydraulic forces

  • Shovel attachment with unique TriPower kinematics ensuring the following main features: (2) Horizontal Automatic constant-angle bucket guidance; Vertical Automatic constant-angle bucket guidance

  • Shovel attachment with unique TriPower kinematics ensuring the following main features: (3) Constant boom momentum throughout the entire lift arc; Crowd force assistance

  • Type (1) Catwalks with rails at booms (FS and BH)

  • Type (2) Guards for shovel cylinders (FS)

  • Type (3) Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve

  • Type (4) Service access holes from both sides of boom (FS and BH) and stick (FS)

  • Type (5) Welding procedures allow for internal counter-welding (double prep weld) wherever possible

  • Type (6) Booms and sticks are stress-relieved after welding

  • Type (7) Booms and sticks are torsion-resistant, welded box design of high-tensile steel with massive steel castings at pivot areas

  • Type (8) Special wear packages for highly abrasive materials available upon request

Digging Forces

  • Maximum Breakout Force 388780lb

  • Maximum Crowd Force 494410lb

Working Ranges

  • Maximum Digging Depth 9.17ft

  • Maximum Digging Height 51.17ft

  • Maximum Digging Reach 54.17ft

Standard Bucket Capacity

  • Backhoe (heaped 1:1) 44.5yd³

  • Face Shovel (heaped 2:1) 44.5yd³

Backhoe Attachment (BH) - Digging Forces

  • Bucket Digging Force - ISO 274840lb

  • Stick Digging Force - ISO 295740lb

Backhoe Attachment (BH) - Working Range

  • Maximum Digging Depth 29.17ft

  • Maximum Digging Height 52.83ft

  • Maximum Digging Reach 62.33ft

Retractable Service Station

  • Equipped With (1) Quick couplings for: Diesel fuel, Engine coolant - left/right engine, Pump transmission gear oil - left/right engine, Engine oil - left/right engine, Hydraulic oil tank, and grease container

  • Equipped With (2) Cat jump-start socket

  • Equipped With (3) Indicator lights

  • Installation Retractable service station installed underneath the engine module and easily accessible from ground.

Features

Equipment

Standard Equipment

  • 2 x Cat 3512E engines

  • Aftertreatment System (used in highly regulated countries only): -Diesel Oxidation Catalysts (DOCs) -Non-DEF solution

  • Air-to-Air After Cooling (ATAAC)

  • Turbocharger

  • Hydraulically driven radiator fan

  • Electronically controlled fan speed

  • Micro processed engine management

  • Heavy-duty air filters

  • Two-stage fuel filter with series filtration

  • High-capacity water seperator

  • Starting aid -- automatic ether

  • Exhaust manifold and turbo heat shields

  • Dual 24 V electric starters per engine

  • Automatic engine idle shut down

  • Automatic fuel priming

  • Hydraulic Optimization

  • Operator Assist: Enhanced Motion Control

  • Cat Hydraulic Hose assemblies

  • Pump managing system with: -Electronic load limit control -Flow on demand -Automatic zero flow regulation -Automatic engine rpm reduction -Reduced oil flow at high hydraulic oil or engine temperature

  • Pressure cut-off for main pumps

  • Cooling of pump transmission gear oil

  • Closed loop swing circuit

  • Pressure testing points

  • Full-flow high-pressure filters (100 μm), main pumps

  • High pressure filters (100 μm), closed swing circuit

  • Full-flow filters (10 μm), return circuit

  • Pressure filters swing charge circuit (40 μm)

  • Pressure filters pilot circuit (6 μm)

  • Transmission oil filters (40 μm)

  • Boom float valve (FS and BH)

  • Stick float valve (FS)

  • 6 Maintenance-free batteries

  • Lockable battery isolator switch

  • Lockable starter isolator switch

  • 13 LED high-brightness working flood lights

  • 17 LED service lights

  • 2 acoustic travel alarms -forward and reverse (power module, oil cooler module)

  • 2 electric horns (1 cab module, 1 oil cooler module)

  • HD tracks with cast double-grouser track pads

  • 1400 mm (4'7") wide track pads

  • HD fixed axle carrier and load rollers

  • HD fixed axle idlers

  • Automatic hydraulic retarder valve

  • Hinged travel motor covers

  • Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas

  • Fully hydraulic self-adjusting track tensioning system with piston accumulators

  • Rectangular grease container (fill via service station)

  • Lubricated pinion in swing ring

  • Grease filters (200 μm)

  • Single hydraulically driven HVAC system

  • In-floor window with removable grate

  • Pneumatically cushioned and multiadjustable comfort seat with: -Heating and cooling -Lumbar support -2-point safety belt -Head and arm rests -Safety switch for automatic motion shutdown

  • Independently adjustable seat consoles with integrated joysticks

  • Electronic-Hydraulic Servo Control

  • Elevated full-size trainer seat with 2-point safety belt and laptop desk

  • Additional fold-away auxiliary seat with 2-point safety belt

  • Three cup holders

  • FM/AM radio with USB and AUX input

  • Parallel intermittent wiper/washer

  • Roller blinds

  • Monitoring system with 254 mm (10 in) color touchscreen

  • 45° stairway from engine bay to operator cab

  • Powered 45° access stairway

  • Heated mirror on LH side

  • Camera monitoring system (Right and rear cameras, 2 lights, and additional display)

  • Level indicators for length and crosswise inclination

  • Document Storage

  • Service access holes from both sides in boom and stick (FS and BH)

  • Boom and stick thermally stress relieved after welding

  • Catwalks with rails at boom (FS and BH)

  • Wear Package (as per bucket selection)

  • Cat Product Link Elite (Cellular)

  • Cat MineStar Solutions Ready

  • Engine oil exchange interval -- 500 hours

  • Hydraulic oil change interval -10,000 hours

  • Scheduled Oil Sampling (S·O·SSM) ports

  • Retractable ground level service station with quick couplings for: -Diesel fuel -Engine coolant -left/right engines -Pump transmission gear oil -left/right engines -Engine oil -left/right engines -Engine oil extension tanks -Hydraulic oil -Grease -Swing transmission gear oil

  • Cat battery charging connector

  • Indicator lights

  • Cat Electronic Technician service port

  • Dirt wiper at swivel

  • Emergency stop switches: 2 in cab, 5 in engine module, 1 at ground level service station, 1 pull rope accessible from ground level

  • Operator Protective Guard (Top Guard)

  • All-round safety glass

  • Emergency egress ladder

  • ISO or ANSI decals

Optional Equipment

  • Custom paint

  • Oil change interval extension for engine oil up to 500 hours, with optional extension to 1,000 hours

  • Rectangular grease container, 710 L (188 gal), filled via service station

  • Various cold-weather options for temperatures below -10°; 400 V, 50 Hz and 208 V, 60 Hz

  • Dual hydraulically driven HVAC system for redundancy

  • Cab heating

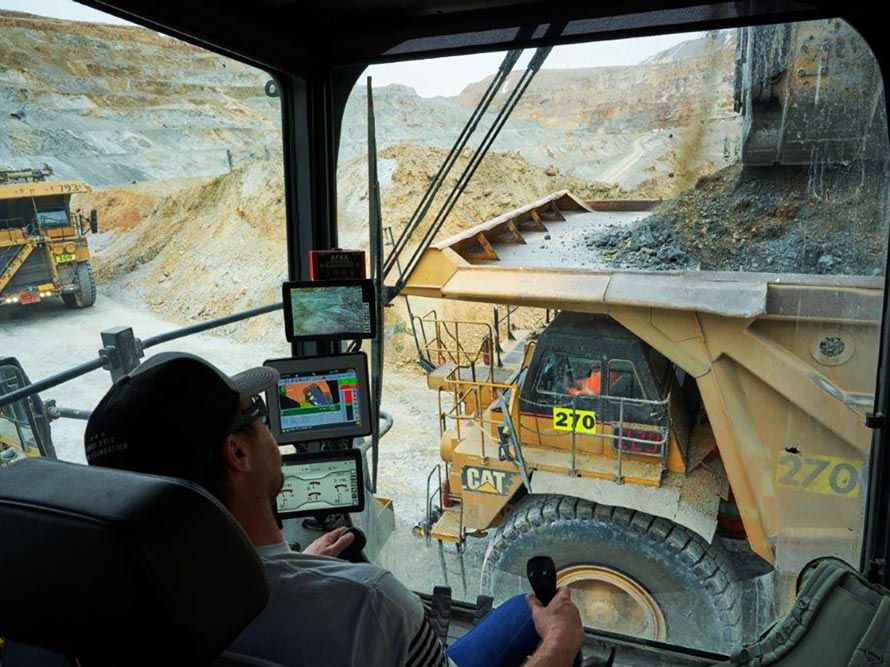

  • Camera monitoring system with two cameras, two lights, and additional display

  • Track pad width 1400 mm (4 ft 7 in)

  • Belly plate for undercarriage protection

  • Additional optional equipment available on request.
