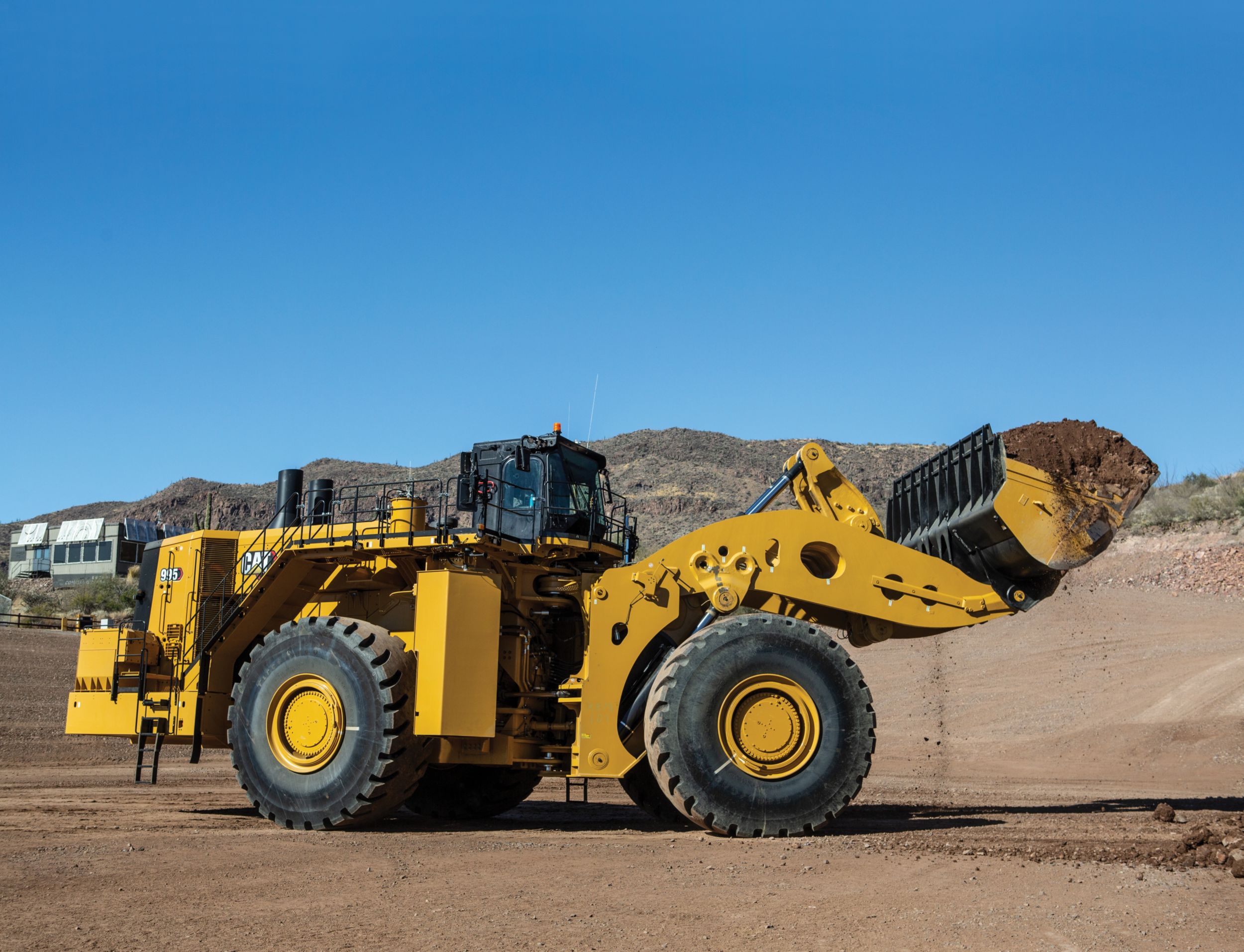

995 Wheel Loader

Built to the same size as the 994K but offering a higher rated payload, the new Cat® 995 Wheel Loader gives you greater productivity and performance while using less fuel. It offers a one-pass reduction when loading Cat 785, 789 and 793 Mining Trucks — increasing production and efficiency up to 33% when loading the 785, up to 25% when loading the 789, and up to 20% with the 793. The 995 demonstrates 21% higher efficiency and 24% more production than the 994K in equal operating mode thanks to a higher rated payload and 6% increase in hydraulic force. In Enhanced Eco Mode, the 995 demonstrates up to a 30% increase in efficiency and an 11% reduction in hourly fuel consumption versus the 994K in throttle lock mode, which translates to 23% less CO2 per unit of material moved. It also offers a more comfortable operator environment and is infused with new technology features that allow additional gains in efficiency.

  • Engine Model Cat® 3516E

  • Operating Weight - Standard 543772 lb

  • Bucket Capacity Range 17.2-43.6 m3 (22.3-57 yd3)

  • Emissions U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent

Request a quote

Product Specifications

Specifications

Engine

  • Bore 6.7in

  • Displacement 4766in³

  • Emissions U.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent

  • Engine Model Cat® 3516E

  • Gross Power - SAE J1995 1870HP

  • Net Power - SAE J1349 - High Ambient 1696HP

  • Net Power - SAE J1349 - Standard Ambient 1739HP

  • Note (1) The power ratings apply when tested under the reference conditions for the specified standard.

  • Note (2) The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler.

  • Note (3) The gross power advertised is with the fan at maximum speed.

  • Peak Torque - 1,200 rpm - SAE J1995 8549lb/ft

  • Stroke 8.5in

  • Torque Rise 39%

Operating Specifications

  • Bucket Capacity Range 17.2-43.6 m3 (22.3-57 yd3)

  • Cat Truck Match - High Lift 789/793/794

  • Cat Truck Match - Standard 785/789

  • Note *Please contact your local dealer to determine if your application is suitable for this increased rated payload.

  • Operating Weight - High Lift 547675lb

  • Operating Weight - Standard 543772lb

  • Rated Payload - High Lift (Low to Moderate Digging Resistance) 55ton (US)

  • Rated Payload - High Lift (Moderate to High Digging Resistance) 50ton (US)

  • Rated Payload - Standard Lift (Low to Moderate Digging Resistance) 60ton (US)

  • Rated Payload - Standard Lift (Moderate to High Digging Resistance) 50ton (US)

Transmission

  • Direct Drive - Forward 1 Lock-up disables

  • Direct Drive - Forward 2 8.7mile/h

  • Direct Drive - Forward 3 15.2mile/h

  • Direct Drive - Reverse 1 Lock-up disables

  • Direct Drive - Reverse 2 9.6mile/h

  • Direct Drive - Reverse 3 16.8mile/h

  • Forward - 1 4.6mile/h

  • Forward - 2 8mile/h

  • Forward - 3 13.6mile/h

  • Note Travel speeds based on 58/85-57 tires.

  • Reverse - 1 5mile/h

  • Reverse - 2 8.8mile/h

  • Reverse - 3 14.9mile/h

  • Transmission Type Cat Planetary Power Shift

Hydraulic System - Lift/Tilt

  • Cylinders, Double Acting - Lift, Bore and Stroke 370 × 1713 mm (14.6 × 67.4 in)

  • Cylinders, Double Acting - Tilt, Bore and Stroke 310 × 1086 mm (12.2 × 42.8 in)

  • Lift/Tilt System - Circuit Positive Flow Control

  • Lift/Tilt System - Pump Variable Displacement Piston

  • Maximum Flow at 1,700 rpm Engine Speed 541gal/min

  • Pilot System Open Loop and Pressure Reducing

  • Relief Valve Setting - Lift/Tilt 5004psi

Hydraulic Cycle Times

  • Dump 3.1s

  • Lower Float Down 4.2s

  • Rack Back 4.9s

  • Raise 12.6s

Complete System Fill

  • Cooling System 138gal (US)

  • Differential - Final Drives - Front 220gal (US)

  • Differential - Final Drives - Rear 200gal (US)

  • Engine Crankcase 76gal (US)

  • Fuel Tank - Standard 856gal (US)

  • Fuel Tank - With 24 hr Attachment 1414gal (US)

  • Hydraulic Tank - Implement and Hydraulic Fan 270gal (US)

  • Hydraulic Tank - Steering and Braking 100gal (US)

  • Note *Not available on Tier 4 Final/Stage V machines. Not available in all regions.

  • Oil Renewal System (ORS)* 20gal (US)

  • Transmission 110gal (US)

Axles

  • Front Fixed

  • Oscillation Angle

  • Rear Trunnion

Cooling System

  • Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent) 131°F

  • Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final) 127.4°F

  • Ambient Capability Hydraulically Driven Demand Fan - Standard 109.4°F

Sound Performance - Standard

  • Machine Sound Level (ISO 6395:2008) 119dB(A)

  • Note The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was c

  • Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent 74dB(A)

Sound Performance - Suppression

  • Machine Sound Level (ISO 6395:2008) 117dB(A)

  • Note The declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was c

  • Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent 73dB(A)

Hydraulic System - Steering

  • Steering Cycle Times - High Idle 4.3s

  • Steering Cycle Times - Low Idle 7.6s

  • Steering System - Circuit Pilot, Load Sensing

  • Steering System - Pump Piston, Variable Displacement

  • Total Steering Angle 80 degrees

Dimensions - Standard Lift - Approximate

  • B-Pin Height - Maximum Lift 28.8ft

  • Clearance at Maximum Lift 19.8ft

  • Dump Angle at Maximum Lift –50.0 degrees

  • Front Axle Centerline to Bucket Tip 21.9ft

  • Ground to Bumper Clearance 4.4ft

  • Ground to Center of Axles 6ft

  • Ground to Lower Hitch Clearance 2.9ft

  • Ground to Top of Exhaust Stacks 23.2ft

  • Ground to Top of Hood 18.6ft

  • Ground to Top of ROPS 23.4ft

  • Maximum Overall Height - Bucket Raised 39.3ft

  • Maximum Overall Length 64.6ft

  • Note Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.

  • Rack Angle at Maximum Lift 59.5 degrees

  • Rack Back Angle - Carry 47.7 degrees

  • Rack Back Angle - Ground Level 39.7 degrees

  • Reach - Maximum Lift 9.6ft

  • Rear Axle - Centerline to Bumper 20.4ft

  • Tread Width 14.1ft

  • Wheel Base 22.3ft

  • Width - Over Tires - With Bulge 18.8ft

Dimensions - High Lift - Approximate

  • B-Pin Height - Maximum Lift 31.6ft

  • Clearance at Maximum Lift 22.6ft

  • Dump Angle at Maximum Lift –50.0 degrees

  • Front Axle Centerline to Bucket Tip 24.2ft

  • Ground to Bumper Clearance 4.4ft

  • Ground to Center of Axles 6ft

  • Ground to Lower Hitch Clearance 2.9ft

  • Ground to Top of Exhaust Stacks 23.2ft

  • Ground to Top of Hood 18.6ft

  • Ground to Top of ROPS 23.4ft

  • Maximum Overall Height - Bucket Raised 42.1ft

  • Maximum Overall Length 66.9ft

  • Note Assumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.

  • Rack Angle at Maximum Lift 59.4 degrees

  • Rack Back Angle - Carry 53.5 degrees

  • Rack Back Angle - Ground Level 45 degrees

  • Reach - Maximum Lift 9.4ft

  • Rear Axle - Centerline to Bumper 20.4ft

  • Tread Width 14.1ft

  • Wheel Base 22.3ft

  • Width - Over Tires - With Bulge 18.8ft

Brakes

  • Brakes ISO 3450:2011

Features

Equipment

Standard Equipment

  • Engine, 3516E High Displacement (HD) Mechanical Electronic Unit Injector (MEUI-A), Air-to-Air Aftercooling (ATAAC) diesel, turbocharged/aftercooled

  • Engine prelube

  • Fuel priming pump (electric)

  • Ground-level engine shutoff

  • Engine air intake (above hood) precleaner

  • Aluminum Modular Radiator (AMR)

  • Automatic, ether starting aid

  • Electronic throttle lock

  • Impeller Clutch Torque Converter (ICTC) with Lock-Up Clutch and rimpull control system

  • Rimpull control system

  • Planetary powershift, 3F/3R electronic control transmission

  • Delayed engine shutdown

  • Oil-cooled, multi-disc, service brakes

  • Electro-hydraulic parking brake

  • Standard lift

  • Alternator

  • Batteries, low maintenance

  • 10/15 amp, 24V to 12V converter

  • Disconnect switch to bumper

  • LED warning lights (pattern selectable)

  • LED lighting system (working lights, access and service platform lights, turn signals/hazard lights)

  • Emergency jump-start receptacle

  • Starter and transmission lockout in bumper

  • 24V starting and charging system

  • Electric starters

  • Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment and two-way thigh support adjustment

  • Bonded glass, tinted

  • Trainer seat

  • Dual-lever lift and tilt function controls

  • Implement kickouts

  • Air conditioner

  • Cab pressure indicator

  • Graphical touchscreen information display conveys real-time operating information

  • Heater, defroster, auto temperature controls

  • Powered cab precleaner

  • Operator presence status

  • Starting/charging system malfunction

  • Electronic OMM

  • Operator controls help

  • Two USB charging ports

  • CB mounting, 12V/24V power and antenna

  • 14-pin service port

  • 12V power

  • Selectable application profiles

  • Entertainment radio mute

  • Push-To-Start (PTS)

  • Warning/indicator instrumentation

  • Keypad control with indicator lights

  • Dome light in cab

  • Lunchbox and beverage holders

  • Electro-hydraulic force feedback steering

  • Vital Information Management System (VIMS) with information display: external data port, cycle timer

  • Coat hook

  • Gauge instrumentation with configurable widgets:
    – Status indicators

    – Wheel rev counter

    – Simplified payload

    – Tire pressure monitoring system (optional)

    – Bucket angle

    – Coolant temperature

    – Hydraulic oil temperature

    – Fuel level

    – Power train oil temperature

    – Engine speed (tachometer)

    – Transmission gear

    – Ground speed

    – Engine hour meter

  • Ground-access ladders

  • Rear-vision camera

  • Front frame access with steps

  • Front walkway around cab

  • Pump bay access ladders with T-handle and platform

  • Tie-offs on ROPS and radiator guards

  • Steering frame lock

  • Stairways on both sides of the machine

  • LED stairway and access lights

  • Toe kicks

  • Electric (field and shop) horns

  • Retractable seatbelt, 76 mm (3 in) wide

  • Trainer seat with lap belt, 76 mm (3 in) wide

  • Back-up alarm

  • Secondary steering

  • MineStar Health ready

  • MineStar GUIDE ready

  • MineStar Edge ready

  • 12 hour (3240 L/856 gal)

  • Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])

  • Service center light

  • Implement and cooling fan oil level indicator

  • Steering and brake oil level indicator

  • Window washer solvent level indicator

  • Transmission oil level indicator

  • DEF level indicator (if equipped)

  • Fuel level indicator

  • Engine oil level indicator

  • Engine coolant level indicator

  • Automatic lubrication system grease tank level indicator

  • DEF purge indicator lamp

  • Transmission lockout and LED

  • Starter lockout and LED

  • Heavy-duty battery disconnect switch

  • Stairway light switch

  • Service lighting switch (if equipped)

  • Fuel shutoff engine shutdown switch

  • Engine oil fast-fill port

  • Transmission oil fast-fill port

  • Steering and brake hydraulic oil fast-fill port

  • Steering and brake hydraulic oil drain port

  • Oil renewal system fast-fill port (if equipped)

  • Engine coolant fast-fill port

  • DEF fill port (HRC only)

  • Implement and cooling fan hydraulic oil fast-fill port

  • Implement and cooling hydraulic oil drain port

  • Automatic lubrication system grease tank fill port

  • 24V jump-start receptacle

  • 240V jacket water and engine oil heater plug (if equipped)

  • 12V power port

  • VIMS key switch

  • 14-pin machine data port

  • EH steering eliminates need for neutralizer adjustment

  • In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps

  • High-pressure screens on the output side of implement, cooling fan, brake and steering pumps

  • Pump efficiency monitoring

  • Automatic lubrication system greases the linkage, hitch, steering and axle trunnion bearings

  • Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility

  • Rock guards on linkage grease lines

  • Cat O-ring face seal couplings

  • Lockable service access doors

  • Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles

  • High-speed engine oil change system

  • Ground-level fast-fill fuel system

  • Transmission guard

  • Drawbar hitch with pin

  • Cat XT hoses

  • Left-side service center

  • Oil sampling valves

  • Automatic Autolube filling shutoff valve

  • Telematics and Cat Electronic Technician service port in bumper

  • Air filter remaining useful life sensor

  • Premixed 50% concentration of extended-life coolant with freeze protection to –34° C (–29° F)

  • Rear access to cab and service platform

  • Load-sensing steering

  • Supplemental steering system

  • Vandalism protection caplocks

  • Cooling cleanout service package

  • VIMS download and Cat Electronic Technician service port in bumper

  • Service lights (engine bay, service center)

  • EH steering eliminates need for neutralizer adjustment

  • On demand throttle, HP Plus, and Enhanced ECO Modes

  • Variable displacement implement pumps

  • Variable displacement load sensing steering

  • Variable displacement cooling fan pump

  • Torque converter lock-up clutch

Optional Equipment

  • Oil Renewal System (ORS)* (for increased time between oil changes)

  • High lift

  • Rubber-mounted, high-impact resistant solar control glass

  • Trainer seat with suspension

  • Joystick lift and tilt function controls

  • Bluetooth®-enabled machine security

  • Sun screen, pull down (front and rear)

  • AM/FM/AUX radio

  • AM/FM/AUX/USB/BT/CD/SAT radio

  • Powered ground-access stairs

  • Cat Detect (Rear Object Detection)

  • Wheel chocks

  • Cold-weather cooling fan bypass (recommended for temperatures below –29° C [–20° F])

  • Heavy-duty starter (provides an additional electric starter motor and two additional batteries for a total of three starter motors and six batteries) (recommended for temperatures below 0° C [32° F])

  • 240V engine oil and coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])

  • Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])

  • Heated mirrors (recommended for below-freezing temperatures)

  • Cat Payload with Overload Prevention

  • New Autodig Components:
    – Tire slip prevention

    – Lift stall prevention

    – Tire set

  • Operator coaching

  • 24 hour (5350 L/1414 gal)

  • High ambient package (recommended for site conditions that do not exceed 53° C [127° F])

  • Rims – 1194 mm (47") (47 × 57); 152 mm (6") flange; For use with 58/85-57; 84PR L4 tires

  • Rims – 1194 mm (47") (47 × 57);127 mm (5") flange; For use with 60/80 R57; L5R XMine D2 SR tires

  • Tires – 58/85-57 84PR L4 (require 47" rims)

  • 1194 mm (47") 152 mm (44 × 57) (6") flange

  • 1194 mm (47") 127 mm (47 × 57) (5") flange

  • Product Link satellite

  • Product Link cellular

  • Product Link (dual mode – satellite/cellular)

  • Additional service lights (pump bay, front frame and bumper)

  • Sound-suppression package
