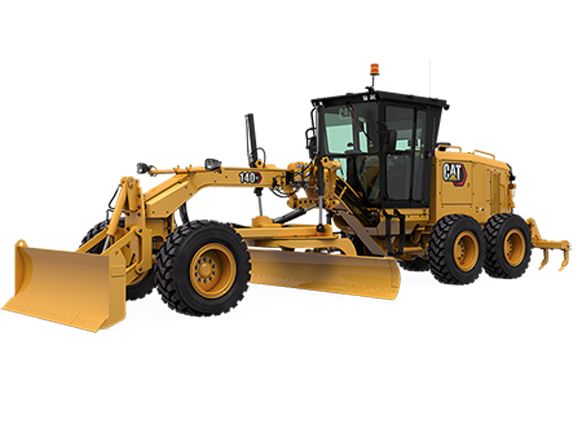

The Cat® 140 GC Motor Grader is easy to own and operate. A demand fan and standard Eco mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent movement using lever controls from the comfort of the all new cab. Not all features available in all regions. Consult your Cat dealer for specific configurations available in your region.
Engine Power (ISO 14396) 196 hp
Operating Weight - Typically Equipped 38725 lb
Blade Width 12 ft
Bore 4.1 in
Bore 4.1in
Derating Altitude 9842ft
Displacement 427.8in³
Emissions U.S. EPA Tier 4 Final/EU Stage V
Engine Model Cat 7.1
Engine Power (ISO 14396) 196hp
Engine Power AWD (ISO 14396) 196hp
Engine RPM 2,200
High - Ambient Capability 122°F
Maximum Torque - ISO 9249 616lb/ft
Note (1) Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
Note (2) Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (3) Power as declared per ISO 14396
Number of Cylinders 6
Standard Capability 109°F
Stroke 5.3in
Torque Rise - ISO 9294 40%
Note *Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, rear ripper, tires on multi-piece rims (*17.5-25 Bias/**17.5R-25), and other equipment.
Operating Weight - Typically Equipped 38725lb
Arc Radius 16.3in
Blade Height 24in
Blade Width 12ft
Cutting Edge Width 6in
End Bit 6in
Throat Clearance 4.4in
Length of Machine* 406.7in
Maximum Height 132.4in
Note *Typically equipped with push block and ripper.
Width 95.6in
Width All Wheel Drive (AWD) 99.3in
Blade Tip Range Backward 5
Blade Tip Range Forward 40
Circle Center Shift Left 29.6in
Circle Center Shift Right 28.7in
Maximum Depth of Cut 28.1in
Maximum Lift Above Ground 18.7in
Maximum Shoulder Reach Left 74.3in
Maximum Shoulder Reach Right 71.3in
Moldboard Side Shift Left 25.6in
Moldboard Side Shift Right 20.7in
Circle Drive with Slip Clutch 2gal (US)
Circle Drive without Slip Clutch 0.5gal (US)
Cooling System 40l
Diesel Exhaust Fluid Tank (Tier 4 Only) 4.2gal (US)
Engine Crankcase 5.5gal (US)
Fuel Tank 78gal (US)
Hydraulic System 11.9gal (US)
Transmission 4.8gal (US)
All-Wheel Drive Weight (AWD) (Stage V)* 40543lb
All-wheel Drive Weight (AWD) (Tier 4 Final)** 42119lb
Weight (Tier 4 Final)** 40488lb
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
Standard and optional equipment may vary. Consult your Cat dealer for details.
Standard Seat
Steering Wheel/Lever Controls
Base Cab
Information Display Screen
Halogen Lighting
Entertainment Radio Ready
Product Link
Cell Phone Holder
Cat C7.1
Eco mode
On-Demand Fan
No-Spin Differential
Parking Brake
Signaling/Warning Horn
Rearview Mirror
Hydraulic Brakes
Sideview Mirrors
Walkways and Grab Rails
Hydraulic System with Integrated Work Port Pressure Relief
Hydraulic System with Integrated Dead Engine Implement Lower
Standard and optional equipment may vary. Consult your Cat dealer for details.
Mechanical Suspension Seat
Air Suspension Seat
ROPS/FOPS
Heating/Cooling Cab System
Rear Wiper
Canopy
Cab Plus
Rear Window Screen
Front Wipers
Digital Blade Slope Meter
Reversing Fan
All-Wheel Drive (AWD)
Circle Drive Slip Clutch
Circle Saver
Rearview Camera
Secondary Steering System
Front View Camera
Four-point Safety Harness Seat Belt
Scarifier
Counterweight
Push Block
Front Lift Group From Factory
Snow Wing
Front Blade
L3 Tires
Sy-Klone Pre-Cleaner
