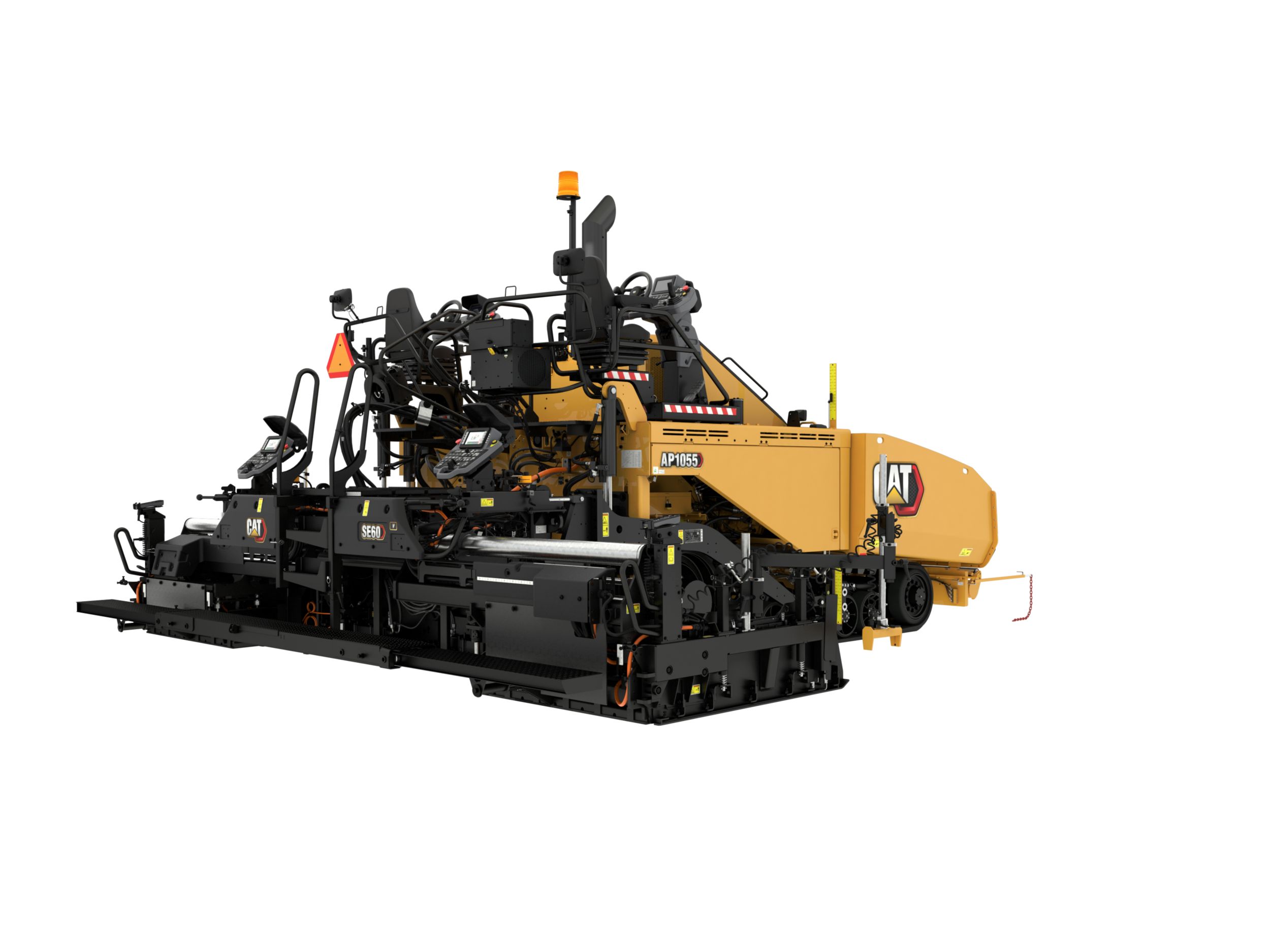

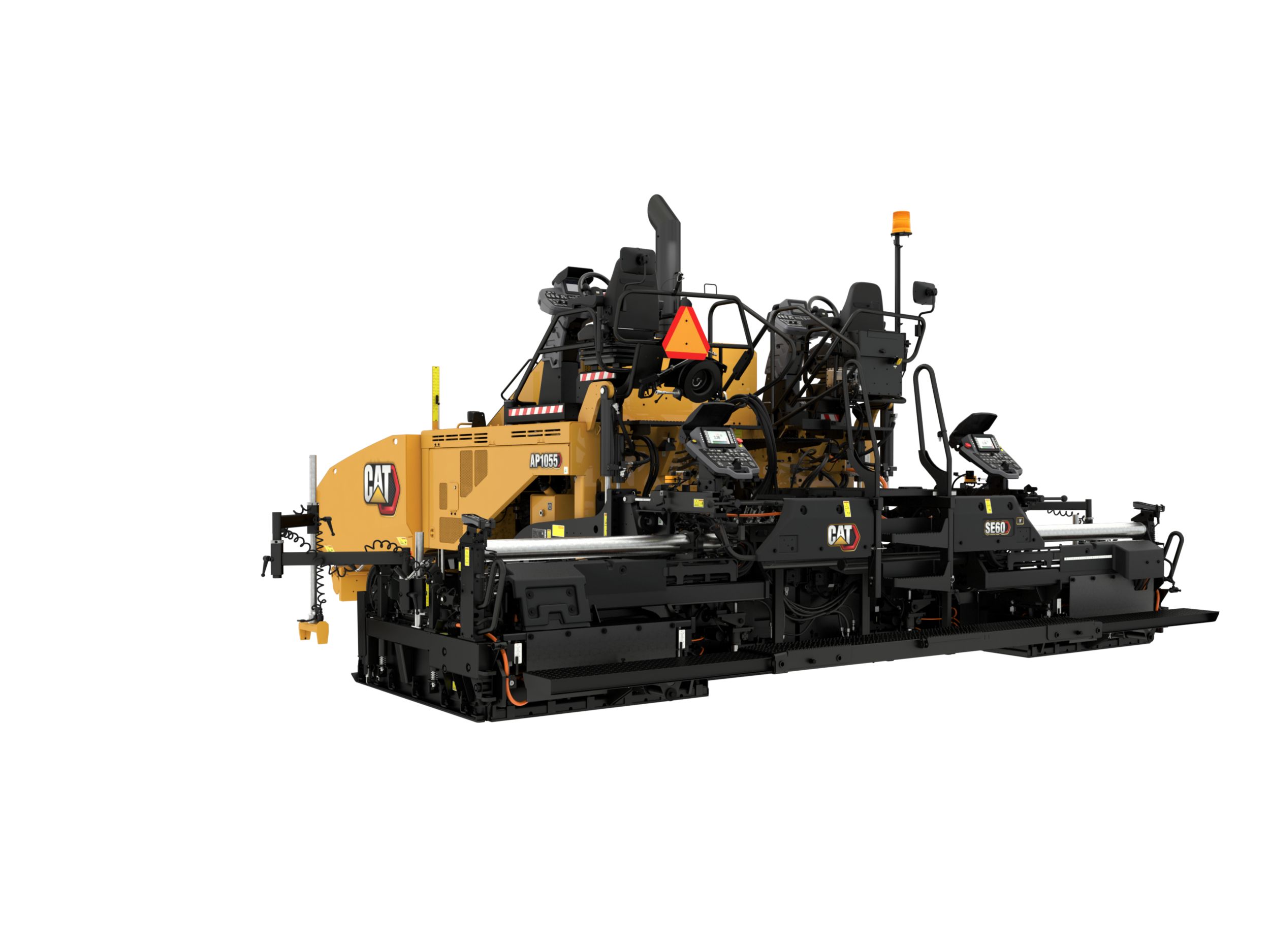

SE60 V Screed

The Cat® SE60 V Asphalt Screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for highways, interstates, airports, and many other high-production paving applications.

  • Standard Weight 7826 lb

  • Standard Paving Range 3.0 - 6.0 m (9' 10" - 19' 6"')

  • Maximum Paving Width 24.5 ft

  • Maximum Paving Depth 12 in

Request a quote

Product Specifications

Specifications

Weights

  • Standard Weight 7826lb

Operating Specifications

  • Crown Range -4% to +10%

  • Extender Height Range +50 mm to -20 mm

  • Extender Slope Range -3% to +10%

  • Heating Time - Maximum Width 25 minutes

  • Heating Time - Standard Width 15 minutes

  • Maximum Paving Depth 12in

  • Maximum Paving Width 24.5ft

  • Standard Paving Range 3.0 - 6.0 m (9' 10" - 19' 6"')

  • Vibratory Speed Range 0 - 3000 rpm

Dimensions

  • Length - Front to Back, Endgates Attached 94in

  • Length - Front to Back, Endgates Removed 68in

  • Screed Plate Width - Front to Back 16in
