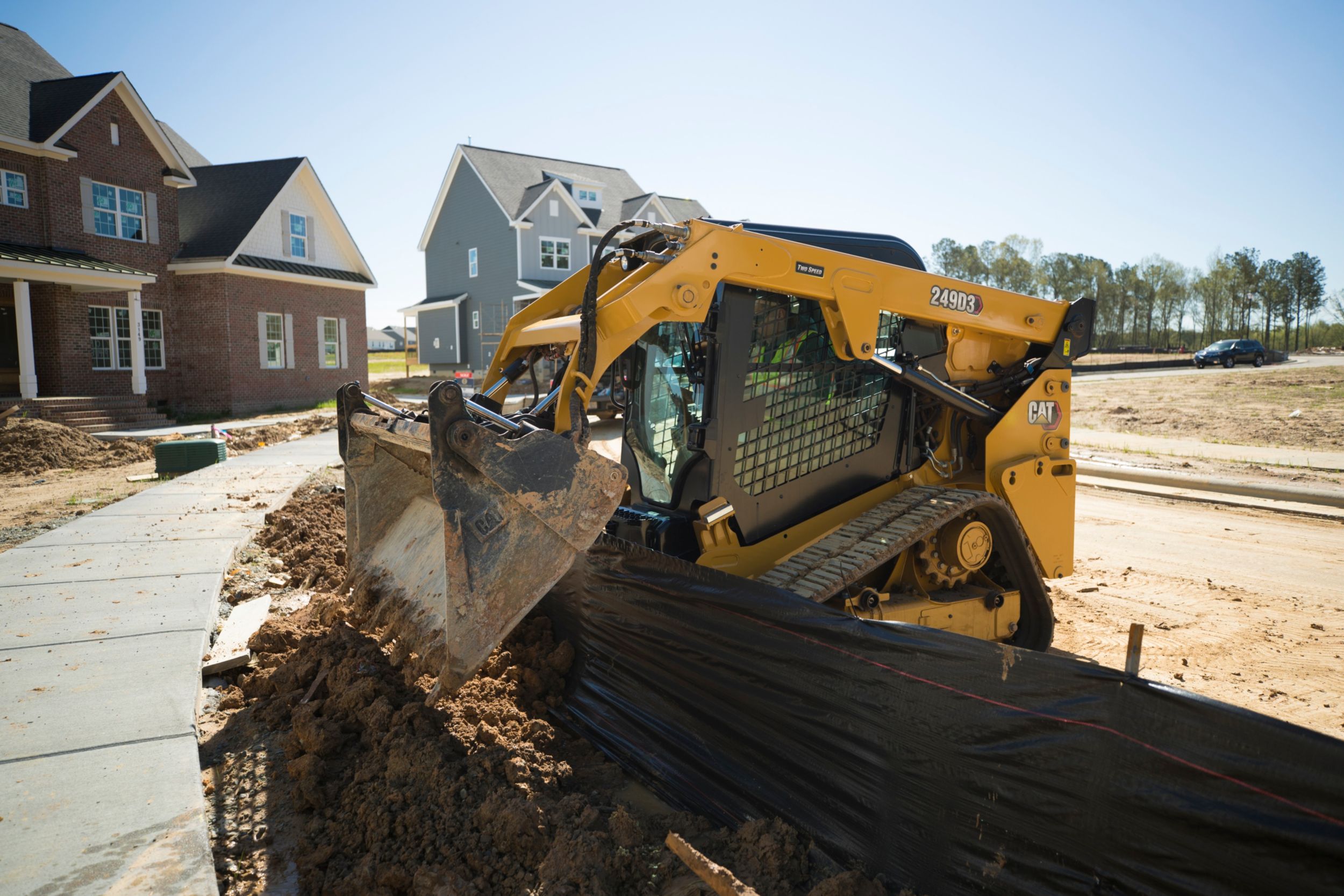

249D3 Compact Track Loader

The Cat® 249D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

  • Gross Power - SAE J1995 67.1 hp

  • Rated Operating Capacities - 35% Tipping Load 1740 lb

  • Operating Weight 7831 lb

  • Displacement 134.3 in³

Request a quote

Product Specifications

Specifications

Engine

  • Bore 3.3in

  • Displacement 134.3in³

  • Engine Model Cat C2.2 CRDI

  • Gross Power - SAE J1995 67.1hp

  • Net Power 65.8hp

  • Net Power - ISO 9249 66.5hp

  • Net Power - SAE 1349 65.8hp

  • Peak Torque - 1,500 rpm - SAE J1995 153ft·lbf

  • Stroke 3.9in

Operating Specifications

  • Breakout Force - Tilt Cylinder 3907lb

  • Ground Contact Area - With 320 mm/12.6 in Track 1373in²

  • Ground Contact Area - With 400 mm/15.7 in Track 1716in²

  • Ground Pressure - With 320 mm/12.6 in Track 5.7psi

  • Ground Pressure - With 400 mm/15.7 in Track 4.7psi

  • Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick c

  • Rated Operating Capacities - 35% Tipping Load 1740lb

  • Rated Operating Capacities - 50% Tipping Load 2485lb

  • Rated Operating Capacity with Optional Counterweight 2700lb

  • Tipping Load 4970lb

Weights

  • Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick c

  • Operating Weight 7831lb

Dimensions

  • Bucket Pin Height - Carry Position 8.6in

  • Bucket Pin Height - Maximum Lift 118.2in

  • Bucket Pin Reach - Maximum Lift 12.2in

  • Clearance at Maximum Lift and Dump 88.7in

  • Departure Angle 34.5°

  • Ground Clearance 7.6in

  • Height - Top of Cab 80.3in

  • Length - Track on Ground 54.5in

  • Length - With Bucket on Ground 127.3in

  • Length - Without Bucket 99.3in

  • Maximum Dump Angle 48°

  • Maximum Overall Height 150.8in

  • Maximum Reach - With Arms Parallel to Ground 51.8in

  • Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick c

  • Overall Length - Track 71.2in

  • Rack Back Angle - Maximum Height 87.5°

  • Reach - Maximum Lift/Dump 28.6in

  • Turning Radius from Center - Bucket 81.1in

  • Turning Radius from Center - Coupler 45.7in

  • Turning Radius from Center - Machine Rear 57.4in

  • Vehicle Width (320 mm/12.6 in tracks) 66in

  • Vehicle Width (400 mm/15.7 in tracks) 69.1in

Cab

  • FOPS ISO 3449:2005 Level I

  • ROPS ISO 3471:2008

Hydraulic System

  • Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 50.9hp

  • Hydraulic Flow - High Flow - Loader Hydraulic Flow 26gal/min

  • Hydraulic Flow - High Flow - Loader Hydraulic Pressure 3336psi

  • Hydraulic Flow - Standard - Hydraulic Power (Calculated) 35.5hp

  • Hydraulic Flow - Standard - Loader Hydraulic Flow 18gal/min

  • Hydraulic Flow - Standard - Loader Hydraulic Pressure 3336psi

Power Train

  • Travel Speed - Forward or Reverse - One Speed 5mile/h

  • Travel Speed - Forward or Reverse - Two Speed 7.6mile/h

Service Refill Capacities

  • Cooling System 3.2gal (US)

  • Engine Crankcase 2.6gal (US)

  • Fuel Tank 15.1gal (US)

  • Hydraulic System 11.9gal (US)

  • Hydraulic Tank 9gal (US)

Noise Level

  • Inside Cab** 83dB(A)

  • Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

  • Note (2) **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan spe

  • Note (3) ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

  • Outside Cab*** 103dB(A)

Air Conditioning System (if equipped)

  • Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Features

Equipment

Standard Equipment

  • 12 volt Electrical System

  • 80 ampere Alternator

  • Ignition Key Start/Stop Switch

  • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light

  • Backup Alarm

  • Heavy Duty Battery, 850 CCA

  • Gauges: Fuel Level, Hour Meter

  • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged

  • Adjustable Vinyl Seat

  • Fold In Ergonomic Contoured Armrest

  • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages

  • ROPS Cab, Open, Tilt Up

  • FOPS, Level I

  • Top and Rear Windows

  • Floor Mat

  • Interior Rearview Mirror

  • 12 volt Electric Socket

  • Horn

  • Hand (Dial) Throttle, Electronic

  • Adjustable Joystick Controls

  • Anti-theft Security System with 6-button Keypad

  • Storage Compartment with Netting

  • Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V emission standards

  • Air Cleaner, Dual Element, Radial Seal

  • S·O·SSM Sampling Valve, Hydraulic Oil

  • Filters, Cartridge-type, Hydraulic

  • Filters, Canister-type, Fuel and Water Separator

  • ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)

  • Spring Applied, Hydraulically Released Parking Brakes

  • Hydrostatic Transmission, Two Speed Travel

  • Suspension – Independent Torsion Axles (4)

  • Engine Enclosure, Lockable

  • Extended Life Antifreeze, –36° C (–33° F)

  • Machine Tie Down Points (6)

  • Support, Lift Arm

  • Hydraulic Oil Level Sight Gauge

  • Radiator Coolant Level Sight Gauge

  • Radiator, Expansion Bottle

  • Cat ToughGuard Hose

  • Auxiliary, Hydraulics, Continuous Flow

  • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release

  • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm

  • Electrical Outlet, Beacon

  • Belly Pan Cleanout

  • Variable Speed Demand Fan

  • Product Link PL240, Cellular

  • Hydraulics, Standard or High Flow

  • Quick Coupler, Mechanical or Powered

  • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)

  • EU Preparation Package (Europe only)

  • Steel Imbed Rubber Track – 320 mm (12.6 in) Block Tread or 400 mm (15.7 in) Bar Tread

  • Dual Flange Front Idler/Single Flange Rear Idler

  • PERFORMANCE PACKAGES:
    – Performance Package H1: Standard Flow Hydraulics (No Self Level)
    – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    – Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)

  • COMFORT PACKAGES
    – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
    – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
    – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
    – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

  • Hand-Foot Style Controls

  • External Counterweights

  • Beacon, Rotating

  • Engine Block Heater – 120V

  • Oil, Hydraulic, Cold Operation

  • Paint, Custom

  • Product Link PL641, Cellular

  • Ride Control

  • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control. (Standard Equipment in Europe Only)

  • Work Tool Return to Dig and Work Tool Positioner

  • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
