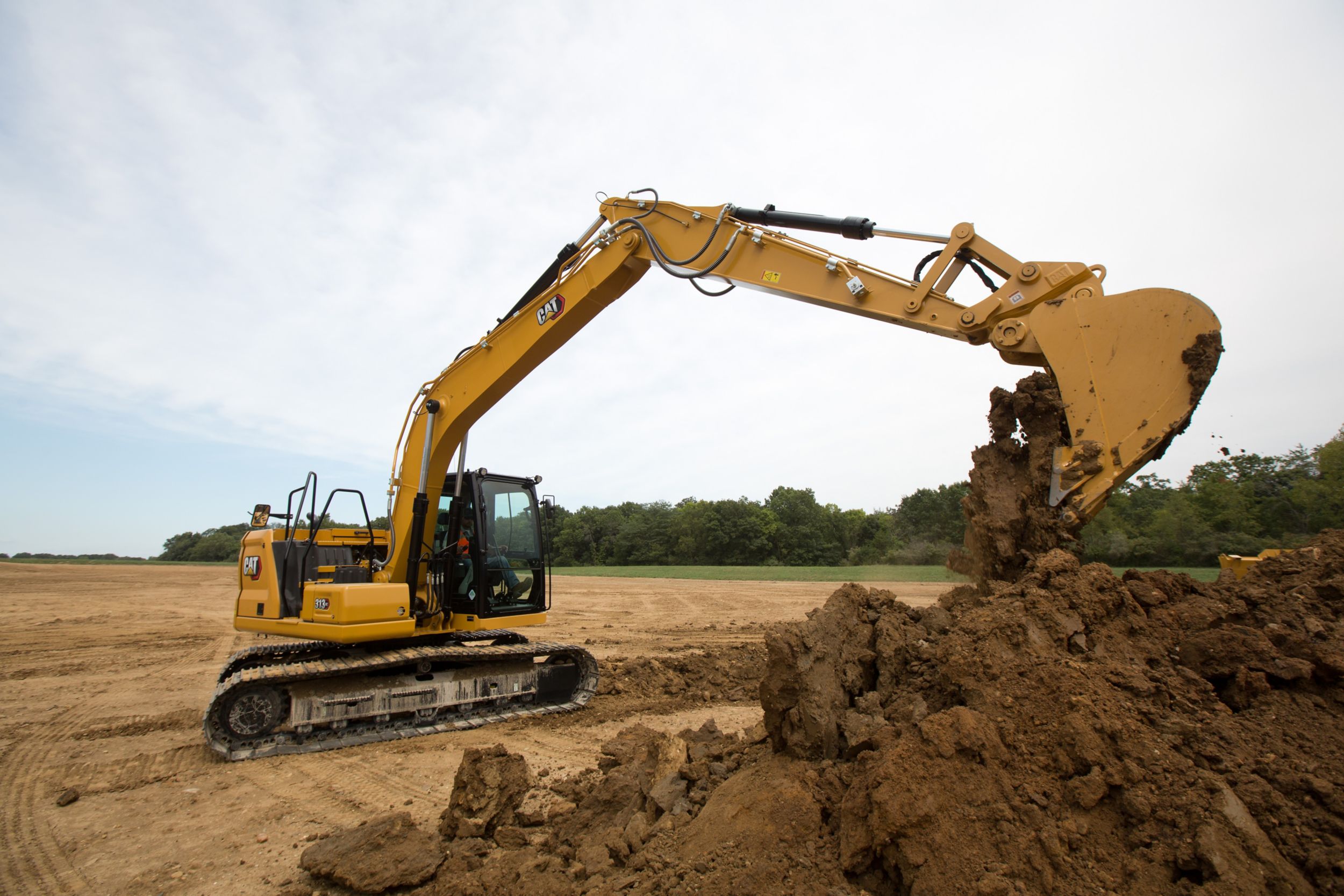

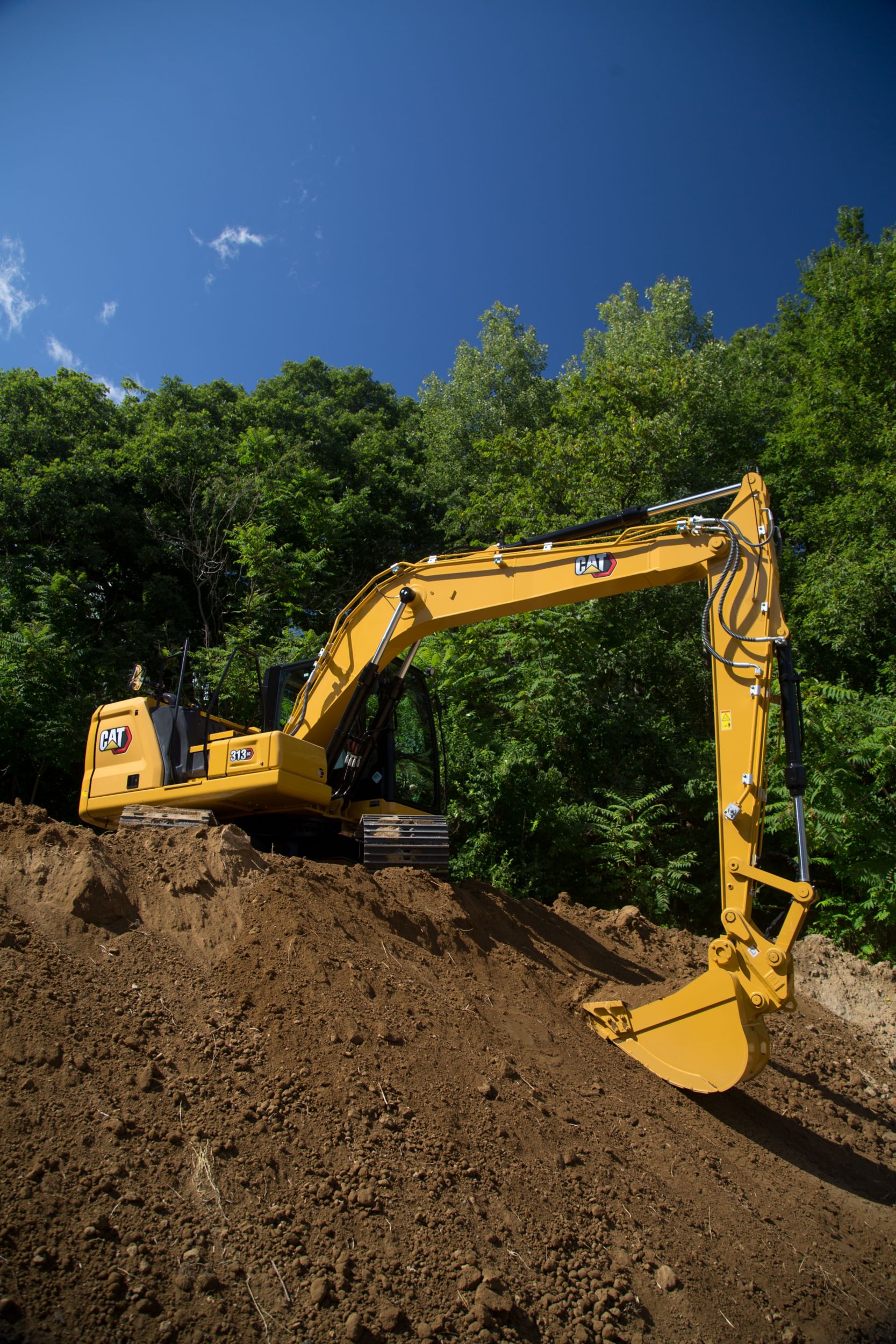

The Cat® 313 GC excavator matches its performance to your job. A large cab keeps you comfortable all shift long. Combined with fuel-saving features and long maintenance intervals, the 313 GC provides reliability at a low-cost-per-hour.
Net Power - ISO 9249 73 hp
Operating Weight 30400 lb
Maximum Digging Depth 19.8 ft
Engine Model Cat C3.6
Biodiesel Capability Up to B20¹
Bore 4in
Displacement 220in³
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards
Engine Model Cat C3.6
Engine Power - ISO 14396 (DIN) 75hp (metric)
Engine Power - ISO 14396:2002 74hp
Net Power - ISO 9249 73hp
Net Power - ISO 9249 (DIN) 74hp (metric)
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO
Stroke 5in
Operating Weight 30400lb
Boom Reach 4.65 m (15'3")
Bucket GD 0.68 m³ (0.89 yd³)
Bucket Digging Force - ISO 22180lbf
Maximum Cutting Height 29ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 19.3ft
Maximum Digging Depth 19.8ft
Maximum Loading Height 21.1ft
Maximum Reach at Ground Level 28.4ft
Maximum Vertical Wall Digging Depth 17ft
Minimum Loading Height 5.3ft
Minimum Working Equipment Radius 8.4ft
Stick Reach R3.0 m (9'8")
Stick Digging Force - ISO 13330lbf
Main System - Maximum Flow 247 L/min (65 gal/min)
Maximum Pressure - Equipment 5075psi
Maximum Pressure - Swing 3770psi
Maximum Pressure - Travel 5075psi
Maximum Swing Torque 25888lbf·ft
Swing Speed 11.5r/min
Cooling System 4gal (US)
Engine Oil 2.1gal (US)
Final Drive - Each 0.8gal (US)
Fuel Tank Capacity 68.2gal (US)
Hydraulic System - Including Tank 22.5gal (US)
Hydraulic Tank 18.5gal (US)
Boom Reach 4.65 m (15'3")
Bucket GD 0.68 m³ (0.89 yd³)
Counterweight Clearance 3ft
Ground Clearance 1.5ft
Handrail Height 9.3ft
Length to Center of Rollers 10ft
Shipping Height - Top of Cab 9.3ft
Shipping Length 26.4ft
Shipping Length - with Blade 26.3ft
Stick Reach R3.0 m (9'10")
Tail Swing Radius 7.2ft
Track Gauge 6.5ft
Track Length 12.3ft
Transport Width 8.2ft
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 hg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.
Standard and optional equipment may vary. Consult your Cat dealer for details.
4.65 m (15'3") Reach boom
Rollover protective structure (ROPS)
Comfort Cab: air suspension seat, 203 mm (8") touch screen monitor
VisionLink®
Remote Flash
Maintenance free battery
LED chassis light, left-side boom light, cab lights
Programmable time-delay LED working lights
Cat C3.6 single turbo diesel engine
Auto engine speed control
Auto engine shutdown
52°C (125°F) high-ambient cooling capacity without de-rate
-18°C (0°F) cold start capability
Electric fuel priming pump
Variable speed fan
Single fuel filtration system
Double element air filter with integrated precleaner
Biodiesel capability up to B20
Boom and stick regeneration circuit
Auto hydraulic warm up
Auto two speed travel
Electric main control valve
Boom and stick drift reduction valve
Rear and right-side-view cameras
Hydraulic lock out lever
Ground-level engine shutoff switch
Service platform with anti-skid plate and countersunk bolts
Signaling/warning horn
Grouped engine oil and fuel filters
Side entry to service platform
Ground-level engine oil dipstick
Sampling ports for Scheduled Oil Sampling (S·O·S)
Lockable disconnect switch
Integrated vehicle health management system
Grease lubricated track link
Tie down points on base frame
2470 kg (5,445 lb) counterweight
Standard and optional equipment may vary. Consult your Cat dealer for details.
2.5 m (8'2") Reach stick (Standard in the Kingdom of Saudi Arabia and Türkiye)
2.8 m (9'2") Reach stick
2.8 m (9'2") Thumb Ready stick
3.0 m (9'10") Reach stick
Operator Protective Guards (OPG)
VisionLink Productivity
LED right-side boom light
360° lighting
Boom and stick lowering check valves
Medium-pressure line
High-pressure line
Quick coupler line
Swing alarm
Inspection lighting
500 mm (20") triple grouser shoes
500 mm (20") triple grouser shoes with rubber pad
500 mm (20") rubber track shoes
600 mm (24") rubber track shoes
600 mm (24") triple grouser shoes
700 mm (28") triple grouser shoes
2500 mm (8'2") blade
2600 mm (8'6") blade
2700 mm (8'10") blade
