CB1.8 Utility Compactor

CB1.8 Utility Compactor

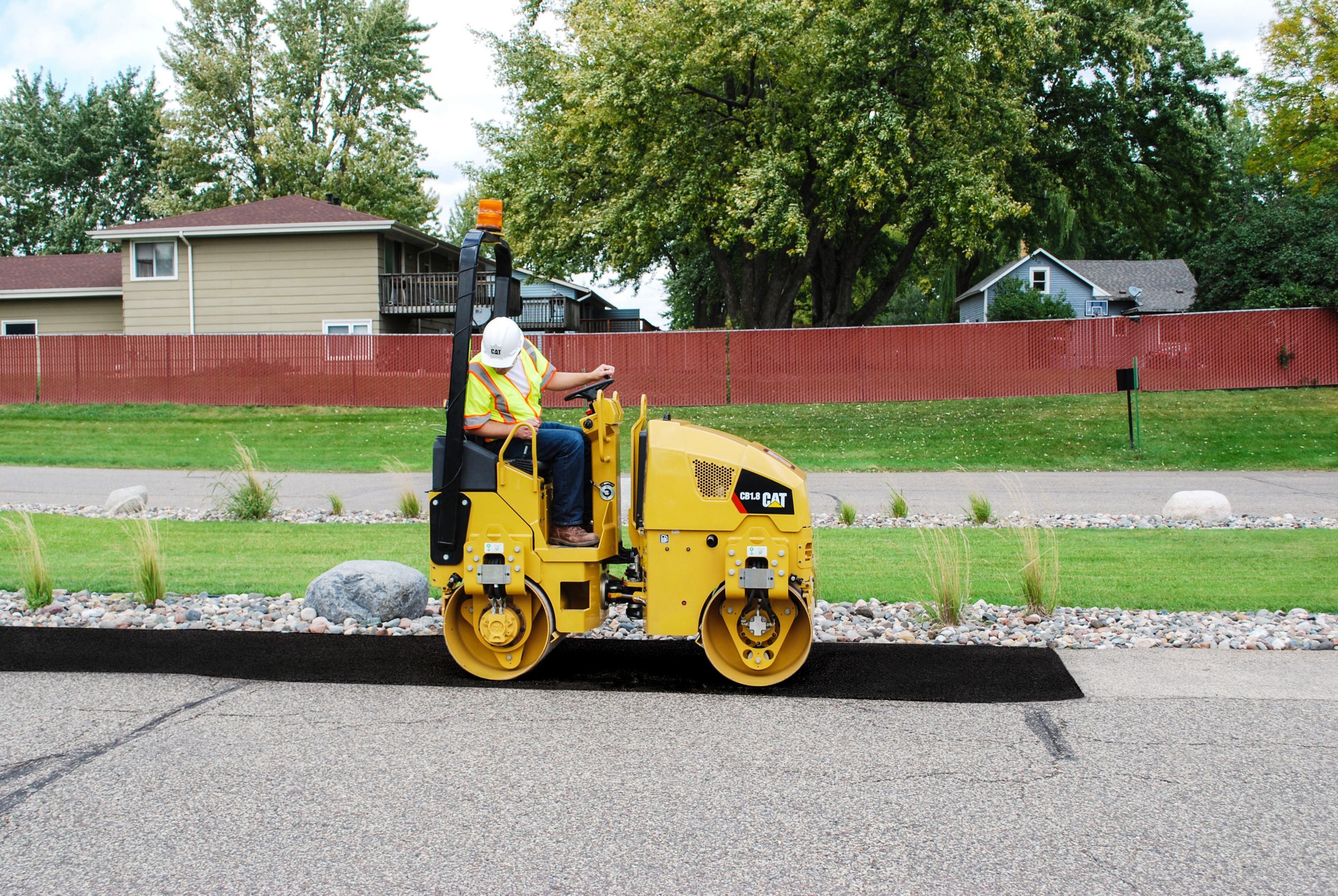

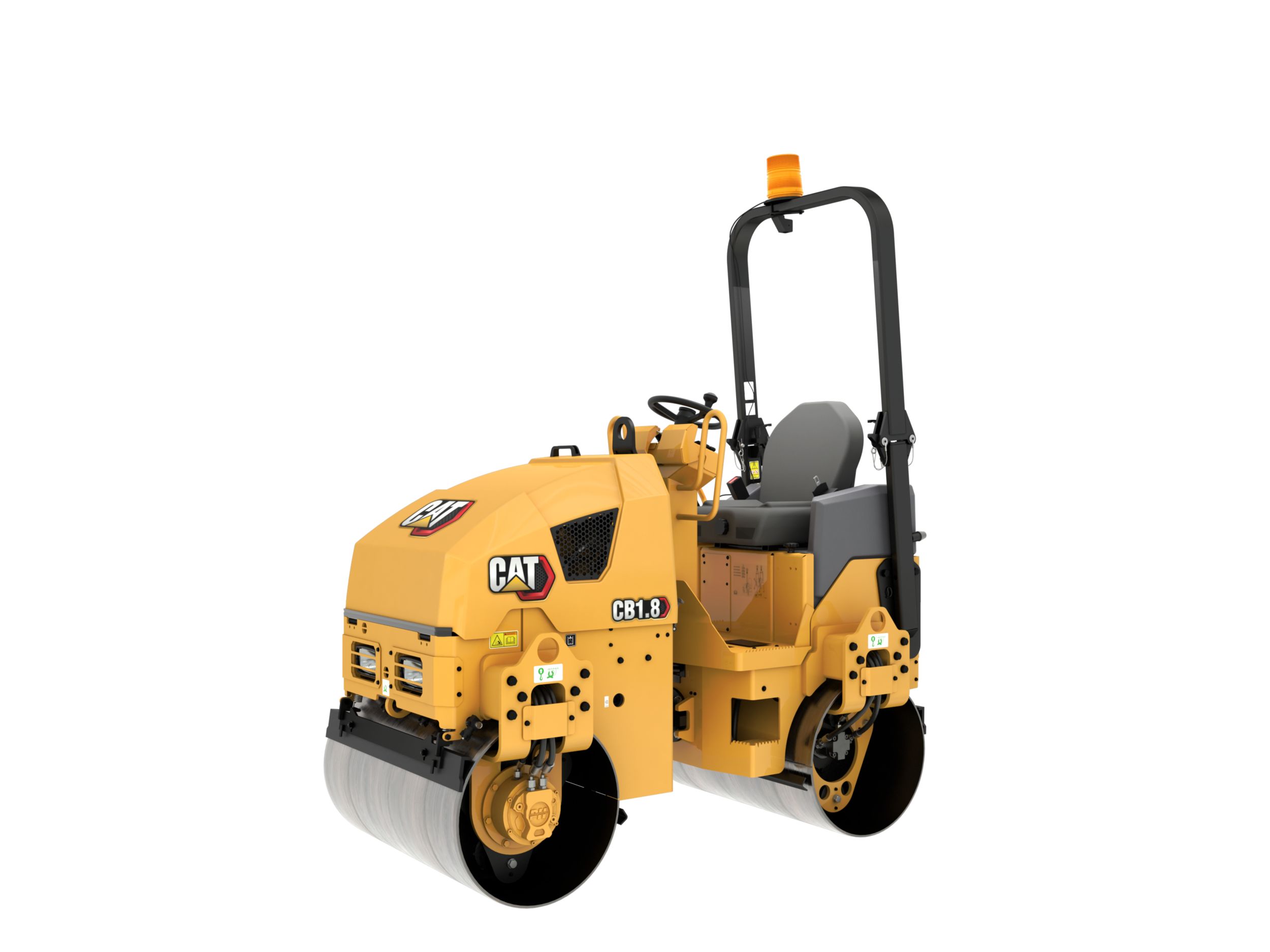

The CB1.8 is a 1.8 metric ton utility roller with 1000 mm (39 in) tandem vibratory drums.

  • Operating Weight 3825 lb

  • Standard Compaction Width 39 in

  • Gross Power 24.7 hp

  • Fuel Tank Capacity 7.9 gal (US)

Request a quote

Product Specifications

Specifications

Weights

  • Operating Weight 3825lb

Operating Specifications

  • Curb Clearance 16in

  • Ground Clearance 10in

  • Standard Compaction Width 39in

  • Static Linear Load 63lb/in

  • Travel Speed - Maximum 5.3mile/h

  • Turning Radius - Inside Drum Edge 75in

Engine

  • Engine Model Cat C1.1

  • Gross Power 24.7hp

Service Refill Capacities

  • Fuel Tank Capacity 7.9gal (US)

  • Water Spray Tank Capacity 38gal (US)

Vibratory System

  • Centrifugal Force per Drum - Maximum 3057lb

  • Frequency 3420V/m

  • Nominal Amplitude - High 0.018in

Dimensions

  • Drum Diameter 22.5in

  • Drum Width 39in

  • Maximum Machine Height 94.5in

  • Overall Length 80in

  • Overall Width 44in

Features

Equipment

Standard Equipment

  • ROPS Folding

  • Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights

  • Dual 12-volt Power Outlet

  • Horn, Backup Alarm

  • Folding Scrapers

  • Vibe Selection - Front, Rear, or Both

  • Pressurized, Triple-Filtration Spray System

  • Air Cleaner, Dual Element

  • Engine Belt Guard

  • ProductLinkTM

  • Working Lights

  • Vandal Protection - Lockable Hood and Controls Cover

  • Machine Life and Tiedowns

Optional Equipment

  • Adjustable Suspension Seat w/ Operator Presence Switch

  • ROPS Fixed

  • Battery Disconnect

  • Roading Lights

  • Rotating Amber Beacon

  • Light Guards

  • Single Point Lift
