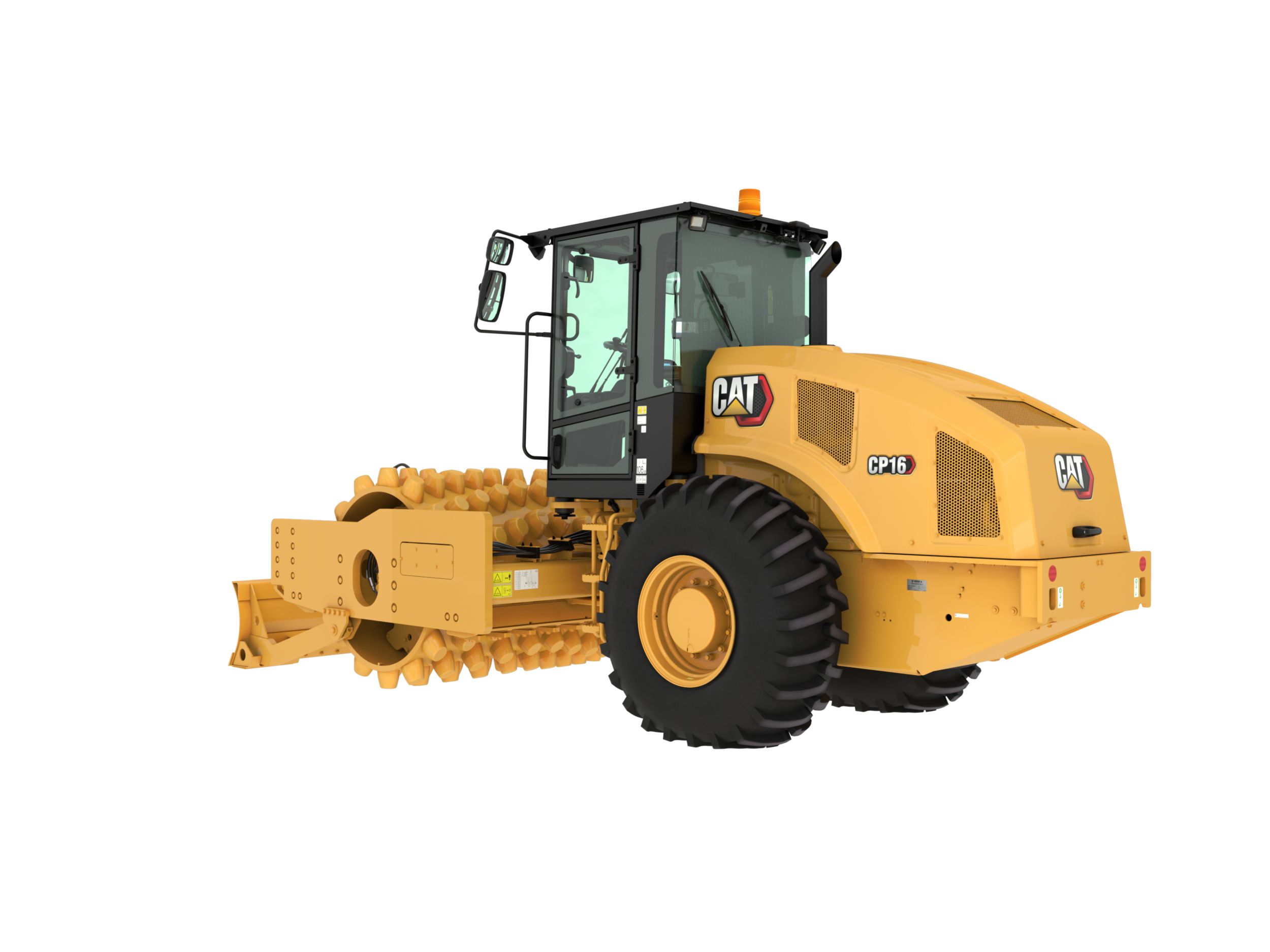

The Cat® CP16 Vibratory Soil Compactor features a padfoot drum and is ideally suited for cohesive and semi-cohesive soil applications. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.
Operating Weight - With Cab 36390 lb
Compaction Width 84 in
Gross Power 175.7 hp
Engine Power - ISO 14396 173.5 hp
Note (1) Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.
Operating Weight - With Cab 36390lb
Weight - Drum with Cab 23464lb
Compaction Width 84in
Drum Diameter - Over Pads 61in
Maximum Height 10.2ft
Optional Blade Height 26.9in
Overall Length 19.8ft
Overall Length - With Blade Option 21.5ft
Overall Width 7.7ft
Overall Width - With Blade Option 8.2ft
Wheel Base 9.5ft
Bore 4.1in
Emissions U.S. EPA Tier 4 Final
Engine Model Cat® C4.4
Engine Power - ISO 14396 173.5hp
Gross Power 175.7hp
Net Power - ISO 9249 147.1hp
Net Power - SAE J1349 145.2hp
Note (1) Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Stroke 5in
Centrifugal Force - Maximum 75234lb
Centrifugal Force - Minimum 35163lb
Nominal Amplitude - High 0.083in
Nominal Amplitude - Low 0.039in
Variable Frequency Option Range 23.3 - 28 Hz (1400-1680 vpm)
Vibratory Frequency - Standard 1680VPM
Curb Clearance 19.6in
Ground Clearance 17.2in
Travel Speed - Maximum 7.1mile/h
Turning Radius - Inside Drum Edge 12.1ft
Axle and Final Drives 6.3gal (US)
Cooling System 7.4gal (US)
DEF Tank 5gal (US)
Eccentric Weight Housings (combined) 6.9gal (US)
Engine Oil - With Filter 3.1gal (US)
Fuel Tank Capacity 81.1gal (US)
Hydraulic Tank 13.2gal (US)
Recyclability 97%
Standard and optional equipment may vary. Consult your Cat dealer for details.
ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors
Adjustable Seat with Integrated Console
LCD Display with Lockable Vandalism Guard
Adjustable Tilting Steering Column with Integrated Cup Holders
Rear Vision Camera System with Color Touchscreen Display
High Visibility 50 mm (2 in) Seat Belt
12-volt Power Outlet
Horn, Backup Alarm
Padfoot Drum - Oval or Square Pads
Pod-Style Eccentric Weight Housings
Dual Amplitude, Single Frequency
Auto-vibe Function
Dual Adjustable Steel Scrapers
VisionLink®
Cat® C4.4 Engine
Air Cleaner, Dual Element
Three Speed Throttle Switch including Eco-mode
Automatic Speed Control (ASC)
Dual Propel Pumps; One for Drum Drive, One for Rear Axle
Fuel Filter, Water Separator, Priming Pump, Water Indicator
Tilting Radiator / Hydraulic Oil Cooler
Dual Braking System
Two-Speed Hydrostatic Transmission
Limited Slip Differential
24 volt Electrical System
100 ampere Alternator
750 Cold-cranking Amps Battery Capacity
Lockable Engine Enclosure, Hydraulic and Fuel Tanks
Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant
Halogen Working Lights (4)
Standard and optional equipment may vary. Consult your Cat dealer for details.
Sun Visor (Cab)
Roll-Down Screen (Cab)
High Visibility 76 mm (3 in) Seat Belt
Variable Frequency
Leveling Blade
Measure - Machine Drive Power (MDP)
Command for Compaction
Transmission Guard
Factory Filled Bio-Hydraulic Oil
Halogen Working Lights (8)
Amber Rotating Beacon
