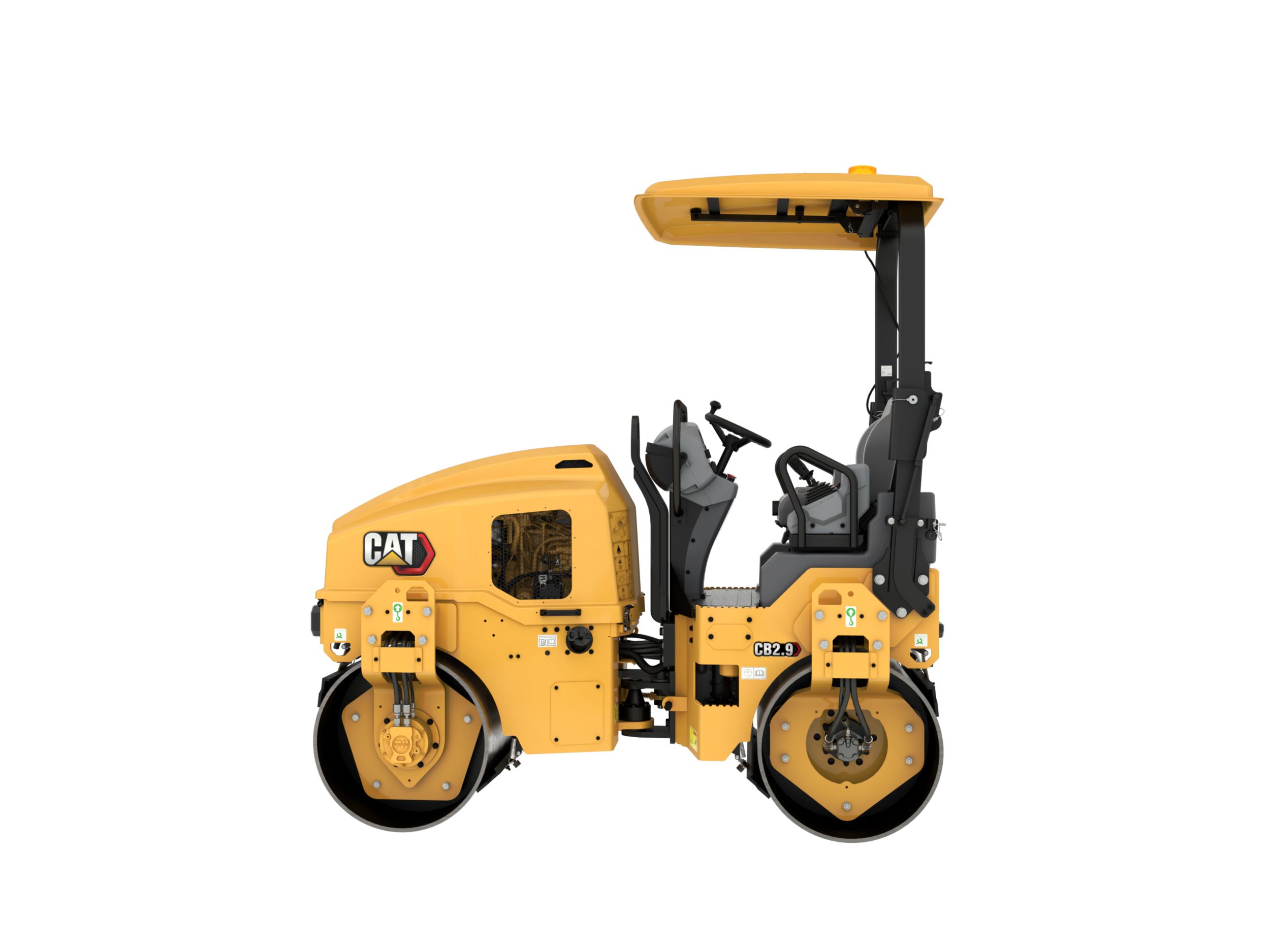

CB2.9 Utility Compactor

CB2.9 Utility Compactor

The CB2.9 is a 2.9 to 3 metric ton compactor with 1300 mm (51 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

  • Standard Operating Weight with ROPS 6415 lb

  • Compaction Width 51.2 in

  • Gross Power 48.2 hp

  • Maximum Weight at Front Drum 3060 lb

Request a quote

Product Specifications

Specifications

Weights

  • Maximum Operating Weight with Cab 6415lb

  • Maximum Operating Weight with ROPS 6415lb

  • Maximum Weight at Front Drum 3060lb

  • Maximum Weight at Rear Drum 3355lb

  • Standard Operating Weight with ROPS 6415lb

  • Static Linear Load 59.8lb/in

Dimensions

  • Compaction Width 51.2in

  • Drum Diameter 28.3in

  • Drum Width 51.2in

  • Height - ROPS 70.8in

  • Overall Length 99.2kg/cm

  • Overall Width 55.6in

  • Wheel Base 70.9in

Engine

  • Engine Model C1.7T

  • Gross Power 48.2hp

  • Net Power - ISO 9249 47.6hp

Operating Specifications

  • Curb Clearance 17.8in

  • Drum Offset 2in

  • Ground Clearance 11.2in

  • Speed Range 12 km/hr 7.5 mph

  • Static Linear Load 59.8lb/in

  • Travel Speed - Maximum 7.5mile/h

  • Turning Radius - Inside Drum Edge 98in

  • Turning Radius - Outside Drum Edge 149.2in

Vibratory System

  • Centrifugal Force - Maximum 8109lb/ft

  • Frequency 3840VPM

  • Nominal Amplitude - High 0.02in

Service Refill Capacities

  • Fuel Tank Capacity 14.37gal (US)

  • Water Spray Tank Capacity 52.8gal (US)

Features

Equipment

Standard Equipment

  • Adjustable Suspension Seat with Operator Presense Switch

  • ROPS Folding

  • Seat Belt - 75 mm (3 in) high visibility orange

  • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box

  • 12-volt Power Outlet

  • Horn, Backup Alarm

  • Folding Scrapers

  • Vibe Selection - front, rear, or both

  • Pressurized, Triple-Filtration Spray System with Test Mode

  • Auto Engine Off and Auto Warmup

  • Air Cleaner, Dual Element

  • Engine Belt Guard

  • Telematics

  • LED Working Lights

  • Vandal Protection - lockable hood, fuel fill, and controls cover

  • Machine Life and Tiedowns

  • Offsets Hitch

Optional Equipment

  • ROPS Fixed

  • Sun Canopy

  • Seat - Side Shift

  • Dual Propel Levers

  • Fixed Scrapers

  • Cocoa Mats

  • Edge Cutter Ready

  • Water Sprayer Antifreeze Kit

  • Ballast Kit - 200 kg (440 lb)

  • Ballast Kit - 400 kg (880 lb)

  • Traction Control

  • Remote Flash / Troubleshoot

  • CMV - Compaction Measurement Value

  • Battery Disconnect

  • LED Roading Lights

  • Rotating Amber Beacon

  • Biodegradeable Hydraulic Oil

  • Bumpers

  • Single Point Lift

  • Custom Paint
