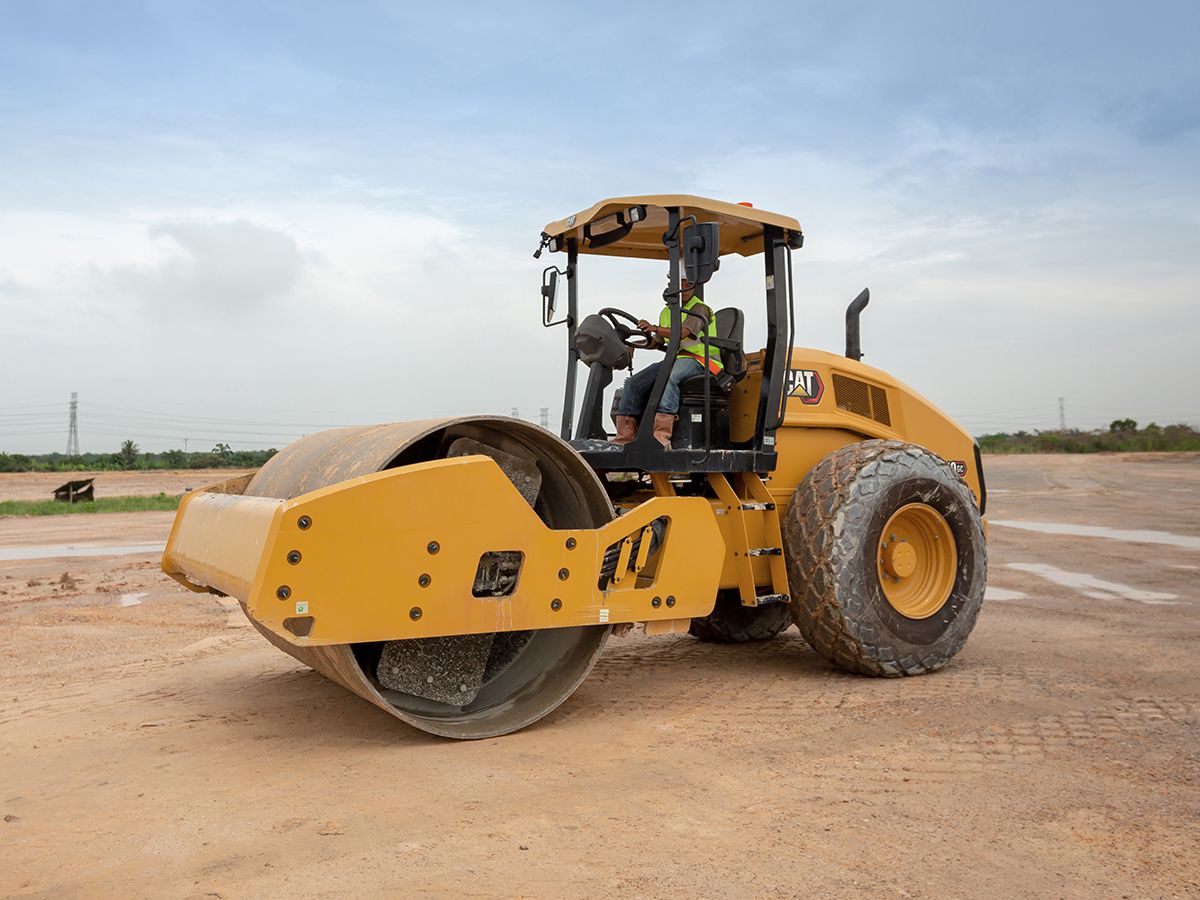

CS10 GC Vibratory Soil Compactor

CS10 GC Vibratory Soil Compactor

The Cat® CS10 GC Vibratory Soil Compactors are ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable vibratory system, exceptional operator comfort and ease of use deliver dependable, economical production with performance that exceeds expectations.

  • Operating Weight - With Cab 23136 lb

  • Compaction Width 84 in

  • Gross Power 122.9 hp

  • Engine Power - ISO 14396 121 hp

Request a quote

Product Specifications

Specifications

Weights

  • Note (1) Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning.

  • Operating Weight - With Cab 23136lb

  • Operating Weight - With ROPS/FOPS Canopy 22796lb

  • Weight - Drum with Cab 12948lb

  • Weight - Drum with ROPS/FOPS Canopy 12853lb

Dimensions

  • Compaction Width 84in

  • Drum Diameter 60.4in

  • Maximum Height 9.9ft

  • Overall Length 18.7ft

  • Overall Width 7.5ft

  • Wheel Base 9.8ft

Engine

  • Bore 3.9in

  • Emissions U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V

  • Engine Model Cat® C3.6

  • Engine Power - ISO 14396 121hp

  • Gross Power 122.9hp

  • Net Power - ISO 9249 112.2hp

  • Net Power - SAE J1349 111.2hp

  • Note (1) Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.

  • Stroke 4.7in

Sustainability

  • Recyclability 97%

Operating Specifications

  • Curb Clearance 19.4in

  • Ground Clearance 20.4in

  • Travel Speed - Maximum 6.8mile/h

  • Turning Radius - Inside Drum Edge 12.7ft

Service Refill Capacities

  • Axle and Final Drives 2.6gal (US)

  • Cooling System 4.9gal (US)

  • DEF Tank 5gal (US)

  • Eccentric Weight Housings (combined) 6.9gal (US)

  • Engine Oil - With Filter 3.1gal (US)

  • Fuel Tank Capacity 56.3gal (US)

  • Hydraulic Tank 6.1gal (US)

Vibratory System

  • Centrifugal Force - Maximum 56200lb

  • Centrifugal Force - Minimum 33500lb

  • Nominal Amplitude - High 0.079in

  • Nominal Amplitude - Low 0.039in

  • Static Linear Load - With Cab 154.1lb/in

  • Static Linear Load - With ROPS/FOPS Canopy 153lb/in

Features

Equipment

Standard Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • ROPS/FOPS Canopy with Handrails, Floor Mat, Interior Rear View Mirror

  • Vinyl Suspension Seat

  • Adjustable Tilting Steering Column

  • High Visibility 76 mm (3 in) Seat Belt

  • 12-volt Power Outlet

  • Horn, Backup Alarm

  • Smooth Drum

  • Pod-Style Eccentric Weight Housings

  • Dual Amplitude, Dual Frequency

  • Auto-vibe Function

  • Rear Adjustable Steel Scraper

  • VisionLink®

  • Remote Flash

  • Remote Troubleshoot

  • Remote Disable

  • Cat® C3.6 Engine

  • Single Propel Pump

  • Fuel Filter, Water Separator, Priming Pump, Water Indicator

  • Radiator/Hydraulic Oil Cooler

  • Dual Braking System

  • Two-Speed Hydrostatic Transmission

  • Limited Slip Differential

  • 12 volt Electrical System

  • 150 ampere Alternator

  • 900 Cold-cranking Amps Battery Capacity

  • Battery Disconnect Switch

  • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level

  • S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant

  • Working Lights (2 Forward, 2 Rear)

Optional Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • ROPS/FOPS Cab with Climate Control, Floor Mat, Exterior Rear View Mirrors

  • Deluxe High-back Air-ride Seat (Cab)

  • Sun/Debris Shields (Canopy)

  • Roll-down Sun Screen (Cab)

  • Interior Rear View Mirror (Cab)

  • Exterior Rear View Mirrors (Canopy)

  • Rear View Camera with Color Touchscreen Display

  • Seat Belt Switch

  • Sound Reduction Kit

  • Removable Shell Kit - Oval or Square Pads

  • MicroVibe

  • Dual Adjustable Steel Scrapers

  • Dual Adjustable Polyurethane Scrapers

  • Measure - Machine Drive Power (MDP)

  • Measure - Compaction Meter Value (CMV)

  • Machine Speed Sensor

  • Transmission Guard

  • High Ambient Temperature Oil Factory Fill

  • Flotation Tread or Lug Tread Tires

  • Upgraded Lighting Package (4 Forward, 4 Rear)

  • Amber Rotating Beacon

  • XT Weight Kit
