MH3022 Wheel Material Handler

MH3022 Wheel Material Handler

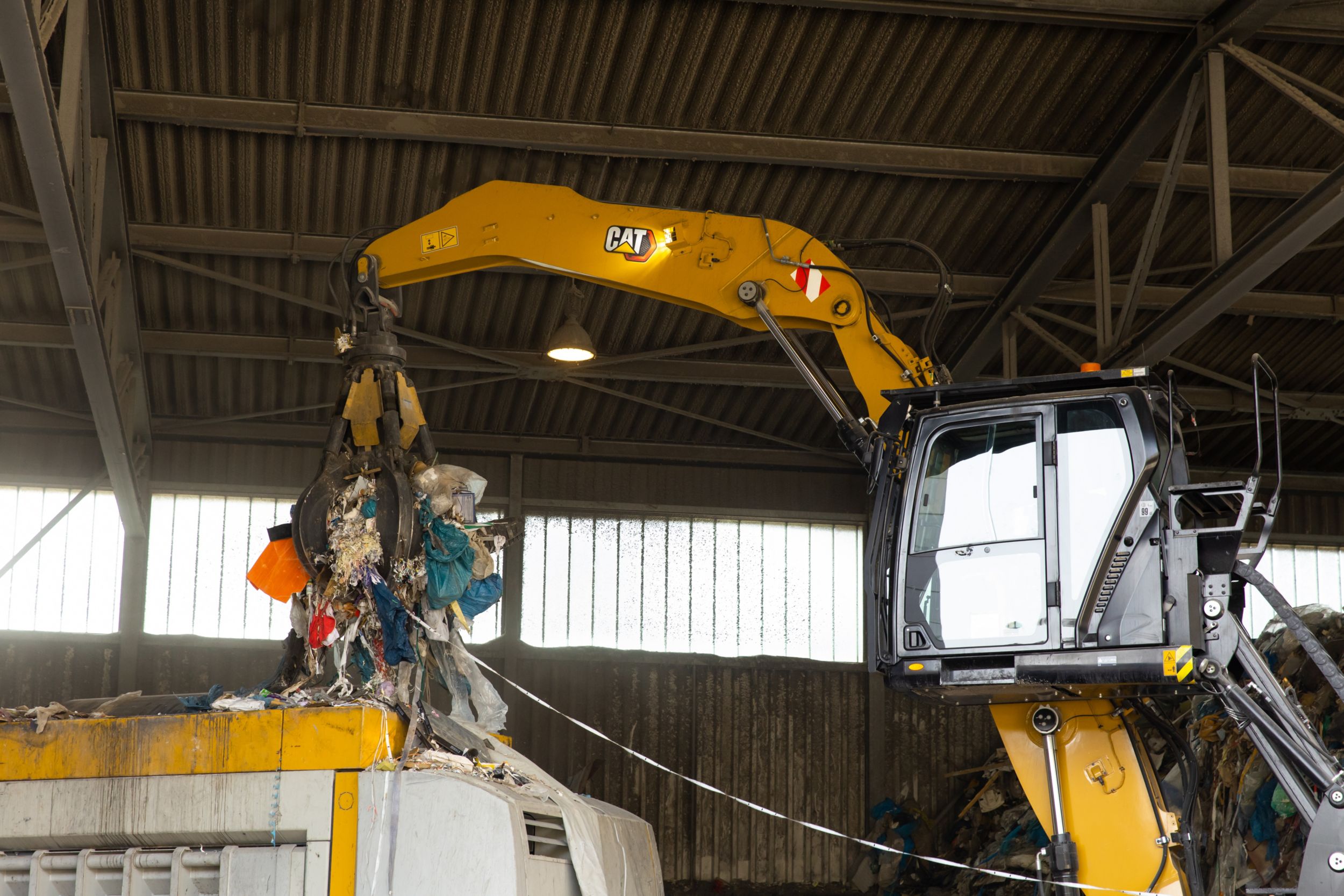

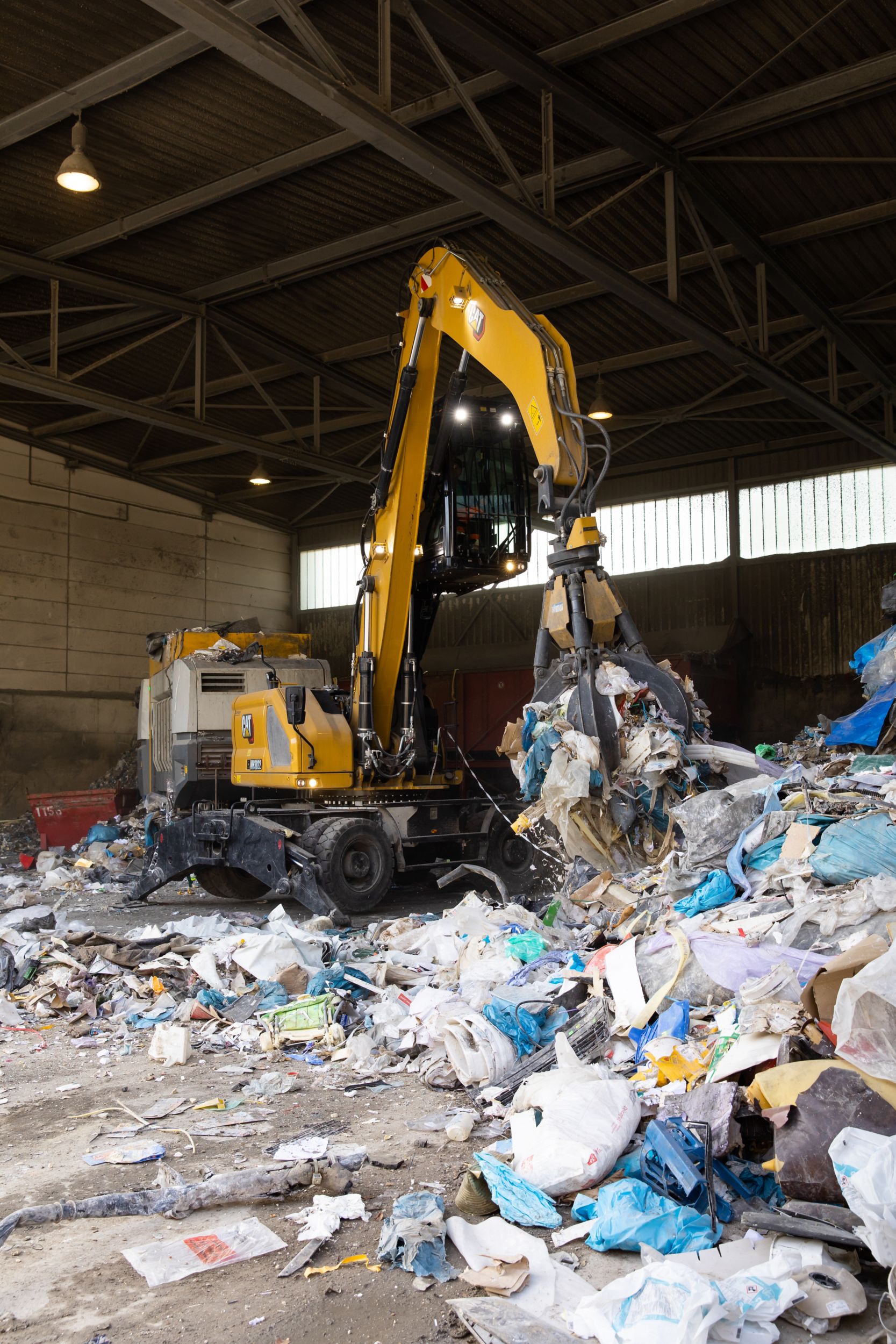

The Cat® MH3022 is a purpose-built material handler designed to deliver strong performance for your toughest waste and scrapyard applications. The MH3022 features simple-to-use technologies, a comfortable cab, and multiple boom and stick options to match your work. These features help create a safe, reliable product to take on the wide variety of challenges you face each day.

  • Engine Model Cat C4.4

  • Operating Weight 54000 lb

  • Maximum Reach 30.4 ft

  • Net Power - ISO 9249 145 hp

Request a quote

Product Specifications

Specifications

Engine

  • Biodiesel Capability Up to B20¹

  • Bore 4.1in

  • Displacement 268.5in³

  • Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

  • Engine Model Cat C4.4

  • Engine Power - ISO 14396 (DIN) 150hp (metric)

  • Engine Power - Maximum - ISO 14396 148hp

  • Net Power - ISO 9249 145hp

  • Net Power - ISO 9249 (DIN) 147hp (metric)

  • Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed. Rated speed 2,000 rpm. Advert

  • Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO

  • Stroke 5in

Weights

  • Note Operating weight includes full fuel tank, operator, 1400 kg (3,100 lb) work tool. Weight varies depending on configuration.

  • Operating Weight 54000lb

Working Ranges

  • Boom MH 5.35 m (17'7")

  • Boom Pin Height 23.4ft

  • Maximum Depth 4.8ft

  • Maximum Height 35.3ft

  • Maximum Reach 30.4ft

  • Minimum Dump Height 10.9ft

  • Stick 4.3 m (14'1") Straight

Transmission

  • Drawbar Pull 28551lb/ft

  • Maximum Gradeability 65%

  • Maximum Travel Speed 12.4mile/h

Hydraulic System

  • Maximum Pressure - Implements 5076psi

  • Maximum Pressure - Swing 5294psi

  • Maximum Pressure - Travel 5076psi

Swing Mechanism

  • Maximum Swing Torque 39553lbf·ft

  • Swing Speed 8r/min

Service Refill Capacities

  • Cooling System 9.5gal (US)

  • Diesel Exhaust Fluid (DEF) Tank 7.9gal (US)

  • Engine Oil 3.4gal (US)

  • Final Drive - Each 0.7gal (US)

  • Fuel Tank Capacity 92.5gal (US)

  • Hydraulic System - Including Tank 91.1gal (US)

  • Hydraulic Tank 40.9gal (US)

  • Powershift Transmission 0.7gal (US)

  • Rear Axle - Housing (Differential) 3.7gal (US)

Dimensions

  • Boom MH 5.35 m (17'7")

  • Cab Height- Lowered 11ft

  • Cab Height-Lowered with OPG 11ft

  • Cab Height-Raised 18.9ft

  • Cab Height-Raised with OPG 18.9ft

  • Counterweight Clearance 4.3ft

  • Ground Clearance 1ft

  • Machine Length 16.2ft

  • Shipping Length 27.2ft

  • Shipping Width 8.3ft

  • Stick 4.3 m (14'1") Straight

  • Tail Swing Radius 8.5ft

  • Undercarriage Length 16.1ft

  • Wheel Base 8.5ft

Air Conditioning System

  • Note (1) The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.05 kg (2.31 lb) of refrigerant which has a CO2 equivalent of 1.502 metric tonnes (1.655 tons).

Features

Equipment

Standard Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • Advanced sound suppressed Tip Over Protective Structure (TOPS) certified cab

  • High-resolution 254 mm (10") LCD touch screen monitor

  • Automatic bi-level air conditioner

  • Jog dial and shortcut keys for monitor control

  • Keyless push-to-start engine control

  • Heated seat with air suspension (Deluxe cab)

  • Heated and cooled seat with automatic adjustable suspension (Premium cab)

  • VisionLink®

  • Remote Flash and Remote Troubleshoot

  • Cat Payload

  • Maintenance-free batteries

  • LED chassis light, left-hand/right-hand boom and stick lights, cab lights

  • Centralized electrical disconnect switch

  • Programmable time delay LED working lights

  • Scheduled Oil Sampling (S·O·S℠) ports

  • Automatic lubrication system for implement and swing system

  • Integrated vehicle health management system

  • Cat C4.4 diesel engine

  • Three selectable modes: Power, Smart, Eco

  • Up to 3000 m (9,840 ft) altitude capability without engine power de-rate

  • Cold start capability -18°C (0°F)

  • 52°C (125°F) high-ambient cooling capacity

  • On-demand electric cooling fans with auto-reverse function

  • Boom and stick lowering control check valves

  • Electronic main control valve

  • Automatic hydraulic oil warm up

  • Heavy lift mode

  • Rear and right-side-view cameras

  • Signal/warning horn

  • Neutral lever (lock out) for all controls

  • Ground-level accessible secondary engine shutoff switch in cab

  • 2D E-fence (Available with MH booms only)

  • Cab Avoidance (Available with MH booms only)

  • Swing Assist

  • All wheel drive

  • Automatic brake/axle lock

  • Creeper speed

  • Electronic swing and travel lock

  • Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force

  • Lockable, oscillating front axle with remote greasing point

  • Two speed hydrostatic transmission

  • Counterweight 3700 kg (8,160 lb)

  • Wide undercarriage 2.55 m (8'4")

Optional Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • 5.26 m (17'3") Variable Angle boom

  • 5.65 m (18'6") One-piece boom

  • 5.35 m (17'7") MH boom

  • 6.4 m (21') MH boom

  • 4.0 m (13'1") Drop Nose stick

  • 4.5 m (14'9") Drop Nose stick

  • 5.0 m (16'5") Drop Nose stick

  • 2.5 m (8'2") Straight stick

  • 2.9 m (9'6") Straight stick

  • 4.3 m (14'1") Straight stick

  • No Stick Configuration

  • Advanced Cab Filtration

  • Fixed one-piece laminated windshield (P5A glass)

  • Fixed two-piece laminated windshield (P8B glass)

  • Operator Protective Guards (OPG)

  • Waste cooling system

  • 360° visibility

  • Inspection lighting

  • Rotating beacon on cab

  • 10.00-20 16 PR, dual tires

  • 10.00-20, dual, solid rubber tires

  • Push Blade

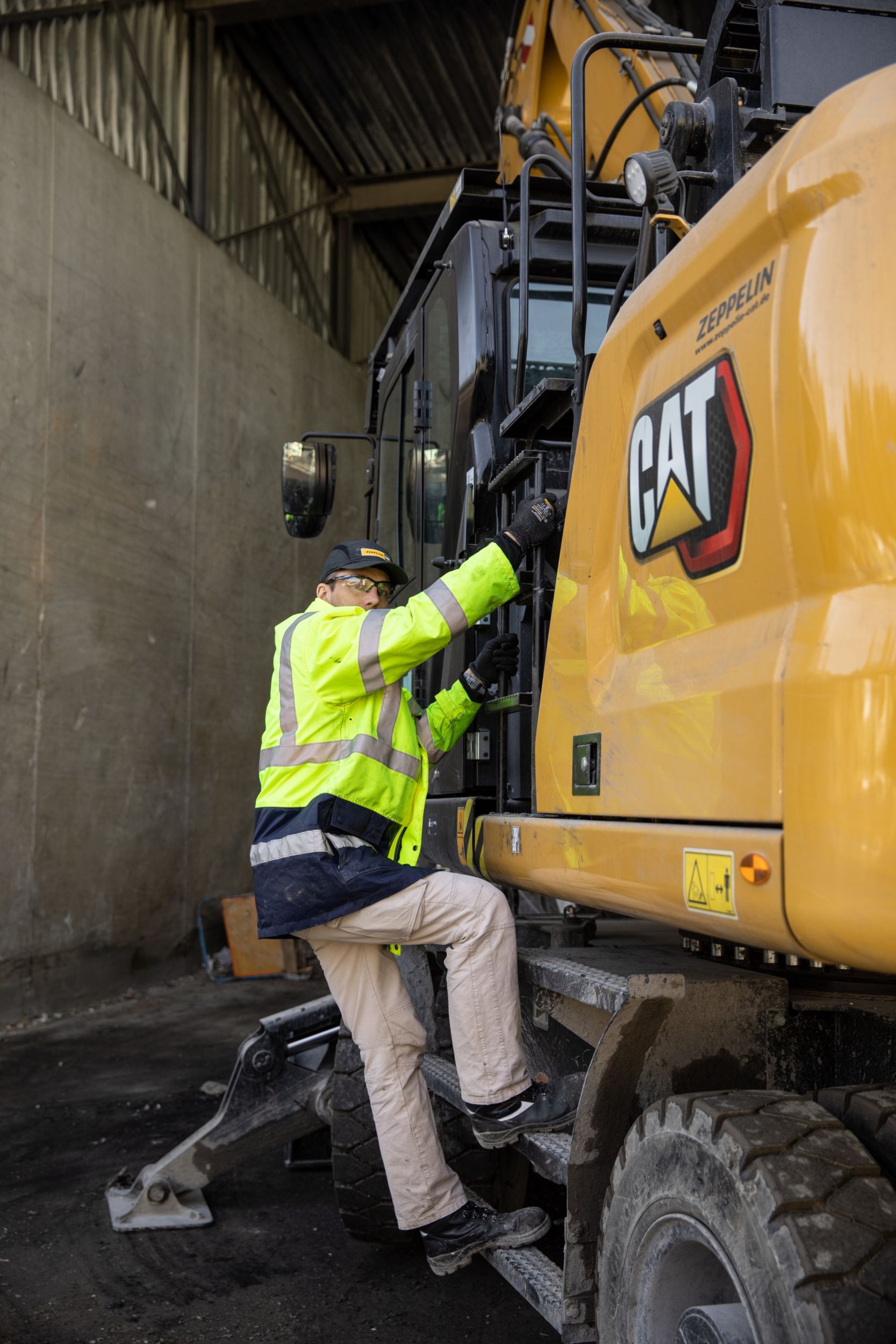

  • Rear and front end steps
