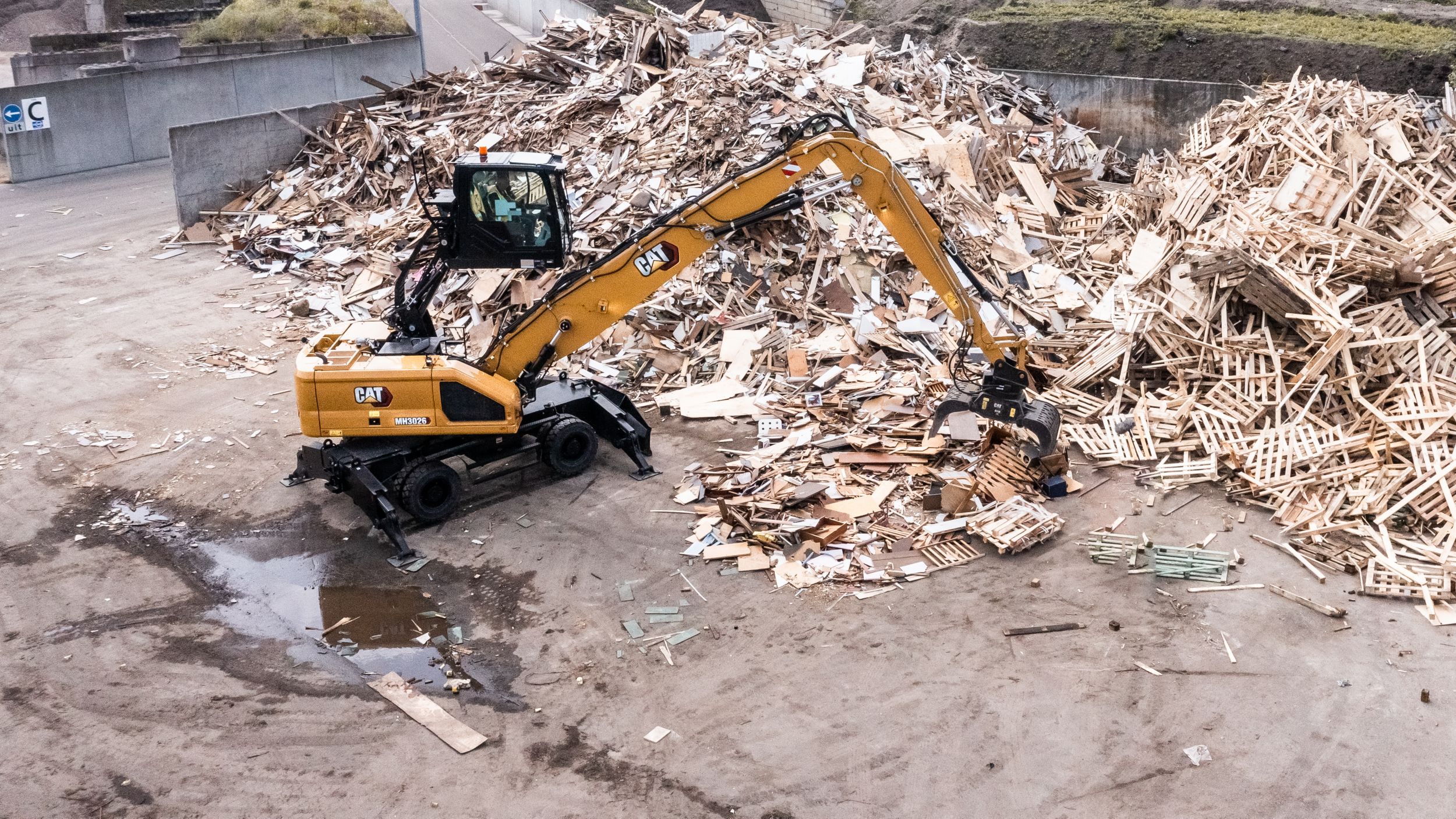

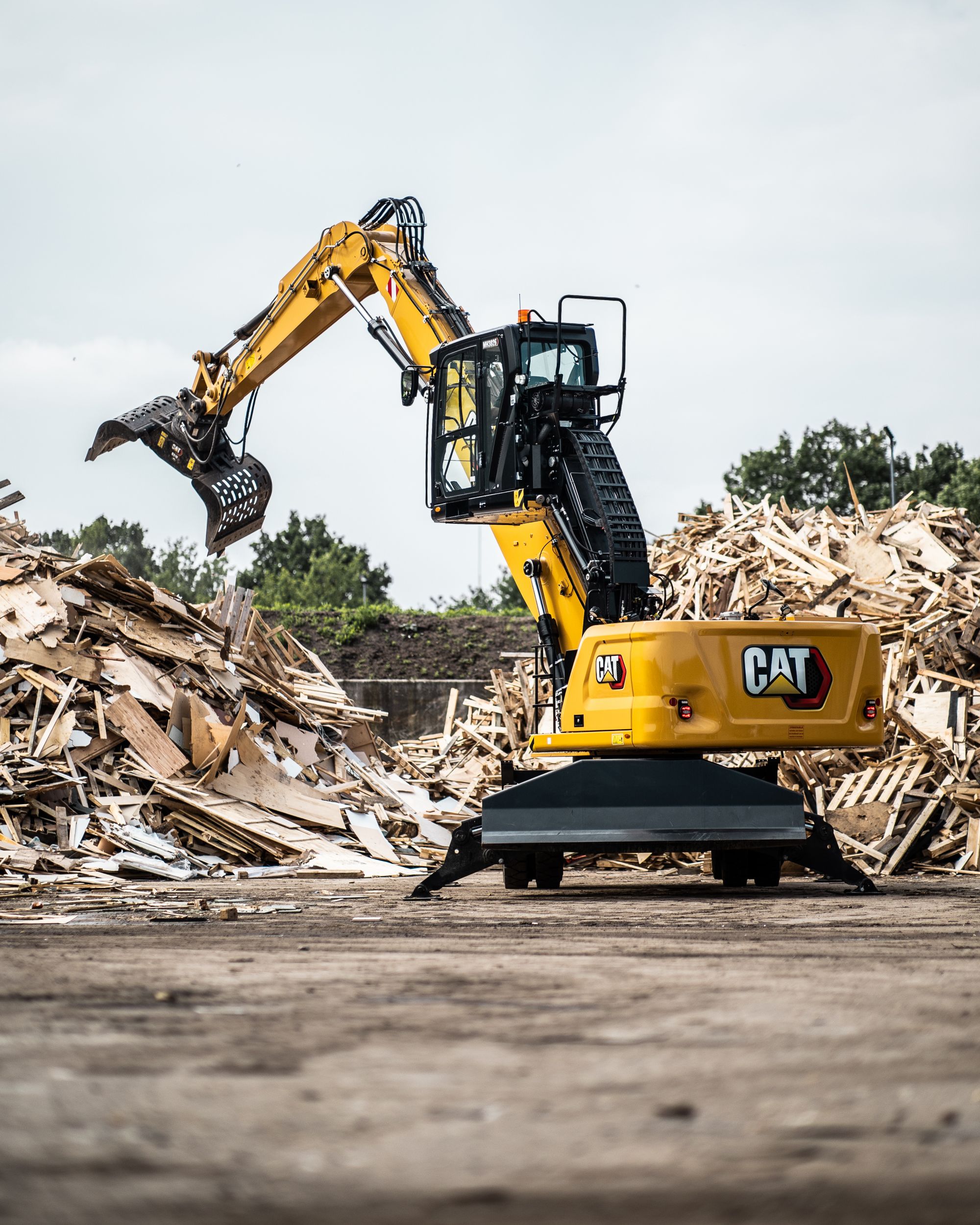

MH3026 Wheel Material Handler

MH3026 Wheel Material Handler

We know when it comes to material handling equipment, your success depends on productivity and low operating costs. The Cat® MH3026 has simple-to-use technologies, a comfortable cab, and multiple machine options to match your work. These features help create a safe, reliable product to take on the wide variety of challenges you face each day in the toughest material handling applications.

  • Engine Model Cat C7.1

  • Operating Weight 64370 lb

  • Maximum Reach 42.7 ft

  • Net Power - ISO 9249 171 hp

Request a quote

Product Specifications

Specifications

Engine

  • Biodiesel Capability Up to B20¹

  • Bore 4.1in

  • Displacement 427.8in³

  • Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

  • Engine Model Cat C7.1

  • Engine Power - ISO 14396 (DIN) 176hp (metric)

  • Engine Power - Maximum - ISO 14396 174hp

  • Net Power - ISO 9249 171hp

  • Net Power - ISO 9249 (DIN) 174hp (metric)

  • Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed. Rated speed 2,200 rpm. Advert

  • Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO

  • Stroke 5.3in

Weights

  • Note Operating weight includes full fuel tank, operator, 1400 kg (3,086 lb) work tool. Weight varies depending on configuration.

  • Operating Weight 64370lb

Working Ranges

  • Boom MH 7.5 m (24'7")

  • Boom Pin Height 30.5ft

  • Maximum Depth 9.7ft

  • Maximum Height 46.8ft

  • Maximum Reach 42.7ft

  • Minimum Dump Height 12.5ft

  • Stick 6.0 m (19'8") Drop Nose

Transmission

  • Drawbar Pull 28551lb/ft

  • Maximum Gradeability 52%

  • Maximum Travel Speed 12.4mile/h

Hydraulic System

  • Maximum Pressure - Implements 5076psi

  • Maximum Pressure - Swing 5656psi

  • Maximum Pressure - Travel 5076psi

Swing Mechanism

  • Maximum Swing Torque 51800lbf·ft

  • Swing Speed 8r/min

Service Refill Capacities

  • Cooling System 10.6gal (US)

  • Diesel Exhaust Fluid (DEF) Tank 7.9gal (US)

  • Engine Oil 5.3gal (US)

  • Final Drive - Each 0.7gal (US)

  • Fuel Tank Capacity 109.9gal (US)

  • Hydraulic System - Including Tank 91.1gal (US)

  • Hydraulic Tank 55.2gal (US)

  • Powershift Transmission 0.7gal (US)

  • Rear Axle - Housing (Differential) 3.7gal (US)

Dimensions

  • Boom MH 7.5 m (24'7")

  • Cab Height- Lowered 11ft

  • Cab Height-Lowered with OPG 11.1ft

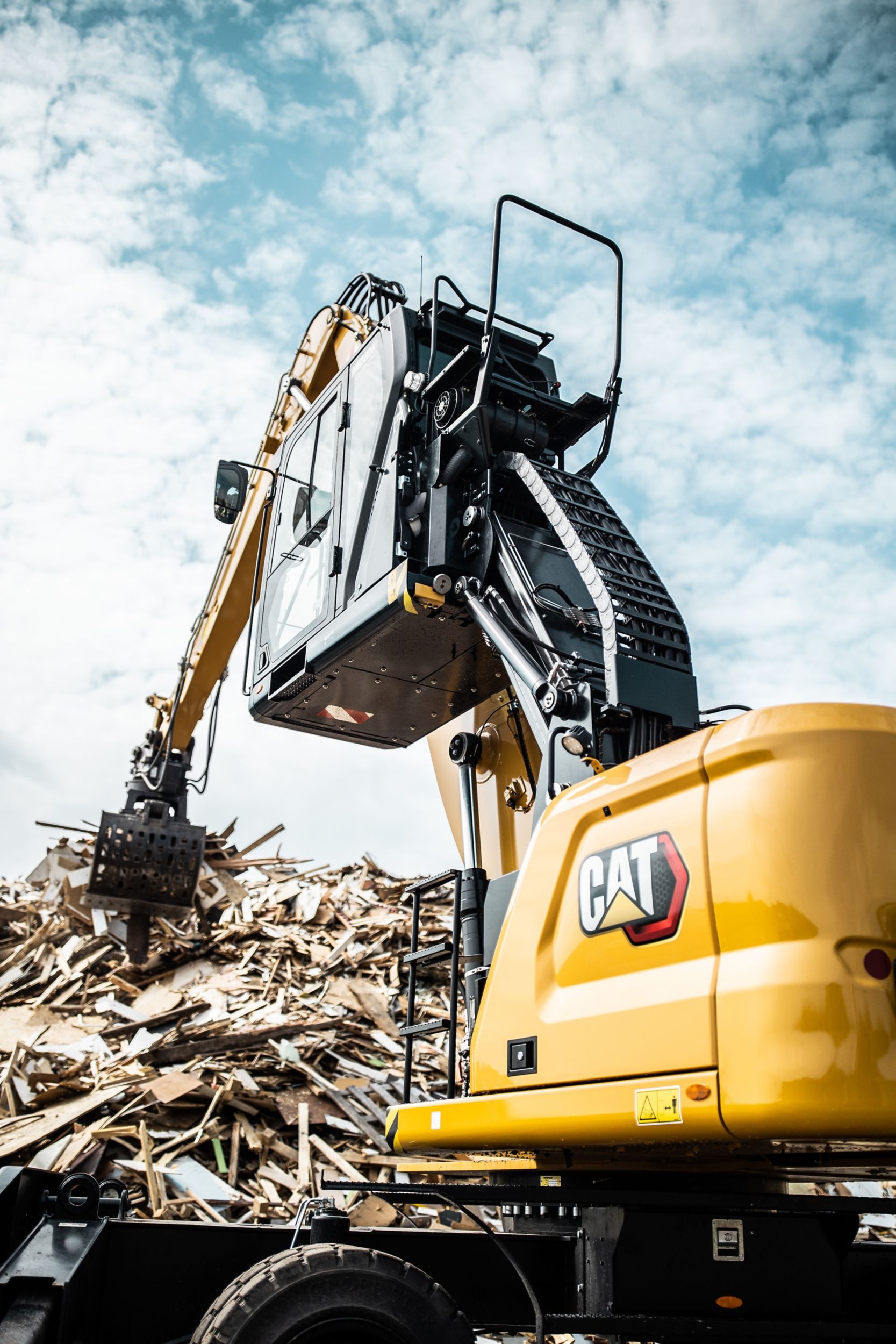

  • Cab Height-Raised 18.9ft

  • Cab Height-Raised with OPG 18.9ft

  • Counterweight Clearance 4.3ft

  • Ground Clearance 0.8ft

  • Machine Length 17.9ft

  • Shipping Length 35.1ft

  • Shipping Width 9.8ft

  • Stick 6.0 m (19'8") Drop Nose

  • Tail Swing Radius 9.2ft

  • Undercarriage Length 17.4ft

  • Wheel Base 9ft

Air Conditioning System

  • Note (1) The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.05 kg (2.31 lb) of refrigerant which has a CO2 equivalent of 1.502 metric tonnes (1.655 tons).

Features

Equipment

Standard Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • Advanced sound-suppressed Tip Over Protective Structure (TOPS) certified cab

  • High-resolution 254 mm (10") LCD touch screen monitor

  • Automatic bi-level air conditioner

  • Jog dial and shortcut keys for monitor control

  • Keyless push-to-start engine control

  • Heated seat with air suspension (Deluxe cab)

  • Heated and cooled seat with automatic adjustable suspension (Premium cab)

  • VisionLink®

  • Remote Flash and Remote Troubleshoot

  • Cat Payload

  • Maintenance-free batteries

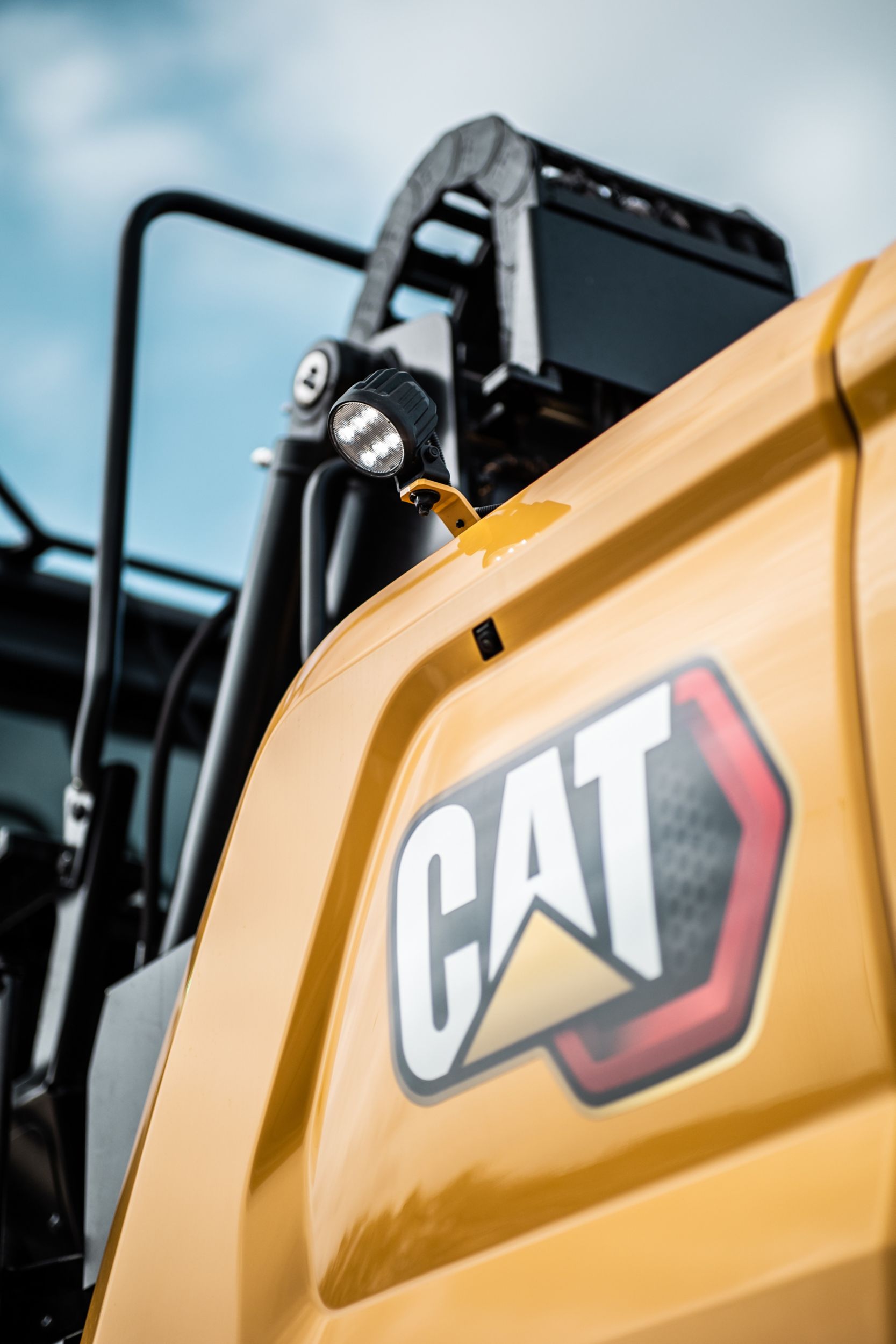

  • LED chassis light, left-hand/right-hand boom and stick lights, cab lights -1800 lumens

  • Centralized electrical disconnect switch

  • Programmable time delay LED working lights

  • Scheduled Oil Sampling (S·O·S℠) ports

  • Automatic lubrication system for implement and swing system

  • Integrated vehicle health management system

  • Cat C7.1 diesel engine

  • Three selectable modes: Power, Smart, Eco

  • Up to 3000 m (9,840 ft) altitude capability without engine power de-rate

  • Cold start capability -18°C (0°F)

  • 52°C (125°F) high-ambient cooling capability

  • Electric fuel priming pump

  • On-demand electric cooling fans with auto-reverse function

  • Boom and stick lowering control check valves

  • Electronic main control valve

  • Automatic hydraulic oil warm up

  • Heavy lift mode

  • Rear and right-side-view cameras

  • Signal/warning horn

  • Neutral lever (lock out) for all controls

  • Ground-level accessible secondary engine shutoff switch in cab

  • 2D E-fence

  • Cab Avoidance

  • Swing Assist

  • All wheel drive

  • Automatic brake/axle lock

  • Creeper speed

  • Electronic swing and travel lock

  • Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force

  • Lockable, oscillating front axle with remote greasing point

  • Two speed hydrostatic transmission

  • Counterweight 5700 kg (12,550 lb)

Optional Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • 6.9 m (22'8") Straight MH boom

  • 7.5 m (24'7") Straight MH boom

  • 5.0 m (16'5") Straight stick

  • 5.5 (18'1) Drop Nose stick

  • 6.0 m (19'8") Drop Nose stick

  • Advanced cab filtration

  • Fixed one-piece laminated windshield (P5A glass)

  • Fixed two-piece laminated windshield (P8B glass)

  • Operator Protective Guards (OPG)

  • Waste cooling system

  • 360° visibility

  • Rotating beacon on cab

  • 2.99 m (9'10") wide undercarriage

  • 2.99 m (9'10") wide undercarriage with push blade

  • 10.00-20, dual, solid rubber tires

  • 11.00-20 16 PR, dual tires

  • Side, rear, or front end access steps
