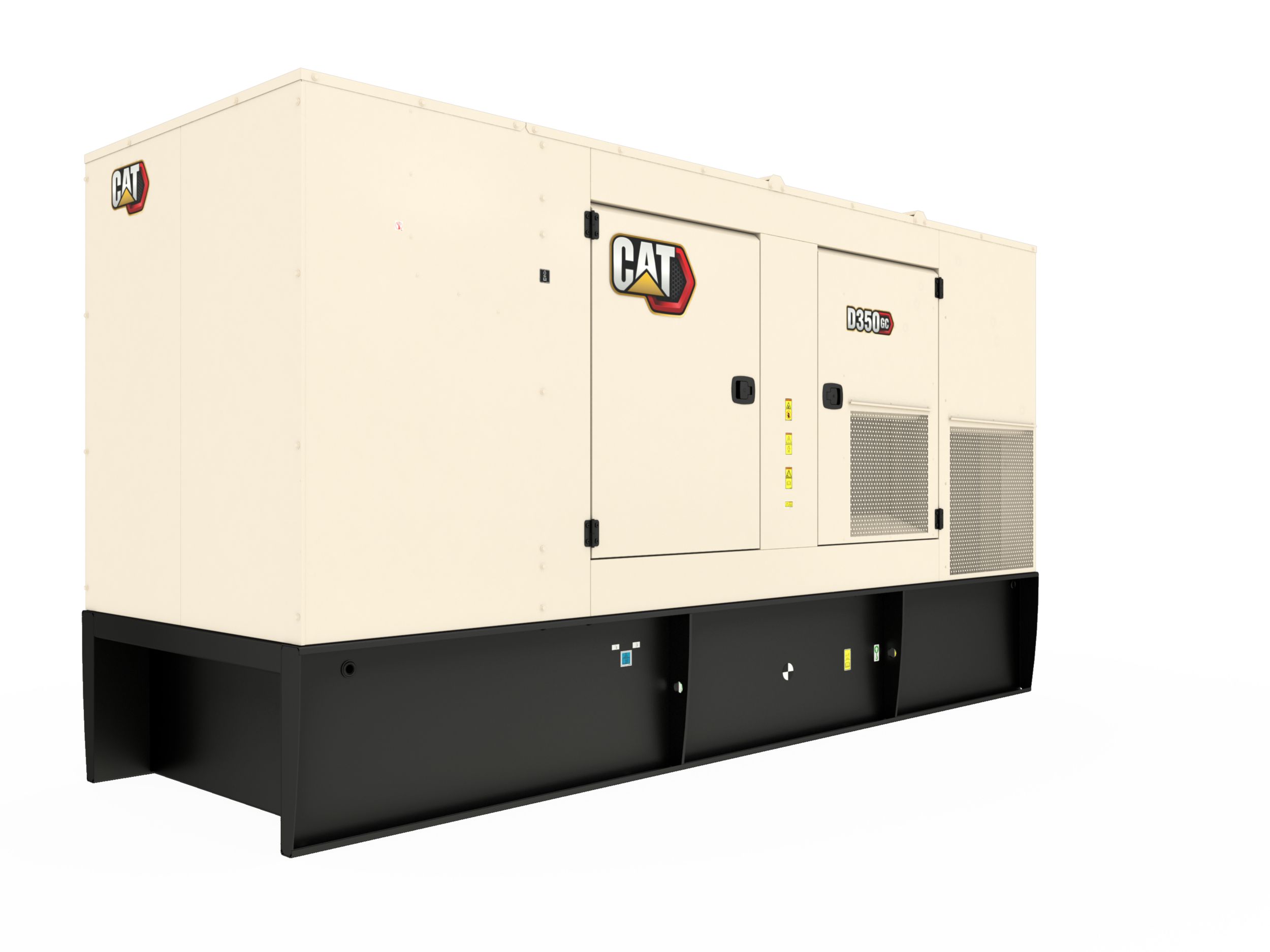

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Maximum Rating 350 ekW
Minimum Rating 350 ekW
Emissions/Fuel Strategy EPA Stationary Emergency
Voltage 480 to 600 Volts
Duty Cycle Standby
Emissions/Fuel Strategy EPA Stationary Emergency
Frequency 60 Hz
Maximum Rating 350 ekW
Minimum Rating 350 ekW
Speed 1800 rpm
Voltage 480 to 600 Volts
Aspiration Turbocharged Air-to-Air Aftercooled
Bore 5.1in
Compression Ratio 16.3:1
Displacement 763in³
Engine Model Cat® C13 In-line 6, 4-cycle diesel
Fuel System MEUI
Governor Type ADEM™A4
Stroke 6.2in
Dry Weight - Genset (maximum) 7255.4lb
Dry Weight - Genset (minimum) 6929.1lb
Height - Maximum 96.7in
Height - Minimum 80.3in
Length - Maximum 182.8in
Width - Maximum 64.2in
Turbocharger
Aftercooler core
Air cleaner - Non canister, disposable
GCCP 1.2
Radiator sight gauge
Blower fan and fan drive with guards
Radiator, package mounted
Coolant drain valve
Thermostats and housing
Jacket water pump, gear driven, centrifugal
Exhaust manifold - dry
Integral tank base, 24 hours, UL142
Engine fuel transfer pump
Primary fuel filter w/integral water separator and secondary filter, spin on
Fuel cooler
Fuel priming pump
Complete system designed & built at ISO 9001:2000 certified facilities
All protective devices and control functions simulated and checked
Factory tested to design specifications at full load conditions
6 Leads
Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
Terminal box, IP22 RHS facing, bottom cable entry
Standard winding protection for non-harsh environments with relative humidity ? 95%
IP23 Protection
Voltage regulator (single phase sensing)
Easy access to AVR and terminals
Insulation system, Class H
Cat electronic governor (ADEM A4)
Oil drain with valve
Lubricating oil, CK-4 (10W-30)
Oil filter, spin on
Oil cooler
Oil filler and dipstick
Fumes disposal to front of radiator
Shallow oil pan
Captive linear vibration isolators between base and engine-generator
Includes lifting provisions and termination points for coolant and lube oil drain lines
Safety shutoff - High water temperature
Safety shutoff - Low oil pressure
Safety shutoff - Overspeed
24-volt electric starting motor
24V, 45 Amp Charging alternator
Vibration damper
Parts book
Lifting eyes
Air cleaner (Non canister disposable)
Wide Base - Skid
Overfill prevention valve
5 Gallon Spill Containment
Fuel tank pill pipe & lockable cap
Integral tank base, 24 hours, UL142
Audio & visual fuel alarm (@90% fuel level)
1200A LS/I
800A LSI
400A LS/I
Auxiliary contacts
600A LS/I
600A LSI
1200A LSI
400A LSI
800A LS/I
Volt free contacts
Ground fault relay
Audible alarm Gp
Twist release, Red button emergency stop
20A GFCI (Ground Fault Circuit Interrupter)
100A Load center
Product link remote monitoring hardware
16 -light NFPA 99/110 Annunciator
E-Stop
Sound attenuated Level 2 enclosure (White)
AC & DC Source lights
Flexible exhaust connection
8" Muffler - 25 dBA attenuation
Manifold and turbocharger guards
Space heater
Permanent magnet excitation (PMG) generator
Battery charger (UL Certified)
Jacket water heater
Standard battery set: 1000 CCA, 90 amp/hr.
Oversize battery set, 1400 CCA, 200 amp/hr
Circuit breaker (IEC) Auxiliary contacts
4 Pole (IEC-100% rated) Circuit breaker - Motorised
Shunt trip for IEC circuit breaker
Extended Service Coverage
UL2200 Certification
CSA Certification
Generator test report
Jacket water heater
Battery disconnect switch
